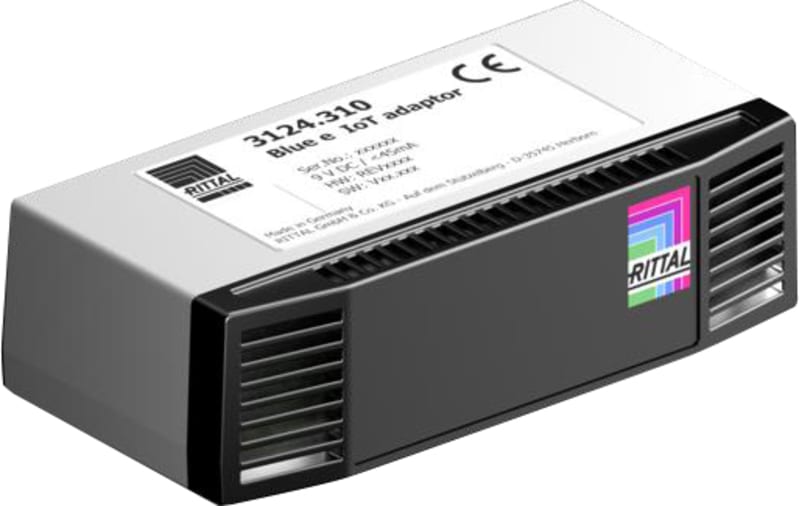

Rittal 3124310 SK Blue e IoT Adapter for Blue e Cooling Units
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3124310 is an SK Blue e IoT adapter for networking Blue e cooling units with the e-comfortcontroller. It measures 80 x 30 x 40 mm (W x H x D) and includes one Modbus RTU interface, one cooling-unit interface, mounting bracket and Sub-D to RJ11 connecting cables. Plastic housing (front RAL 9005, housing RAL 7035), IP30, operating range 0 to 55 °C.
Technical Specifications
- Manufacturer part number (MPN)
- 3124310 EAN / GTIN: 4028177939059 Sales unit: pcs Model designation: SK 3124.310 Product type: Blue e IoT Adapter material: Plastic; Front: Smooth; Housing: Textured Color: Front: RAL 9005; Housing: RAL 7035 Supply includes: Blue e IoT Adapter; Installation and Short User's Guide; Mounting Bracket; Mounting accessories; Sub-D on RJ11 connecting cables, length 150 mm; Mounting clips for securing top-hat rails Interfaces: 1 x Modbus RTU; 1 x cooling unit interface Suitable for Model No.: 3303.5/6xx; 3304.5/6xx; 3305.5/6xx; 3328.5/6xx; 3329.5/6xx; 3332.5/6xx; 3361.5/6xx; 3366.5/6xx; 3377.5/6xx; 3307.7xx; 3310.7xx; 3382.5/6xx; 3359.5/6xx; 3383.5/6xx; 3384.5/6xx; 3385.5/6xx; 3386.5/6xx; 3387.5/6xx Dimensions: Width: 80 mm; Height: 30 mm; Depth: 40 mm Operating temperature range: 0 °C...55 °C; 32 °F...131 °F Protection category IP to IEC 60 529: IP 30 Packaging unit: 1 pc(s). Net weight: 0.18 kg Gross weight: 0.2 kg Customs tariff number: 85176200 ETIM 9: EC001099 ETIM 8: EC001099 ECLASS 8.0: 27143136 Bus system KNX: No Bus system KNX-RF (Radio Frequency): No Bus system radio frequency: No Bus system LON: No Bus system Powernet: No Remote operation possible: No Ethernet: No With bus connection: Yes LED controlling: No With LED indication: Yes Local operation/hand operation: No Number of inputs: 1 Suitable for C-load: No With switch function: No External signal voltage necessary: Yes Different phases connectable: No Type of current: DC Country of origin: Germany
Standards & Compliance
- HS Code
- 8523.49
Cross References
- EAN 4028177939059
- SAP 1200596616
- Code 82971989
Product Documentation
