Rittal

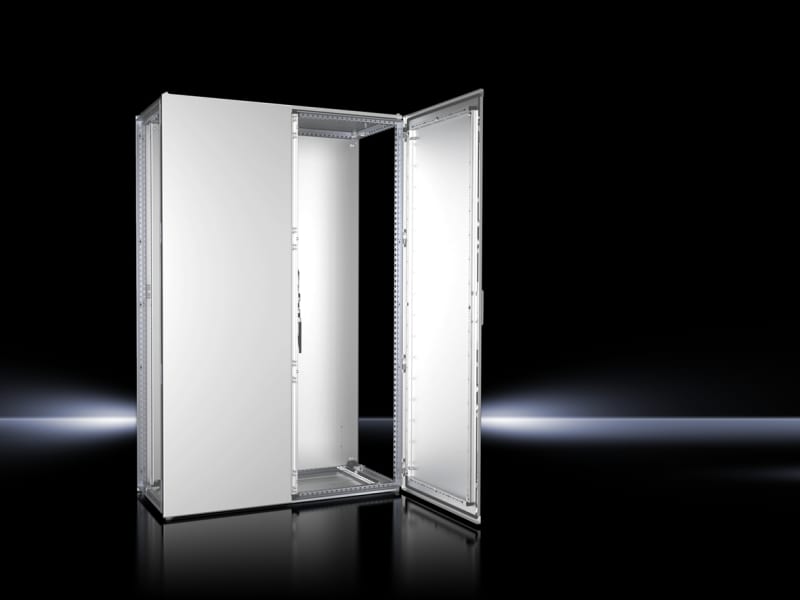

Floor-Standing Enclosure VX rf 800X1800X400
Part number8454000EAN / GTIN4028177920149HS code9403.20
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8454000 Floor-Standing Enclosure VX stainless with mounting plate.
Technical Specifications
- Manufacturer part number (MPN)
- 8454000
- EAN / GTIN
- 4028177920149
- Sales unit
- pcs
- Model designation
- VX 8454.000
- Material
- Enclosure frame: Stainless steel 1.4301 (AISI 304)
- 1.5 mm; Roof
- Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed; Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed; Rear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed; Gland plates: Stainless steel 1.4301 (AISI 304)
- 1.5 mm; Mounting plate
- Sheet steel, 3.0 mm
- Surface finish
- Enclosure frame and gland plates: Uncoated; Door, roof and rear panel: Exterior brushed, grain size 400; Mounting plate: Zinc-plated
- Supply includes
- Enclosure frame; Door(s); Door hinged on the right, may be swapped to the left; Roof plate; Gland plates; Rear panel; Mounting plate; Lock: 3 mm double-bit; 2 punched rails 18 x 39 mm
- Dimensions
- Width: 800 mm; Height: 1,800 mm; Depth: 400 mm
- Dimensions mounting plate (W x H)
- 699 mm x 1,696 mm
- Protection category to IEC 60 529
- IP 55
- Protection category NEMA
- NEMA 1; NEMA 12
- Type rating to UL 50E
- Type 1; Type 12
- IK Code
- IK10
- Basic material
- Stainless steel 1.4301 (AISI 304)
- Net weight
- 107.1 kg
- Gross weight
- 109.8 kg
- PCF per pack (cradle-to-gate)
- 337.64
- Customs tariff number
- 94032080
- ETIM 9
- EC000261
- ECLASS 8.0
- 27180101
- Colour
- Stainless steel
- Width
- 800 mm
- Height
- 1800 mm
- Depth
- 400 mm
- RAL-number
- 7035
- With mounting plate
- Yes
- Number of doors
- 1
- Number of locks
- 1
- Suitable for wall mounting
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- Yes
- Material quality
- Stainless steel 304 (V2A)
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- Yes
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- Yes
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- No
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- No
- Pole fastening
- No
- Suitable for outdoor installation
- Yes
- Max. permitted load of the enclosure according to IEC 62208
- 15000 N
- Max. permitted load of the door(s) according to IEC 62208
- 900 N
- Floor standing wall model
- Yes
- Freestanding
- Yes
- Corner model
- Yes
- Intermediate mounting
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177920149
- SAP 1200227669
- Code 82171669
Product Documentation
Document preview: Rittal 8454000 — Data Sheet (OEM)
More from Rittal
Rittal
VX IT Side panel HD 2000*1200
5301254
Rittal

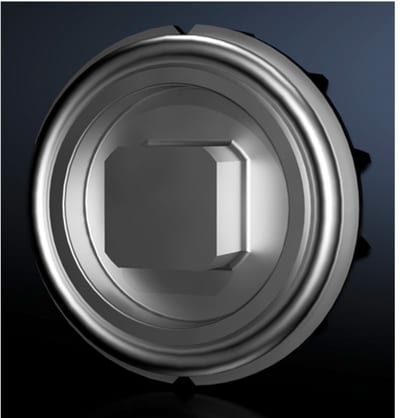

Rittal VX Lock Insert, Type G, 8 mm Square, Die-Cast Zinc
8618301
Rittal
App.adapter CB 250A 690V o
9345600
Rittal
Mounting plate KX 175X485
1565800
Rittal
Segma flexible cable conduit TSR12 1M
PW25029
Rittal
Compact enclosure AX 1000X1400X400
1115000
Rittal
Mounting plate KX 125X385 (1575800)
Rittal
Mounting Plate M.Screws 220X150
9549000
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 8454000?
- 8454000 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 8454000.
- What is the HS code for 8454000?
- The customs tariff (HS) code for 8454000 is 9403.20.
- Who manufactures 8454000?
- 8454000 is a Rittal product in the Enclosures range.
- Is a datasheet available for 8454000?
- Yes — the 8454000 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 8454000?
- The minimum order quantity is 1.
- Is 8454000 available?
- Yes — 8454000 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
