Rittal
Sidewall VX 1200X500 2 pcs
Part number8115245EAN / GTIN4028177827516HS code9403.99
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

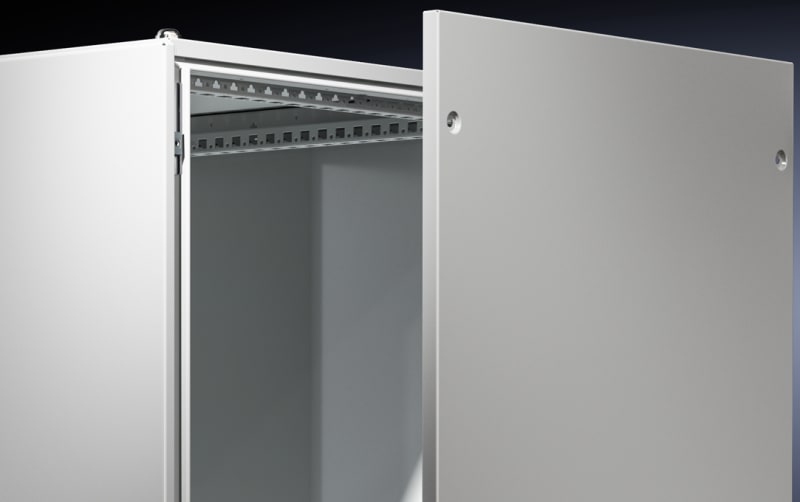

Rittal 8115245 Side Wall VX.
Technical Specifications
- Manufacturer part number (MPN)
- 8115245
- EAN / GTIN
- 4028177827516
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Model designation
- VX 8115.245
- Product type
- Side panel, screw-fastened, sheet
- Material
- Sheet steel, 1.5 mm
- Surface finish
- Dipcoat-primed, powder-coated on the outside
- Colour
- RAL 7035
- Supply includes
- Assembly parts
- To fit
- Enclosure type: VX; Height: = 1,200 mm; Depth: = 500 mm
- IP protection category to IEC 60 529
- IP 55
- Type rating to UL 50E
- Type 1; Type 12
- Basic material
- Sheet steel
- Net weight
- 14.54 kg
- Gross weight
- 14.8 kg
- PCF per pack (cradle-to-gate)
- 46.08 kg CO2 eq (Cat B)
- Note on PCF category
- Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
- Customs tariff number
- 94039910
- ETIM 9
- EC002524
- ECLASS 8.0
- 27182101
- Approvals
- UL + C-UL (listed)
- Suitable as side panel
- Yes
- Suitable as rear panel
- No
- Suitable for enclosure building depth
- 500 mm
- Height
- 1200 mm
- Surface finishing
- Powder coating
- RAL-number
- 7035
- With cable entry
- No
- With lock
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 4028177827516
- SAP 1200107153
- Code 81963672
Product Documentation
Document preview: Rittal 8115245 — Data Sheet (OEM)
More from Rittal
Rittal
VX IT empty 600X2000X800
5330190
Rittal
VX IT std 600X2000X600 vent
5329111
Rittal
Komfortgrep VX ASSA RAL 7035
8618270
Rittal

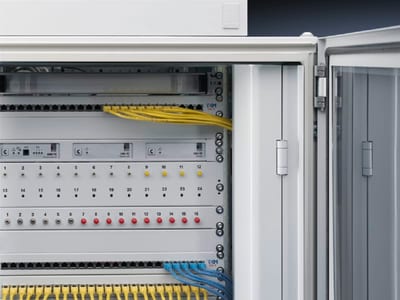

VX IT Air control plate 800X2000 dyn
5302005
Rittal

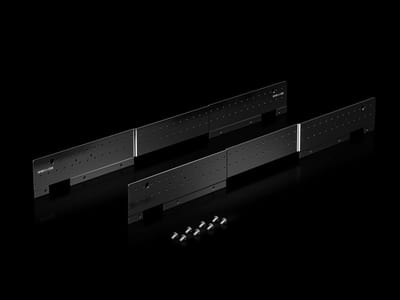

VX IT Depth Stagstd B> 600 D = 1000
5302111
Rittal
Rittal VX Base/Plinth Trim Panel with Brush 100 x 100 mm
8620094
Rittal

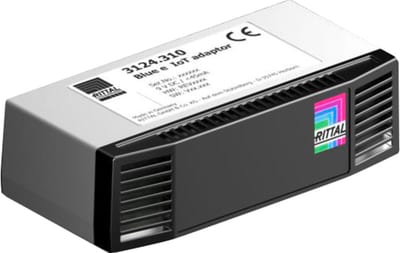

Rittal 3124310 SK Blue e IoT Adapter for Blue e Cooling Units
Rittal

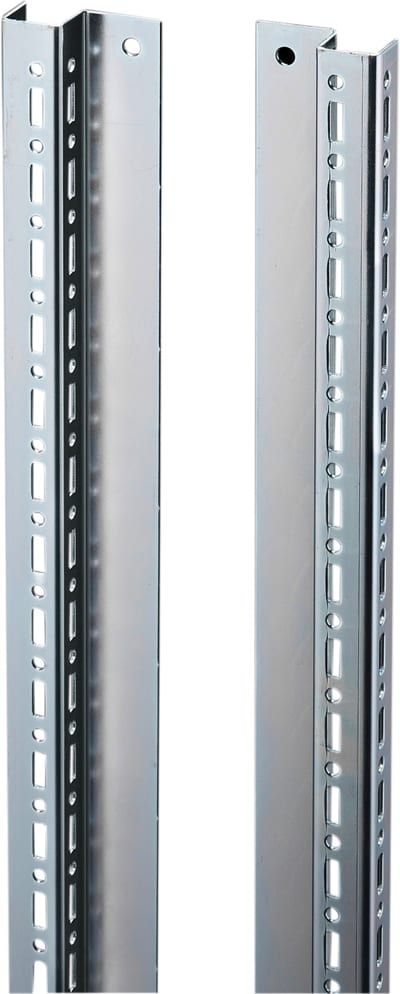

Rails f inner utbuilding. CM/CL (5001051)
