Rittal

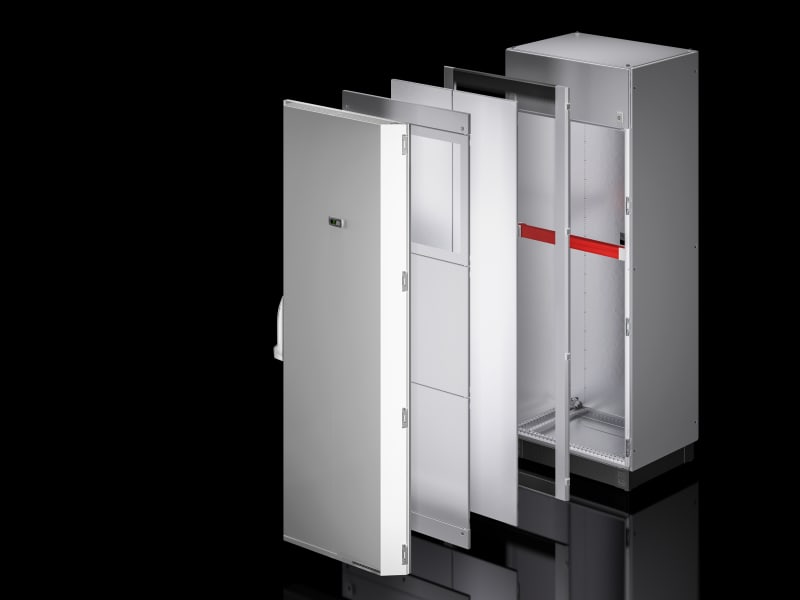

VX IT aluminium-lacquered door
Part number5301423EAN / GTIN4028177955028HS code9403.99
Enclosures
Enclosure Doors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 5301423 Glass door in aluminium for VX IT, 800x2000 mm, RAL 9005.
Technical Specifications
- Manufacturer part number (MPN)
- 5301423
- EAN / GTIN
- 4028177955028
- Sales unit
- pcs
- Model designation
- VX 5301.423
- Product type
- Glazed aluminium door, one-piece
- Material
- Frame: Extruded aluminium section; Vertical extrusion: Aluminium, anodised; Horizontal extrusion: Aluminium, spray finished; Viewing window: Single-pane safety glass, 3 mm
- Colour
- Comfort handle VX, hinges, horizontal extrusion: RAL 9005; Vertical profile: silver coloured
- Supply includes
- Door with comfort handle VX for semi-cylinders with security lock; 3524 E; 3 x 180° hinges, fitted; Assembly parts
- Assembly instruction
- For a door opening angle of 180° when baying, a 180° baying hinge is required
- IP protection category to IEC 60 529
- IP 55
- To fit
- Enclosure type: VX IT; Width: = 800 mm; Height: = 2,000 mm
- Net weight
- 16.142 kg
- Gross weight
- 17.2 kg
- PCF per pack (cradle-to-gate)
- 65.5 kg CO2 eq (Cat B)
- Note on PCF category
- Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
- Customs tariff number
- 94039910
- ETIM 9
- EC000747
- ECLASS 8.0
- 27182204
- Width
- 800 mm
- Model
- Lock door
- Height
- 2000 mm
- EMC-version
- No
- Version as glazed door
- Yes
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 4028177955028
- SAP 1200493054
- Code 82691161
Product Documentation
Document preview: Rittal 5301423 — Data Sheet (OEM)
More from Rittal
Rittal
VX IT Gliderail for HD 2HE 525mm
5302032
Rittal
Plinth VX incl. front/rear panel 200X1600
8660026
Rittal
System chassis VX in 23X64 300
8617100
Rittal
PDU metered+ 16A/3P 42XC13
7979542
Rittal

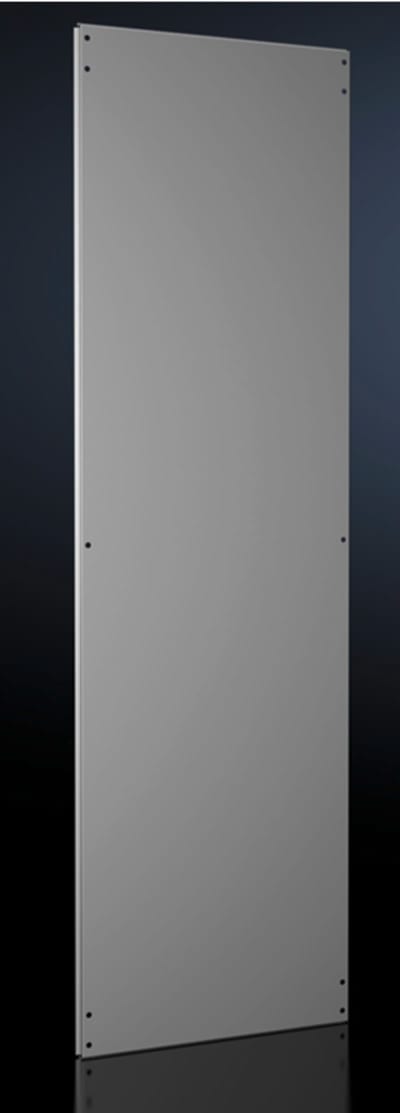

Skilewall VX 1800X600
