VX IT Flange Plate-module 800X237,5 moh (5301333)
Pricing
Request a quote
We reply within 24 hours
Product Description

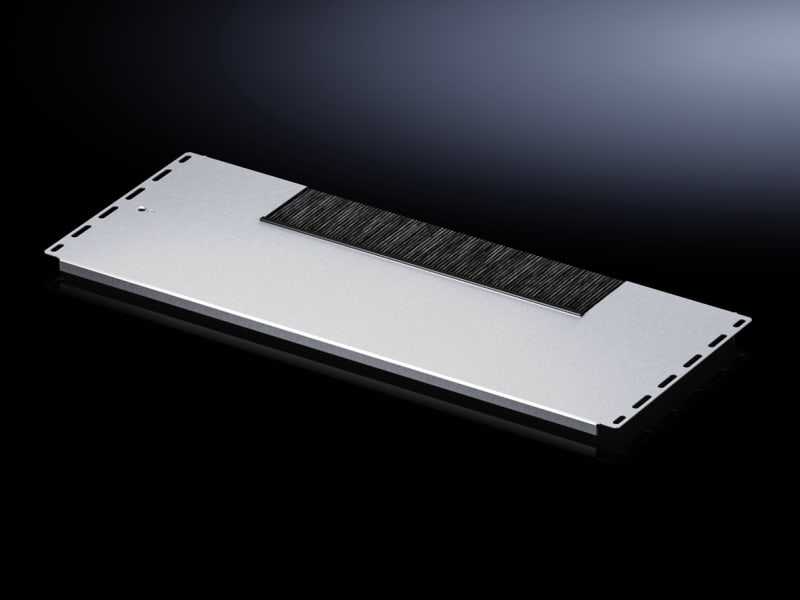

Rittal 5301333 Manufacturer description: VX IT gland plate module with brush strip, for width 800 mm, W x D; 600 x 237.5 mm, one-piece, sheet steel. VX IT Flange Plate-module with brush strip, WxD 800x237,5 mm, in one piece steel plate.
Technical Specifications
- Manufacturer part number (MPN)
- 5301333
- EAN / GTIN
- 4028177950856
- Sales unit
- pcs
- Model designation
- VX 5301.333
- Design
- one-piece, with brush strip
- Material
- Module plate: Sheet steel; Brush strip: Plastic, UL 94 HB, halogen-free; Module plate: Sheet steel; Brush strip: Plastic, UL 94 HB, halogen-free
- Surface finish
- Module plate: Zinc-plated
- Supply includes
- Assembly parts
- Assembly instruction
- Several gland module plates must be combined to seal the base completely in the VX IT; The gland plate module may be combined in exchange with other base modules with a depth of 237.5 mm.
- Dimensions
- Depth: 237.5 mm
- To fit
- Enclosure type: VX IT; Width: = 800 mm
- Net weight
- 1.82 kg
- Gross weight
- 2.06 kg
- PCF per pack (cradle-to-gate)
- 7.7 kg CO2 eq (Cat B)
- Note on PCF category
- Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
- Customs tariff number
- 94039910
- ETIM 9
- EC002620
- ECLASS 8.0
- 27189261
- Model
- Floor plate
- Suitable for enclosure building width
- 800 mm
- Width
- 800 mm
- Depth
- 237 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 4028177950856
- SAP 1200493197
- Code 82691069
