Rittal

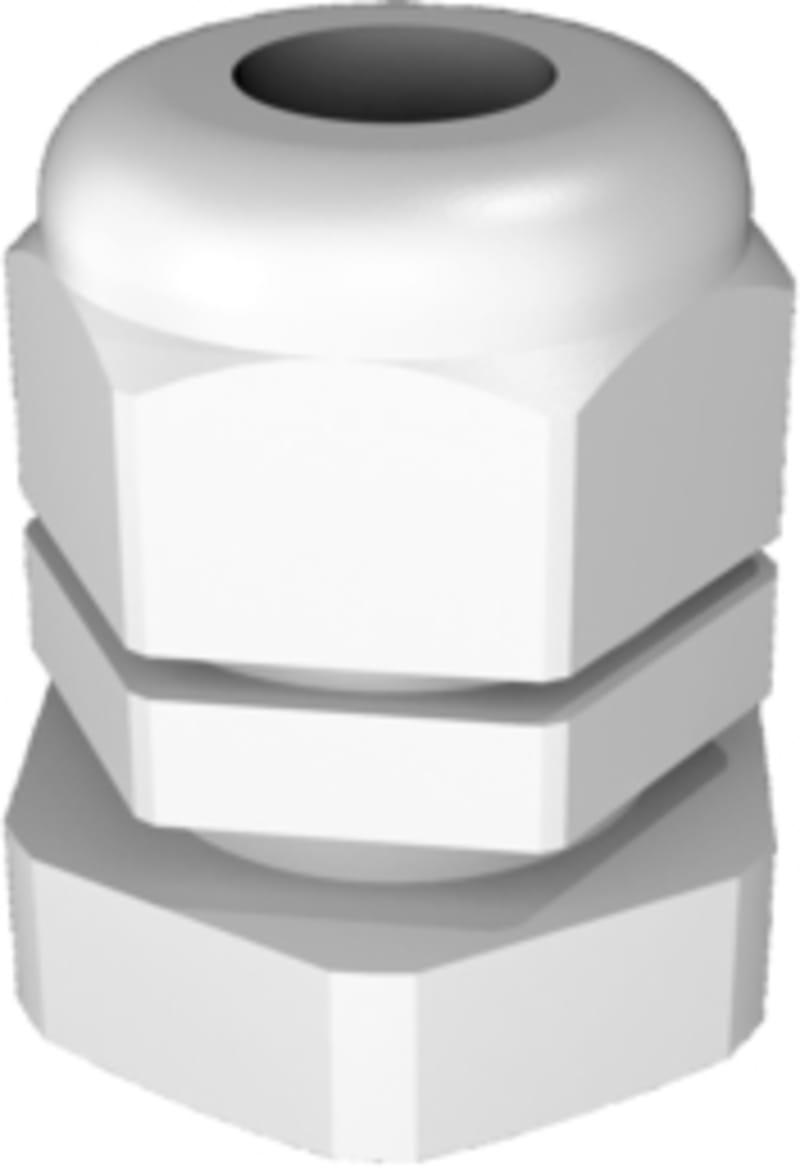

Cable Gland M12X1,5 50/frp
Part number2411601EAN / GTIN4028177810013HS code3926.90
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 2411601 Cable Gland in polyamide, RAL7035, M12X1,5 50/frp.
Technical Specifications
- Manufacturer part number (MPN)
- 2411601
- EAN / GTIN
- 4028177810013
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Model designation
- SZ 2411.601
- Product type
- Cable gland, polyamide
- Material
- Polyamide 6; Seal: CR/NBR
- Color
- RAL 7035
- Protection category IP to IEC 60 529
- IP 68 (5 bar, 30 min.)
- Dimensions
- Height: 22 mm
- Thread
- M12 x 1.5
- Thread length
- 8 mm
- Min. cable diameter
- 3 mm
- Max. cable diameter
- 6.5 mm
- Operating temperature range
- -30 °C...100 °C; -22 °F...212 °F
- Width across flats
- 15 mm
- Type rating according to UL 50E
- Type 4X
- Packaging unit
- 50 pc(s).
- Net weight
- 0.05 kg
- Gross weight
- 0.22 kg
- Customs tariff number
- 39269097
- ETIM 9
- EC000441
- ETIM 8
- EC000441
- ECLASS 8.0
- 27149109
- Approvals
- CSA + CSAus; UR + C-UR (recognized); VDE
- Pressure-compensating
- No
- Thread type
- Metric
- Nominal thread size metric/PG
- 12
- Pitch thread
- 1.5 mm
- Wrench width
- 17 mm
- Hexagon angular dimension
- 17 mm
- Suitable for cable diameter
- 3–6.5 mm
- Surface protection
- Untreated
- Halogen free
- No
- Glass-fibre reinforced
- No
- Shock resistant
- Yes
- RAL-number
- 7035
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- No
- Type of sealing
- Sealing ring
- Separable screw gland
- No
- Operating temperature
- -30–100 °C
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4028177810013
- SAP 1200596546
- Code 82972155
Product Documentation
Document preview: Rittal 2411601 — Data Sheet (OEM)
More from Rittal
Rittal

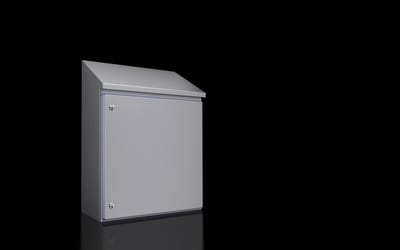

Rittal HD Hygienic Design Stainless-Steel Compact Enclosure 610x650x300 mm
1311600
Rittal

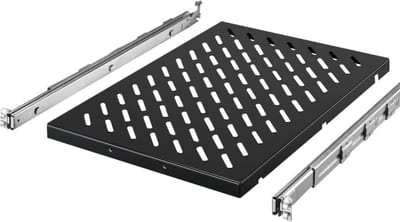

Withdrawable shelf for 19" (5501715)
Rittal

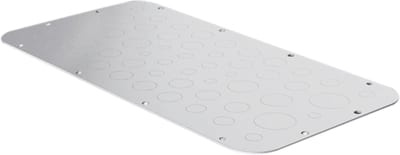

Metal Flange AX knockout st 3
2573100
Rittal

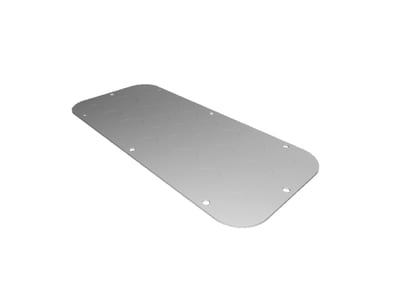

Metal Flange AX knockout st 2
2572100
Rittal

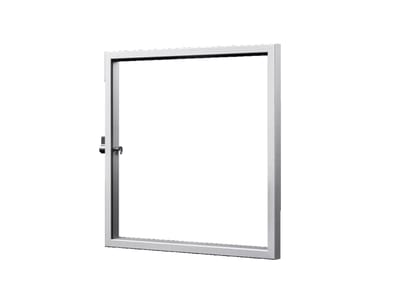

Window FT alu 497X497X36
2733010
Rittal

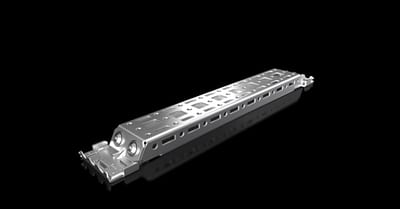

Rail for internal utbuildingn AX 300
2394300
Rittal

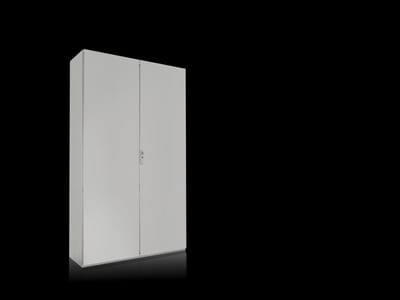

System Enclosure VXSE DD 1200X2000X500
5844600
Rittal

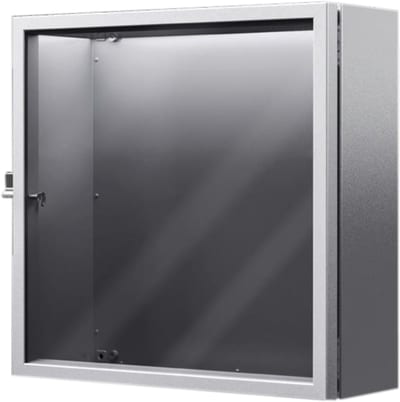

Window FT alu 597X377X62
