Rittal
Window FT alu 497X497X36
Part number2733010EAN / GTIN4028177938496HS code7610.10
Enclosures
Enclosure Doors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

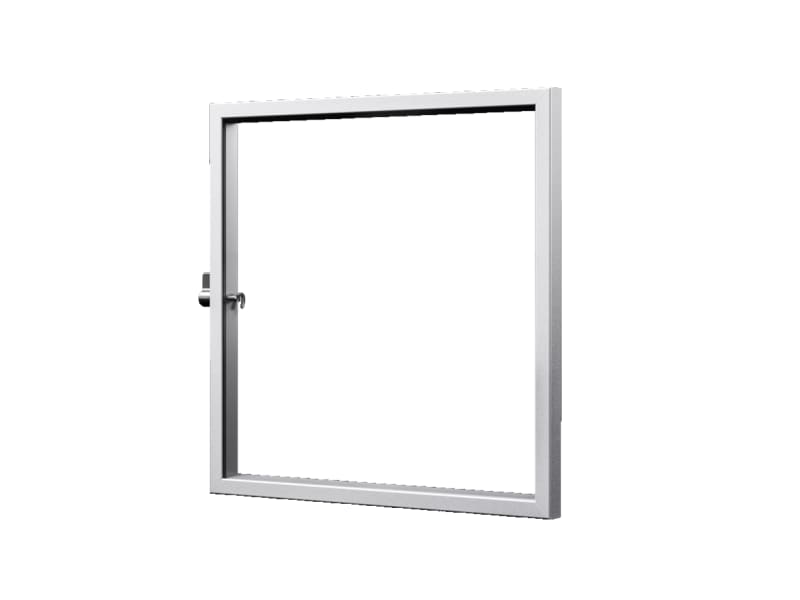

Rittal 2733010 Manufacturer description: FT Viewing window, WHD: 497x497x36 mm, for AX enclosures instead of the door and surfaces. FT Window, BHD: 497x497x36 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 2733010
- EAN / GTIN
- 4028177938496
- Sales unit
- pcs
- Model designation
- FT 2733.010
- Product type
- Viewing Windows
- Version
- 30 section
- Material
- Frame: Aluminum, natural anodized.; Glass panel: Acrylic
- Supply includes
- Plastic handle with lock insert # 3524 E
- Protection category IP to EN 60 529
- IP 54
- Suitable for Model No.
- 1050.000
- Dimensions
- Width: 497 mm; Height: 497 mm; Depth: 36 mm
- Visible area
- Viewing window width: 437 mm; Viewing window height: 437 mm
- Build depth for components (max.)
- 32 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 2.68 kg
- Gross weight
- 2.88 kg
- Customs tariff number
- 76101000
- ETIM 9
- EC002527
- ETIM 8
- EC002527
- ECLASS 8.0
- 27182204
- Width
- 497 mm
- Height
- 497 mm
- Depth
- 36 mm
- EMC-version
- No
- Degree of protection (IP)
- IP54
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7610.10
Cross References
- EAN 4028177938496
- SAP 1200380185
- Code 82389431
Product Documentation
Document preview: Rittal 2733010 — Data Sheet (OEM)
