GA aluminium box 78X80X57
Pricing
Request a quote
We reply within 24 hours
Product Description

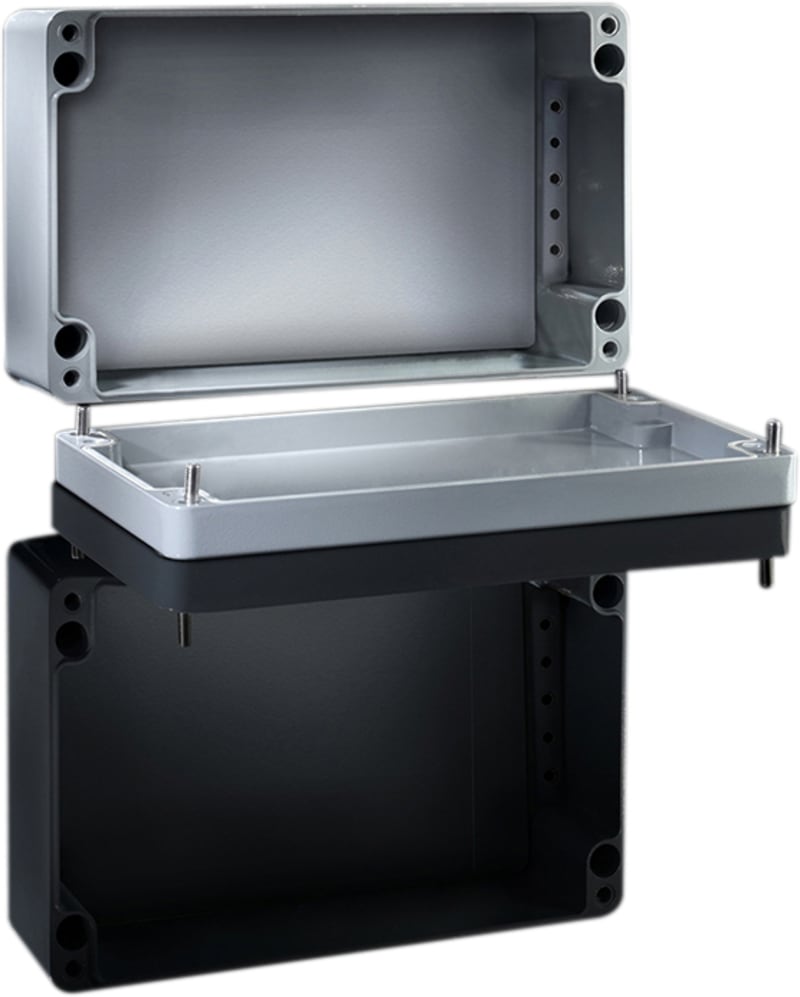

Rittal 9104210 Manufacturer description: GA Cast aluminium enclosure, WHD: 75x80x57 mm, Cast aluminum, without mounting plate, with cover. Rittal GA aluminium box.
Technical Specifications
- Manufacturer part number (MPN)
- 9104210
- EAN / GTIN
- 4028177145368
- Sales unit
- pcs
- Model designation
- GA 9104.210
- Product type
- Cast aluminum housing GA
- Material
- Housing: Cast aluminum; Cover: cast aluminum, all-round CR foam rubber round core seal
- Surface finish
- Textured paint
- Color
- RAL 7001
- Supply includes
- Housing with cover; Cover screws, captive; Screws for attaching support rails; Screw for connection of the PE conductor
- Protection category NEMA
- NEMA 4
- Protection category IP to EN 60 529
- IP 66
- IK code
- IK08
- Dimensions
- Width: 75 mm; Height: 80 mm; Depth: 58 mm
- Base material
- Cast aluminum
- Packaging unit
- 1 pc(s).
- Net weight
- 0.3 kg
- Gross weight
- 0.33 kg
- Customs tariff number
- 84879090
- ETIM 9
- EC000261
- ECLASS 8.0
- 27180101
- Colour
- Grey
- Width
- 75 mm
- Height
- 80 mm
- Depth
- 58 mm
- RAL-number
- 7001
- With mounting plate
- No
- Number of doors
- 1
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- No
- Pole fastening
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 32.6 N
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- India
Standards & Compliance
- HS Code
- 8487.90
Cross References
- EAN 4028177145368
- SAP 1000486440
- Code 8798792
Product Documentation
