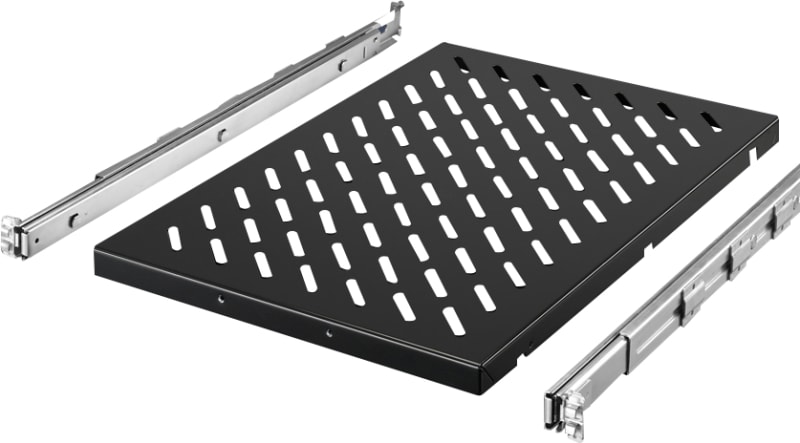

Withdrawable shelf for 19" (5501715)
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 5501715 Manufacturer description: DK Component shelf, WHD: 419x1 Ux500 mm, 100 kg, distance between levels: 400-600 mm, Pull-out, RAL 9005. Withdrawable shelf for 19", 400-600mm, 1,5U height.
Technical Specifications
- Manufacturer part number (MPN)
- 5501715
- EAN / GTIN
- 4028177679153
- Sales unit
- pcs
- Model designation
- DK 5501.715
- Product type
- Component shelf, pull-out
- Applications
- Depth-variable to adapt to individual distances between levels
- Material
- Carbon steel
- Surface finish
- Base: Spray-finished; Telescopic slides/installation kit: zinc-plated
- Color
- RAL 9005
- Supply includes
- Component shelf, slotted; Telescopic slide with mounting kit; Assembly components
- Load capacity
- 100 kg
- Dimensions
- Width: 419 mm; Depth: 500 mm
- Distance between levels
- 400 ‐ 600 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 6.7 kg
- Gross weight
- 7 kg
- PCF/VE (cradle-to-gate)
- 26.7 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 73269098
- ETIM 9
- EC002620
- ECLASS 8.0
- 27189261
- Model
- Device bottom
- Width
- 419 mm
- Height
- 67 mm
- Depth
- 500 mm
- Max. load capacity
- 100 kg
- Colour
- Black
- RAL-number
- 9005
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 4028177679153
- SAP 1000734977
- Code 8375929
