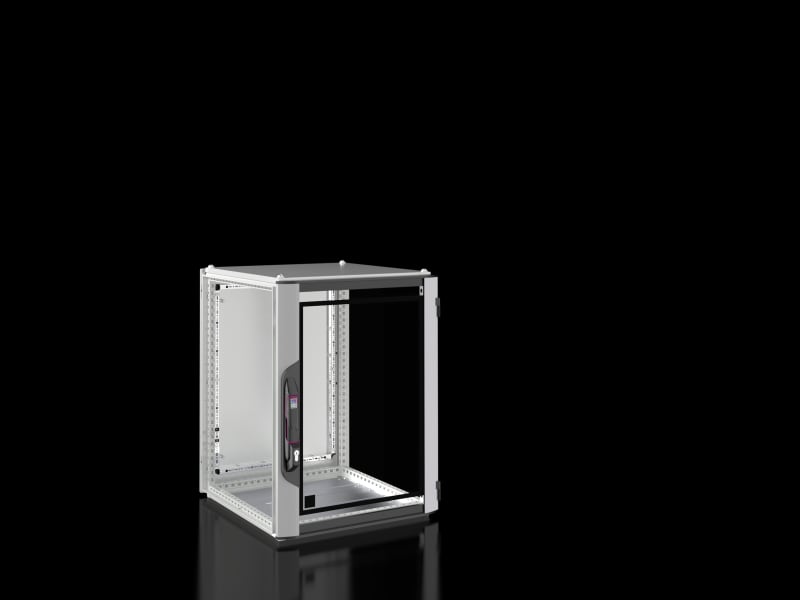

VX IT empty 600X800X600

Rittal 5325190 Manufacturer description: VX IT, without 482.6 mm (19") interior installation, glazed door, WHD: 600 x 800 x 600 mm, 15 U, IP 55. VX IT, solid, IP55, empty housing, RAL7035, WHD 600x800x600mm, 15U.

Manufacturer part number (MPN)

5325190

EAN / GTIN

4028177945425

Sales unit

pcs

Model designation

VX 5325.190

Product type

Network/server rack VX IT

Material

Sheet steel; Aluminium; Glazed door: Single-pane safety glass

3 mm; Front door

Aluminium

1.25 mm; Rear door

Sheet steel, 1.5 mm

Surface finish

Enclosure frame: Dipcoat-primed; Rear door and roof: Dipcoat-primed, powder-coated; Front door: Aluminium, anodised/spray-finished

General colour

RAL 7035

Colour

Enclosure frame, rear door and roof: RAL 7035; Front door: Vertical sections, silver coloured and horizontal sections

RAL 9005; Handle and hinges

RAL 9005

Supply includes

VX enclosure frame with doors and roof plate; Glazed aluminium door at the front, 180° hinges; Sheet steel rear door, solid, one-piece

130° hinges; Lock front and rear

Comfort handle for profile half-cylinders and security lock 3524 E; Roof plate, one-piece, solid; Base tray with gland plate, multi-piece, solid; Baying seal and sealing kit for gland plates (supplied loose); 12 x 482.6 mm (19") fastener, 1 U, conductive (supplied loose); 25 multi-tooth screws, conductive (supplied loose); IPPC pallet

Dimensions

Width: 600 mm; Height: 800 mm; Depth: 600 mm

Units

15 U

Roof design

one-piece, solid

Rear door design

Sheet steel door, solid, one-piece, 130° hinges

Front door design

Glazed aluminium door, solid, one-piece, 180° hinges

Mounting angle design

without

Base design

Base tray with gland plate, multi-piece, solid

Mounting angles position

without

Protection category to IEC 60 529

IP 55 only in conjunction with baying seal or screw-fastened side panels

IK Code

IK08

Basic material

Sheet steel

Net weight

40 kg

Gross weight

44.5 kg

PCF per pack (cradle-to-gate)

109.6 kg CO2 eq (Cat B)

Note on PCF category

Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared

Customs tariff number

94032080

ETIM 9

EC002499

ECLASS 8.0

27180207

Certificates

Negative Certificate; Surface finish; Protection category

Approvals

UL + C-UL (listed)

Mounting level

None

Type of profile rail

None

Number of doors

2

Type of ventilation

Passive

Width

600 mm

Height

800 mm

Depth

600 mm

Max. load capacity

1500 kg

With roof plate

Yes

With earthing

No

With front door

Yes

With sidewall

No

Demountable

No

Surface finishing

Powder coating

RAL-number

7035

Degree of protection (IP)

IP55

Country of origin

Germany

HS Code

9403.20

• EAN 4028177945425
• SAP 1200493149
• Code 82691023
