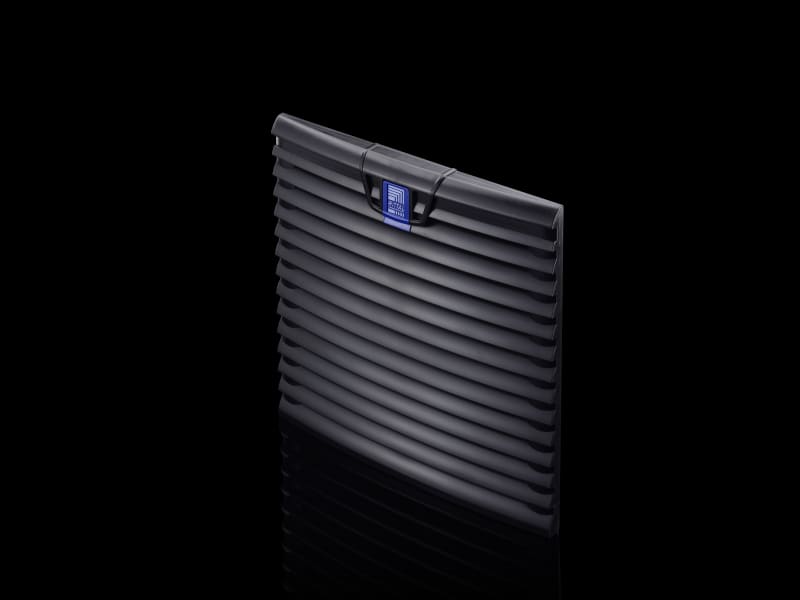

Rittal SK 3240.208 Outlet Filter for 3240.1XX/5XX Fans, RAL 9005 Black
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3240208 (SK 3240.208) is an outlet filter for enclosure ventilation by convection, mounted at the top or bottom of the cabinet as a counterpart to the fan. The ABS housing is finished in RAL 9005 black and supplied with a chopped-fibre filter mat. Overall size is 255 x 255 x 25 mm with a 224 x 224 mm mounting cut-out. It suits fan units 3240.1xx/5xx and 3241.1xx/5xx and achieves up to IP 56 with the appropriate filter and hose-proof hood.
Technical Specifications
- Manufacturer part number (MPN)
- 3240208
- EAN / GTIN
- 4028177663824
- Sales unit
- pcs
- Model designation
- SK 3240.208
- Product type
- Outlet Filters
- Material
- ABS
- Color
- RAL 9005
- Supply includes
- Outlet Filters; Chopped fiber filter mat
- Mounting cut-out
- Width of opening: 224 mm; Cut-out height: 224 mm
- Suitable for Model No.
- 3240.1xx/3240.5xx/3241.1xx/3241.5xx
- Dimensions
- Width: 255 mm; Height: 255 mm; Depth: 25 mm
- Protection category NEMA
- Type 12 with chopped fiber filter/pleated filter; Type 3; Type 3R; Type 4; Type 4X with chopped fiber filter/pleated filter and hose-proof hood
- Protection category IP to IEC 60 529
- IP 54 with chopped fiber filter/pleated filter; IP 55 with pleated filter and absorber mat; IP 56 with chopped fiber filter/pleated filter and hose-proof hood
- Packaging unit
- 1 pc(s).
- Net weight
- 0.46 kg
- Gross weight
- 0.56 kg
- Customs tariff number
- 39269097
- ETIM 9
- EC002513
- ETIM 8
- EC002513
- ECLASS 8.0
- 27180716
- Approvals
- UL + C-UL - FTTA; UR + C-UR (recognized)
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4028177663824
- SAP 1200596681
- Code 82973202
Product Documentation
More from Rittal
Rittal
VX IT std 800X2200X800
5312124
Rittal
PDU met. 16A/3P 18XC13+12XC19
7979238
Rittal
Heating element 75W without fan
3105350
Rittal
PDU met. 16A/3P 36XC13+6XC19
7979240
Rittal
PDU basic 32A/3P 24XC13+6XC19
7979137
Rittal
Helningsadapter +/-45° (6206420)
Rittal
Ceiling-mounted heat exchanger 4kW
3210100
Rittal
Segma Channel 80X60 (PW21162)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3240208?
- 3240208 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 3240208.
- What is the HS code for 3240208?
- The customs tariff (HS) code for 3240208 is 3926.90.
- Who manufactures 3240208?
- 3240208 is a Rittal product in the Enclosures range.
- Is a datasheet available for 3240208?
- Yes — the 3240208 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3240208?
- The minimum order quantity is 1.
- Is 3240208 available?
- Yes — 3240208 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
