Rittal

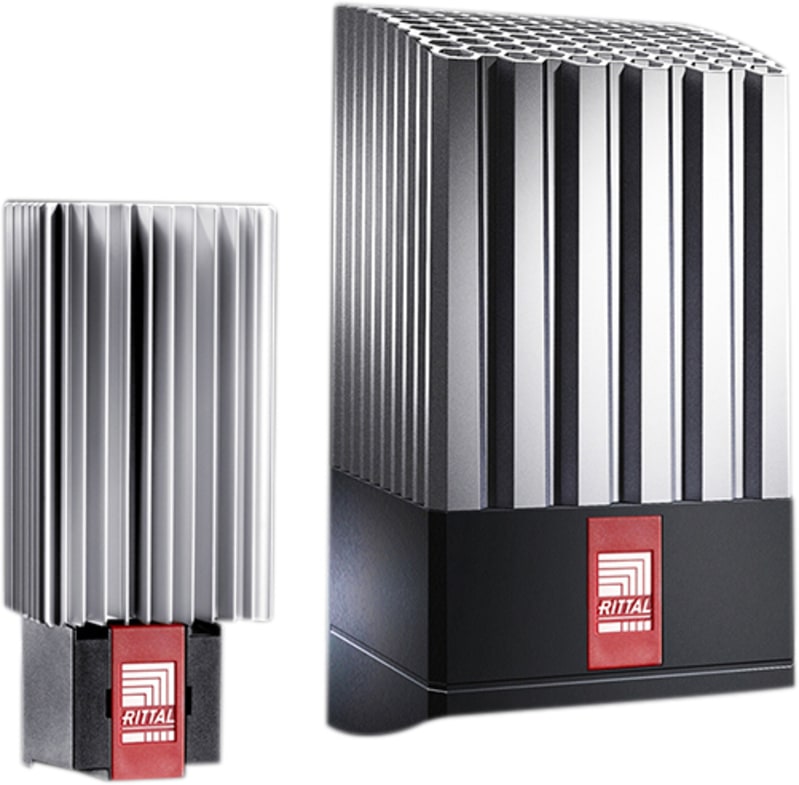

Heating element 75W without fan
Part number3105350EAN / GTIN4028177638655HS code8516.29
Enclosures
Enclosure Heaters
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3105350 Manufacturer description: SK enclosure heater, without fan, 63-75 W, 110-240 V, 1~, 50/60 Hz, WHD: 64 x 230 x 56 mm. Heating element 75W without fan for enclosures.
Technical Specifications
- Manufacturer part number (MPN)
- 3105350
- EAN / GTIN
- 4028177638655
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Model designation
- SK 3105.350
- Product type
- Enclosure Heater
- Material
- Aluminum, anodized
- Supply includes
- PTC heater; Quick-connection terminal; Fasteners
- Note on Model No.
- Operation at a temperature of -40 °C is possible. Upon request, you will receive a manufacturer's declaration.; Special voltages available on request. We reserve the right to make technical modifications.
- Continuous thermal output at
- 63 W ‐ 75 W
- Rated operating voltage
- 110 V - 240 V, 1~, 50 Hz/60 Hz
- Dimensions
- Width: 64 mm; Height: 230 mm; Depth: 56 mm
- Protection category IP to IEC 60 529
- IP 20
- Protection category
- II (total insulation)
- Operating temperature range
- -33 °C...65 °C; -27 °F...149 °F
- Packaging unit
- 1 pc(s).
- Net weight
- 0.59 kg
- Gross weight
- 0.62 kg
- Customs tariff number
- 85162999
- ETIM 9
- EC000737
- ETIM 8
- EC000737
- ECLASS 8.0
- 27180710
- Width
- 64 mm
- Height
- 230 mm
- Depth
- 56 mm
- Voltage type
- AC
- With room temperature controller
- No
- With fan
- No
- Rated power
- 75 W
- Operating voltage AC 50 Hz
- 99–242 V
- Operating voltage AC 60 Hz
- 99–242 V
- Continuous heating power at 10 °C
- 63 W
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8516.29
Cross References
- EAN 4028177638655
- SAP 1000113483
- Code 81059449
Product Documentation
Document preview: Rittal 3105350 — Data Sheet (OEM)
