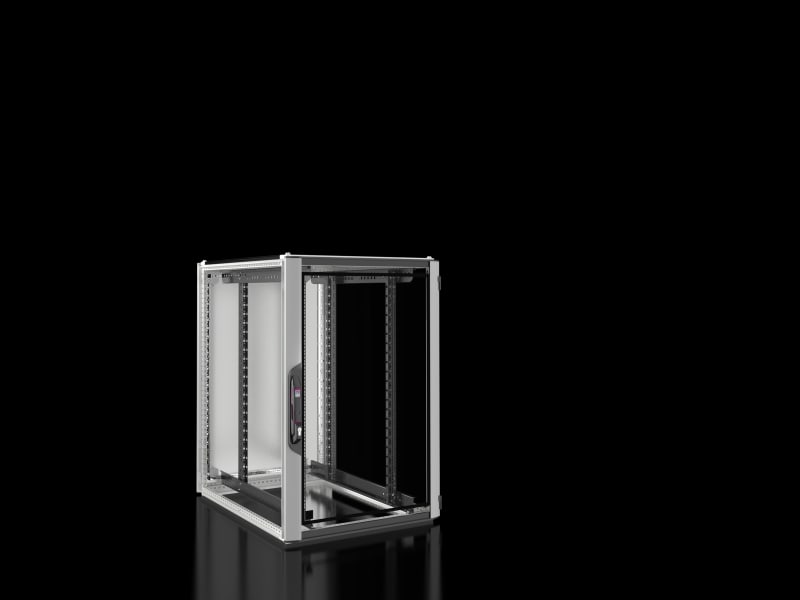

VX IT std 800X1200X1000

Rittal 5304126 Manufacturer description: VX IT, 19" mounting angles, standard, front and rear, glazed door, WHD: 800 x 1200 x 1000 mm, 24 U. VX IT, solid, 19 "mounting angle standard, RAL7035, WHD 800x1200x1000mm, 24U.

Manufacturer part number (MPN)

5304126

EAN / GTIN

4028177944893

Sales unit

pcs

Model designation

VX 5304.126

Product type

VX IT network/server enclosure

Material

Carbon steel; Aluminum; Viewing door: Single-pane safety glass

3 mm; Front door

aluminum

1.25 mm; Back door

carbon steel, 1.5 mm

Surface finish

Enclosure frame: Dipcoat-primed; Interior: Spray-finished; Rear door and roof: dipcoat-primed, powder-coated; Front door: Aluminum, anodized/spray-finished

General color

RAL 7035

Color

Enclosure frame, rear door and roof: RAL 7035; Front door: Vertical sections, silver colored and horizontal sections

RAL 9005; Interior installation

RAL 9005; Handle and hinges: RAL 9005

Supply includes

VX cabinet frame with doors and roof plate; Glazed aluminum door, front

180° hinges; Lock front and rear

Comfort handle for semi-cylinders and security lock 3524 E; Profile rails, 482.6 mm (19"); Spacers, height 50 mm, for raising the cover plate above the fan breakout in the roof panel, for passive ventilation (enclosed) Not required for variants without cutout.; 12 x 19” fasteners 1 U, contacting (supplied); 25 multi-tooth screws, conductive (supplied loose); IPPC pallet; Roof plate, multi-piece, with side depth-adjustable cable entry on both sides, prepared for fan mounting plate; Carbon steel door rear, closed, one-piece, 130° hinges

Dimensions

Width: 800 mm; Height: 1,200 mm; Depth: 1,000 mm

Height units

24 U

Distance between levels as delivered

720 mm

Version

Standard

Roof version

multi-piece, with side depth-adjustable cable entry on both sides, prepared for fan mounting plate

Design of rear door

Carbon steel door, closed, one-piece, 130° hinges

Design for front door

Glazed aluminum door, solid, one-piece, 180° hinges

Versions of profile rails

19" standard profile rails in VX IT

Floor version

open

Design of position of profile rails

19” level, front and rear

Load capacity

15,000 N

IK code

IK08

Base material

Carbon steel

Packaging unit

1 pc(s).

Net weight

77.05 kg

Gross weight

87.4 kg

PCF/VE (cradle-to-gate)

215.3 kg CO2 eq (Cat B)

Information regarding the PCF class

Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared

Customs tariff number

94032080

ETIM 9

EC002499

ECLASS 8.0

27180207

Certificates

Negative Certificate; Surface finish

Approvals

UL + C-UL (listed)

Mounting level

Front and rear

Type of profile rail

L-shape

Number of doors

2

Type of ventilation

Passive

Width

800 mm

Height

1200 mm

Depth

1000 mm

Number of height units

24

Max. load capacity

1500 kg

With roof plate

Yes

With earthing

No

With front door

Yes

With sidewall

No

Demountable

No

Surface finishing

Powder coating

Colour

Grey

RAL-number

7035

Degree of protection (IP)

IP20

Country of origin

Germany

HS Code

9403.20

• EAN 4028177944893
• SAP 1200493118
• Code 82691028
