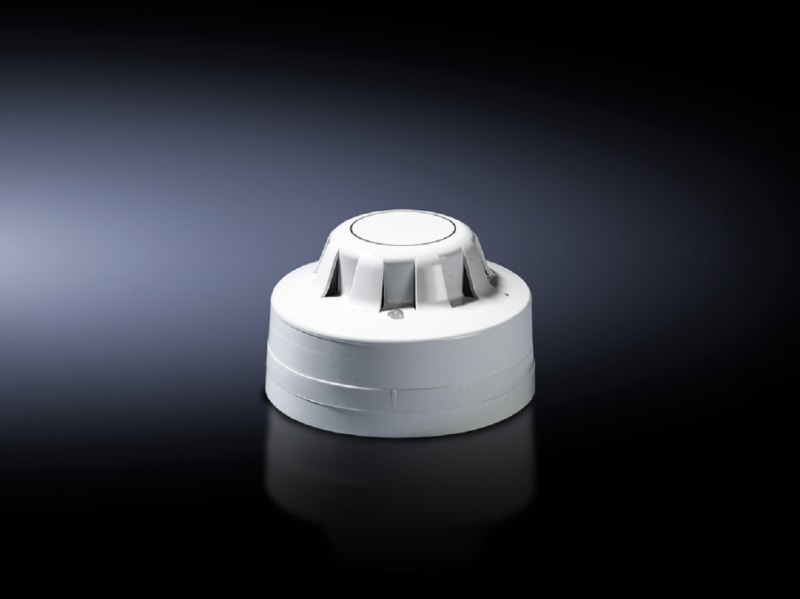

DK CMC III Smoke sensor

For monitoring various parameters in enclosures and rooms.

Manufacturer part number (MPN)

7030400

EAN / GTIN

4028177695818

HS code

8536.90

Sales unit

pcs

Package quantity

10 pcs

Model designation

DK 7030.400

Product type

CMC III Sensors

Version

Smoke alarm

Applications

Enclosure monitoring in IT, industry and facility management; Monitoring enclosures, rooms and containers in the field of IT.

Function principle

Settings can be made via the CMC III Processing Unit or the IoT interface.; The CMC III smoke detector is mounted in the top of the enclosure.; The sensor monitors the air in the enclosure for smoke particles.

Material

Plastic

Color

Housing: White; Mounting bracket: RAL 9005

Supply includes

Sensor; Mounting panel; Assembly components; Mounting Bracket; Assembly components

Connection to the CAN bus

Direct

Interfaces

2 x RJ45 CAN bus

Quantity of participants per IoT interface (max.)

32

Quantity of participants PU (max.)

32

Number of PDU participants (max.)

16

Measuring technique

Silicone PIN photodiode/GaAs Infrared LED

Dimensions

Height: 60 mm

Operating temperature range

5 °C...45 °C; 41 °F...113 °F

Ambient humidity (non- condensing)

5...95 %

Packaging unit

1 pc(s).

Net weight

0.4 kg

Gross weight

0.58 kg

PCF/VE (cradle-to-gate)

2.2 kg CO2 eq (Cat B)

Information regarding the PCF class

Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared

Customs tariff number

85311095

ETIM 9

EC002627

ECLASS 8.0

27189253

HS Code

8536.90

• EAN 4028177695818
• SAP 1000760263
• Code 8528547
