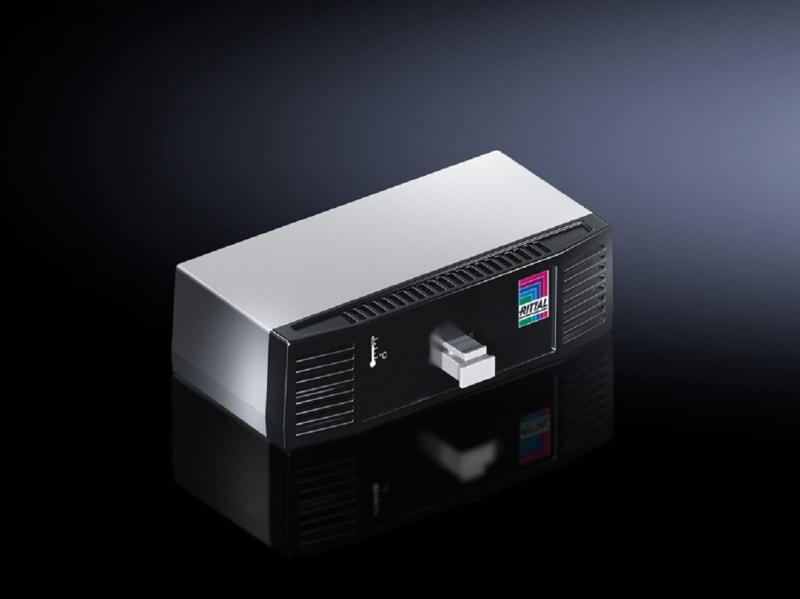

Temperature sensor CMCIII

For monitoring various parameters in enclosures and rooms. Manufacturer description: DK CMC III Temperature sensor, WHD: 80x28x40 mm.

Manufacturer part number (MPN)

7030110

EAN / GTIN

4028177659483

Sales unit

pcs

Package quantity

30 pcs

Model designation

DK 7030.110

Product type

CMC III Sensors

Version

Temperature sensor

Applications

Enclosure monitoring in IT, industry and facility management; Monitoring enclosures, rooms and containers in the field of IT.

Material

Plastic; Front: Smooth; Housing: Textured

Color

Front: RAL 9005; Housing: RAL 7035

Supply includes

Sensor; Mounting panel; Assembly components; External temperature sensor with connection cable and connector; NTC sensor, length 1.80 m max. cable length 2 m

Connection to the CAN bus

Direct

Interfaces

2 x RJ45 CAN bus; Socket

Quantity of participants per IoT interface (max.)

32

Quantity of participants PU (max.)

32

Number of PDU participants (max.)

16

Measuring technique

Internal NTC Resistance; External NTC Resistance

Dimensions

Width: 80 mm; Height: 30 mm; Depth: 40 mm

Operating temperature range

0 °C...55 °C; 32 °F...131 °F

Ambient humidity (non- condensing)

5...95 %

Packaging unit

1 pc(s).

Net weight

0.18 kg

Gross weight

0.18 kg

PCF/VE (cradle-to-gate)

0.8 kg CO2 eq (Cat B)

Information regarding the PCF class

Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared

Customs tariff number

90269000

ETIM 9

EC002627

ECLASS 8.0

27189253

Model

Sensor

Country of origin

Germany

HS Code

9026.90

• EAN 4028177659483
• SAP 1000791772
• Code 81403649
