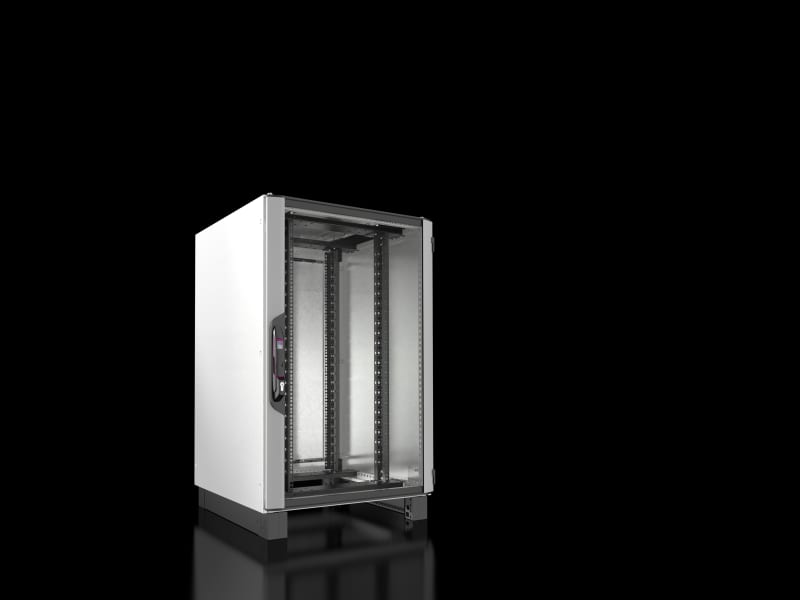

Rittal VX IT Server Rack 800 x 1200 x 800 mm 24U Glazed Door
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 5303154 is a VX IT pre-configured 24U server enclosure measuring 800 x 1300 x 800 mm (WxHxD) with 19" mounting angles standard at front and rear. The glazed aluminium front door and solid sheet-steel rear door open at 180° and 130° respectively, with static load capacity 8000 N and IK08 impact rating. Frame colour RAL 7035 with RAL 9005 interior installation.
Technical Specifications
- Manufacturer part number (MPN)
- 5303154
- EAN / GTIN
- 4028177944862
- Sales unit
- pcs
- Model designation
- VX 5303.154
- Product type
- Network/server rack VX IT
- Material
- Sheet steel; Aluminium; Plastic; Glazed door: Single-pane safety glass
- 3 mm; Front door
- Aluminium
- 1.25 mm; Rear door
- Sheet steel, 1.5 mm
- Surface finish
- Enclosure frame: Dipcoat-primed; Interior installation: Spray-finished; Rear door and roof: Dipcoat-primed, powder-coated; Front door: Aluminium, anodised/spray-finished
- General colour
- RAL 7035
- Colour
- Enclosure frame, rear door and roof: RAL 7035; Front door: Vertical sections, silver coloured and horizontal sections, RAL 9005; Interior installation, base/plinth: RAL 9005; Handle and hinges: RAL 9005
- Dimensions
- Width: 800 mm; Height: 1,200 mm; Depth: 800 mm
- Units
- 24 U
- Height including base/plinth
- 1,300 mm
- Distance between levels as delivered
- 520 mm
- Design
- Pre-configured
- Roof design
- multi-piece, with side cable entry in the depth, double-sided, prepared for fan mounting plate
- Rear door design
- Sheet steel door, solid, one-piece, 130° hinges
- Front door design
- Glazed aluminium door, solid, one-piece, 180° hinges
- Mounting angle design
- 482.6 mm (19") mounting angles, standard in the VX IT
- Base design
- Base module mounted at front as infill panel
- Mounting angles position
- 482.6 mm (19") level, front and rear
- Load capacity
- 8,000 N
- IK Code
- IK08
- Basic material
- Sheet steel
- Net weight
- 109 kg
- Gross weight
- 119.4 kg
- PCF per pack (cradle-to-gate)
- 293.2 kg CO2 eq (Cat B)
- Note on PCF category
- Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
- Customs tariff number
- 94032080
- ETIM 9
- EC002499
- ECLASS 8.0
- 27180207
- Certificates
- Negative Certificate; Surface finish
- Approvals
- UL + C-UL (listed)
- Mounting level
- Front and rear
- Type of profile rail
- L-shape
- Number of doors
- 2
- Type of ventilation
- Passive
- Width
- 800 mm
- Height
- 1300 mm
- Depth
- 800 mm
- Number of height units
- 24
- Max. load capacity
- 1500 kg
- With roof plate
- Yes
- With earthing
- Yes
- With front door
- Yes
- With sidewall
- Yes
- Demountable
- No
- Surface finishing
- Powder coating
- RAL-number
- 7035
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177944862
- SAP 1200477487
- Code 82550611
Product Documentation
More from Rittal
Rittal

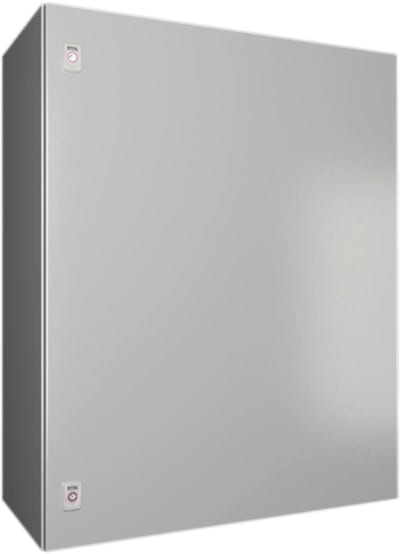

Compact enclosure AX 800X1000X400
1181000
Rittal

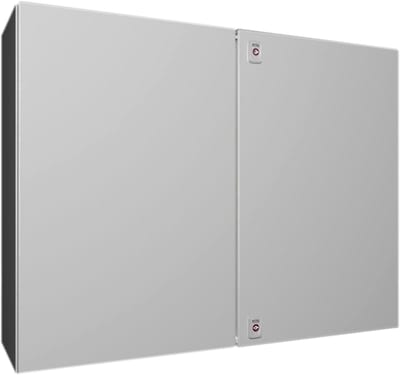

Compact enclosure AX 1000X760X300
1130000
Rittal

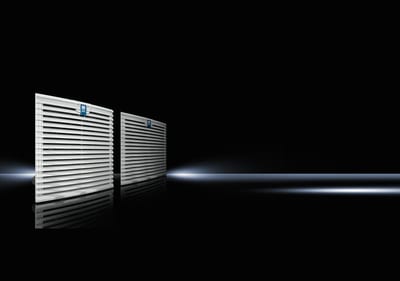

Filter Fans EC 180 m³/h
