Rittal

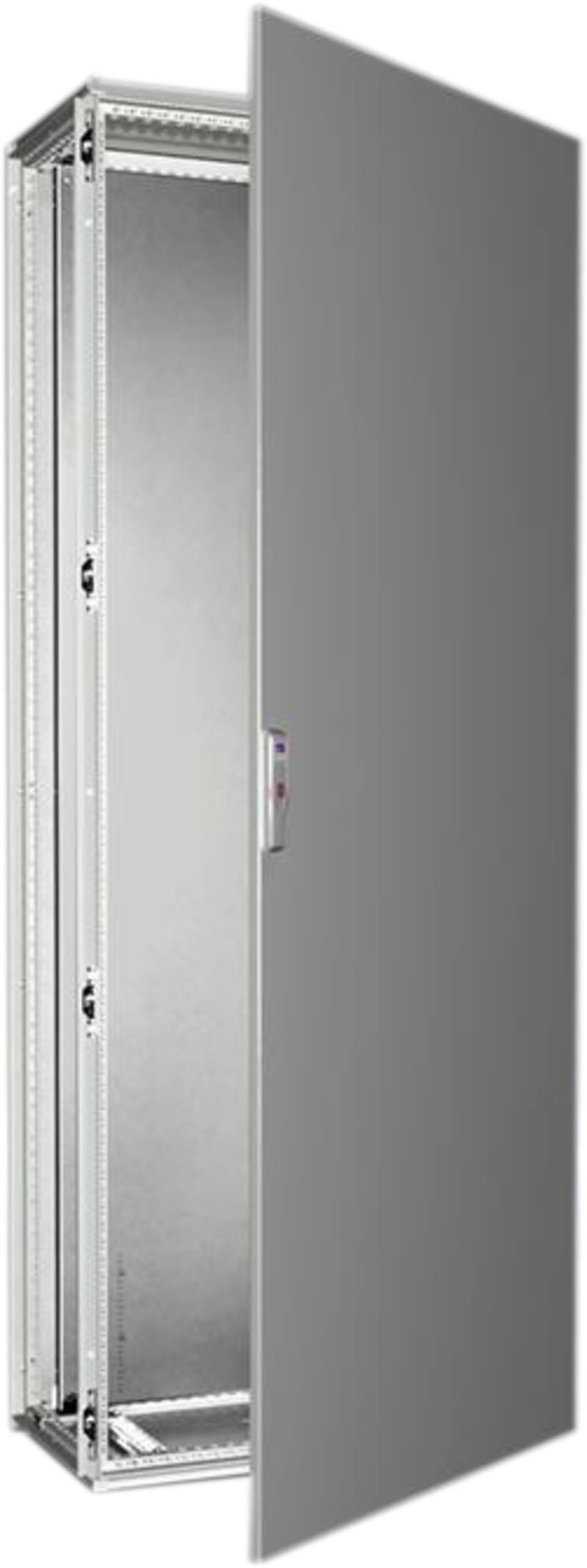

Floor-Standing Enclosure VX 800X1800X500
Part number8880000EAN / GTIN4028177813908HS code9403.99
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8880000 Floor-Standing Enclosure VX with mounting plate.
Technical Specifications
- Manufacturer part number (MPN)
- 8880000
- EAN / GTIN
- 4028177813908
- Sales unit
- pcs
- Model designation
- VX 8880.000
- Product type
- Bayed enclosure system VX25
- Material
- Enclosure frame: Sheet steel
- 1.5 mm; Roof
- Sheet steel
- 1.5 mm; Door
- Sheet steel
- 2.0 mm; Rear panel
- Sheet steel
- 1.5 mm; Gland plates
- Sheet steel
- 1.5 mm; Mounting plate
- Sheet steel, 3.0 mm
- Surface finish
- Enclosure frame: Dipcoat-primed; Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint; Mounting plate and gland plates: Zinc-plated
- Colour
- RAL 7035
- Supply includes
- Enclosure frame; Door(s); Door hinged on the right, may be swapped to the left; Roof plate; Rear panel; Gland plates; Mounting plate; 2 punched rails 18 x 39 mm; Lock: 3 mm double-bit
- Dimensions
- Width: 800 mm; Height: 1,800 mm; Depth: 500 mm
- Dimensions mounting plate (W x H)
- 699 mm x 1,696 mm
- Protection category to IEC 60 529
- IP 55
- Protection category NEMA
- NEMA 1; NEMA 12
- Type rating to UL 50E
- Type 1; Type 12
- IK Code
- IK10
- Basic material
- Sheet steel
- Net weight
- 115.22 kg
- Gross weight
- 118.8 kg
- PCF per pack (cradle-to-gate)
- 328.82 kg CO2 eq (Cat B)
- Note on PCF category
- Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
- Customs tariff number
- 94032080
- ETIM 9
- EC000261
- ETIM 8
- EC000261
- ECLASS 8.0
- 27180101
- Width
- 800 mm
- Height
- 1800 mm
- Depth
- 500 mm
- RAL-number
- 7035
- With mounting plate
- Yes
- Number of doors
- 2
- Number of locks
- 1
- Suitable for wall mounting
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- Yes
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- Yes
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- No
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- No
- Pole fastening
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 15000 N
- Max. permitted load of the door(s) according to IEC 62208
- 900 N
- Floor standing wall model
- Yes
- Freestanding
- Yes
- Corner model
- Yes
- Intermediate mounting
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 4028177813908
- SAP 1200097389
- Code 81953339
Product Documentation
Document preview: Rittal 8880000 — Data Sheet (OEM)
