Rittal

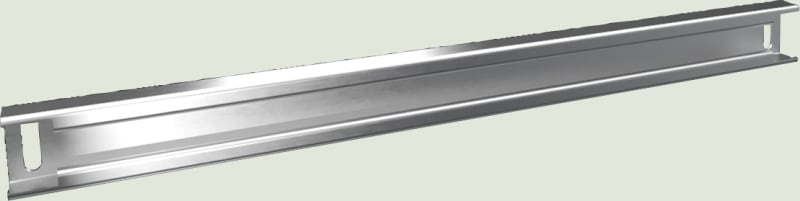

Support rail VX 45X25MM 1200
Part number8617830EAN / GTIN4028177919549HS code9403.20
Electrical Components
DIN Rail Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8617830 Support rail VX.
Technical Specifications
- Manufacturer part number (MPN)
- 8617830
- EAN / GTIN
- 4028177919549
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Model designation
- VX 8617.830
- Product type
- Support Rail 48 x 26 mm
- Model No. Product description
- VX 8617.830
- Material
- Carbon steel
- Surface finish
- Zinc-plated
- Supply includes
- Assembly components
- Installation options VX
- In enclosure width 1200 mm, on the inner mounting level and in the base
- Installation options VX SE
- In enclosure width 1200 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility and in the base
- Installation options AX
- In enclosure width 1200 mm, in conjunction with the AX interior installation rail and AX base configuration rail
- Installation options PC
- In enclosure width 1200 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility and in the base
- Installation options IW
- In enclosure width 1200 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility and in the base
- Packaging unit
- 2 pc(s).
- Net weight
- 5.6 kg
- Gross weight
- 5.95 kg
- PCF/VE (cradle-to-gate)
- 25.12
- Customs tariff number
- 73269098
- ETIM 9
- EC001285
- ECLASS 8.0
- 27189261
- Model
- Special profile
- Material thickness
- 1.5 mm
- Punch shape
- Long-slot
- Drill hole distance centrically
- 5 mm
- Surface finishing
- Galvanised
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177919549
- SAP 1200107055
- Code 81964412
Product Documentation
Document preview: Rittal 8617830 — Data Sheet (OEM)
More from Rittal
Rittal

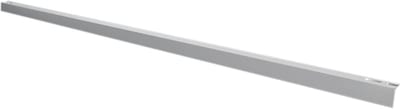

Cablefangrail VX 1600
8619450
Rittal

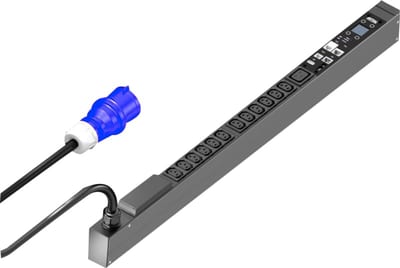

PDU switch 16A/1P 12XC13+1XC19
7979310
Rittal

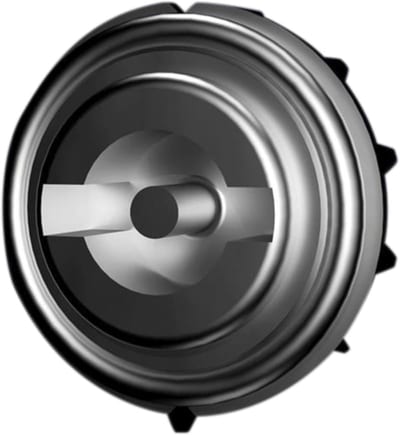

Rittal VX Lock Insert, Type G, 3 mm Double-Bit, Die-Cast Zinc
8618306
Rittal

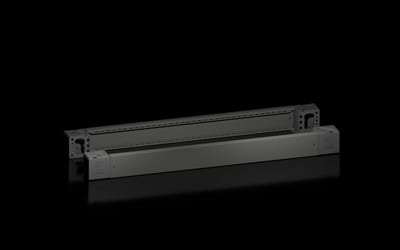

Plinth VX incl. front/rear panel 100X1100
8660006
Rittal

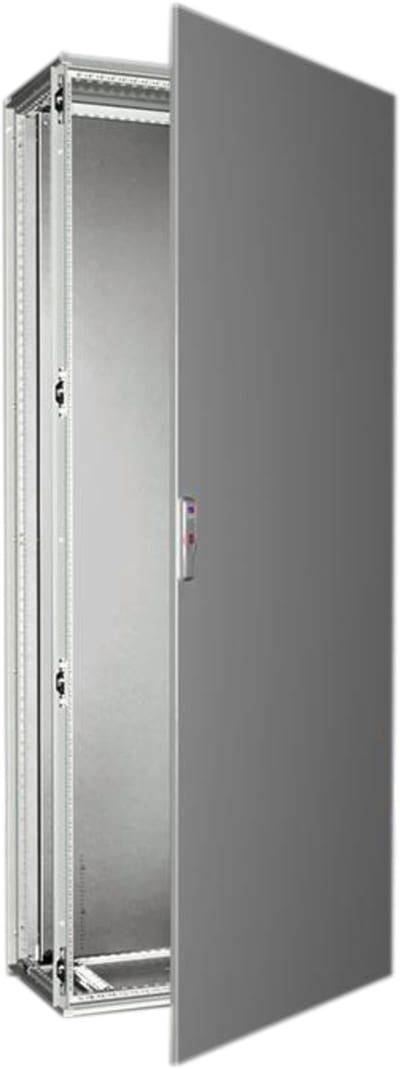

Floor-Standing Enclosure VX 800X1800X500
8880000
Rittal
VX IT Air control plate 600X2000 dyn
5302004
Rittal

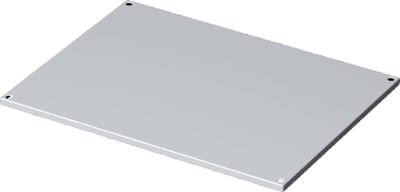

Top plate IP55 for VX 600X1200
9681662
Rittal
App.adapter CB 400A 690V o
9345720
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 8617830?
- 8617830 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 8617830.
- What is the HS code for 8617830?
- The customs tariff (HS) code for 8617830 is 9403.20.
- Who manufactures 8617830?
- 8617830 is a Rittal product in the Electrical Components range.
- Is a datasheet available for 8617830?
- Yes — the 8617830 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 8617830?
- The minimum order quantity is 1.
- Is 8617830 available?
- Yes — 8617830 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
