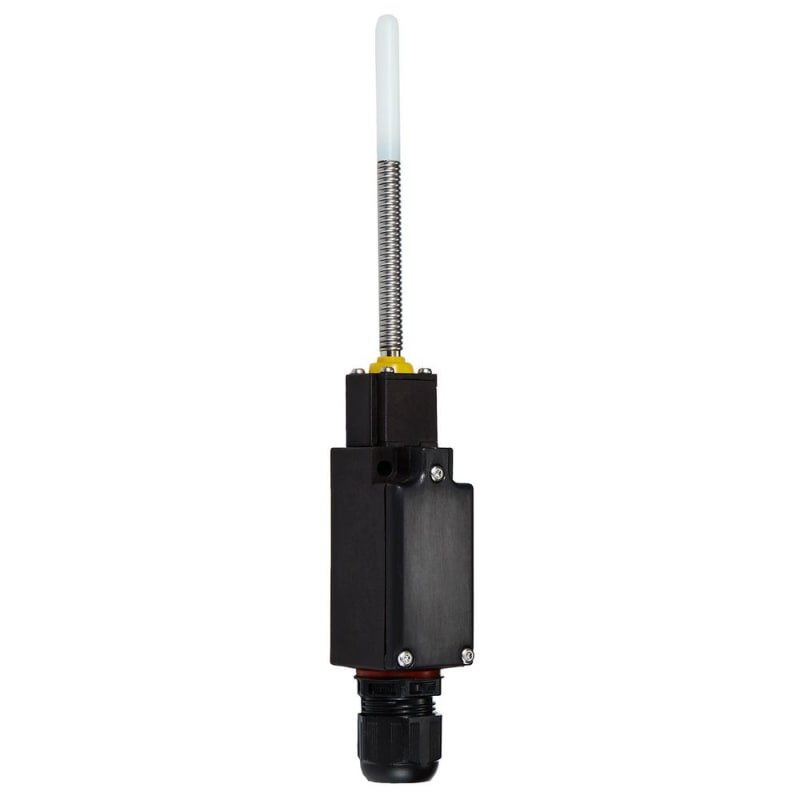

R. Stahl 267973 Ex Position Switch 8060/2-1-TK-60 Spring-Rod Head

R. Stahl 267973 is an Ex-rated position switch model 8060/2-1-TK-60 fitted with a spring-rod actuator head and slow-action contact block. Rated 2 A at AC-15 and DC-13 across 24 V, 125 V and 230 V ratings. Plastic housing rated IP66 with metric cable entry, certified to ATEX Category 2G for gas and 2D for dust hazardous areas. Sensor body 31 x 32 x 9.19 mm. Manufactured in Germany.

Manufacturer part number (MPN)

267973

EAN / GTIN

4046827157776

Sales unit

pcs

Switching function

Slow-action switch

Rated operation current Ie at AC-15, 230 V

2 A

Rated operation current Ie at DC-13, 230 V

2 A

Housing material

Plastic

Suitable for safety functions

No

With status indication

No

Type of interface for safety communication

None

Type of electric connection

Cable entry metrical

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 2G

Explosion safety category for dust

ATEX dust-ex-protection, Cat. 2D

Degree of protection (IP)

IP66

Type of control element

Spring-rod

Type of interface

None

Output electronic

No

Rated operation current Ie at AC-15, 125 V

2 A

Rated operation current Ie at AC-15, 24 V

2 A

Rated operation current Ie at DC-13, 125 V

2 A

Rated operation current Ie at DC-13, 24 V

2 A

Width sensor

31 mm

Height of sensor

32 mm

Length of sensor

9.19 mm

Switching function latching

No

Country of origin

Germany

HS Code

9032.89

• EAN 4046827157776
• SAP 1200886769
• Code 84128581
