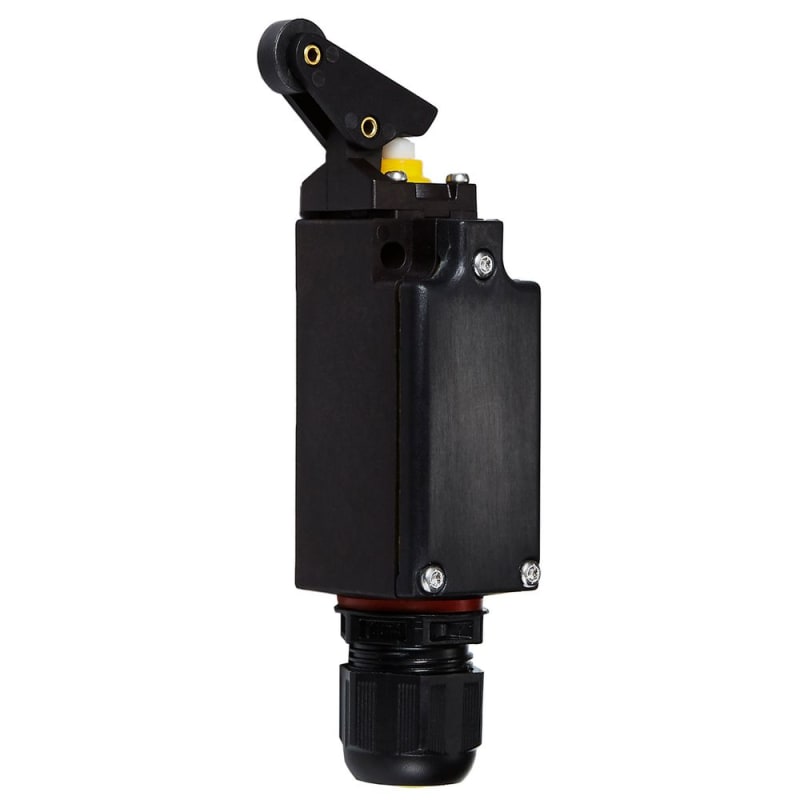

R. Stahl 254885 Ex Position Switch 8060/2-1-WPH-60 Parallel Roller Lever

R. Stahl 8060/2-1-WPH-60 (254885) is an Ex-rated position switch actuated by a square parallel roller lever, in a plastic housing with slow-action contacts and metric cable entry. It is certified ATEX Cat. 2G and Cat. 2D for gas and dust atmospheres, rated IP66 and 2 A at AC-15 or DC-13 up to 230 V.

Manufacturer part number (MPN)

254885

EAN / GTIN

4046827071973

Sales unit

pcs

Switching function

Slow-action switch

Rated operation current Ie at AC-15, 230 V

2 A

Rated operation current Ie at DC-13, 230 V

2 A

Housing material

Plastic

Suitable for safety functions

No

Type of interface for safety communication

None

Type of electric connection

Cable entry metrical

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 2G

Explosion safety category for dust

ATEX dust-ex-protection, Cat. 2D

Degree of protection (IP)

IP66

Type of control element

Square roller lever

Type of interface

None

Output electronic

No

Rated operation current Ie at AC-15, 125 V

2 A

Rated operation current Ie at AC-15, 24 V

2 A

Rated operation current Ie at DC-13, 125 V

2 A

Rated operation current Ie at DC-13, 24 V

2 A

Width sensor

45.5 mm

Height of sensor

32 mm

Length of sensor

5.39 mm

Switching function latching

No

Country of origin

Germany

HS Code

9032.89

• EAN 4046827071973
• SAP 1200886743
• Code 84128690
