Ex Position Switch 8074/2-5-D-40, rotary lever
Pricing
Request a quote
We reply within 24 hours
Product Description
R. Stahl Scandinavia As 257216 Ex position switch, rotary lever, type 8074/2-5-D-40.
Technical Specifications
- Manufacturer part number (MPN)
- 257216
- EAN / GTIN
- 4046827148910
- Sales unit
- pcs
- Switching function
- Slow-action switch with overlapping
- Rated operation current Ie at AC-15, 230 V
- 4 A
- Rated operation current Ie at DC-13, 230 V
- 4 A
- Housing material
- Metal
- Suitable for safety functions
- No
- Type of interface for safety communication
- None
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 2G
- Explosion safety category for dust
- ATEX dust-ex-protection, Cat. 2D
- Degree of protection (IP)
- IP66
- Type of control element
- Rotary lever
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at AC-15, 125 V
- 4 A
- Rated operation current Ie at AC-15, 24 V
- 4 A
- Rated operation current Ie at DC-13, 125 V
- 4 A
- Rated operation current Ie at DC-13, 24 V
- 4 A
- Width sensor
- 40 mm
- Height of sensor
- 61.2 mm
- Length of sensor
- 6.61 mm
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9032.89
Cross References
- EAN 4046827148910
- SAP 1200886715
- Code 84128697
Product Documentation
More from R. Stahl Scandinavia As
R. Stahl Scandinavia As
Ex Position Switch 8070/2-3-DS-U60, adjustable rotary lever (275365)
R. Stahl Scandinavia As
Ex Position Switch 8070/2-2-R-U60, roller plunger
258228
R. Stahl Scandinavia As

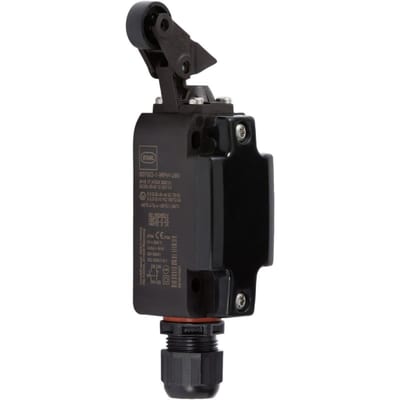

Ex Position Switch 8070/2-1-WPH-U60, parallel roller lever
