Ex Position Switch 8074/2-5-R-40, roller plunger
Pricing
Request a quote
We reply within 24 hours
Product Description

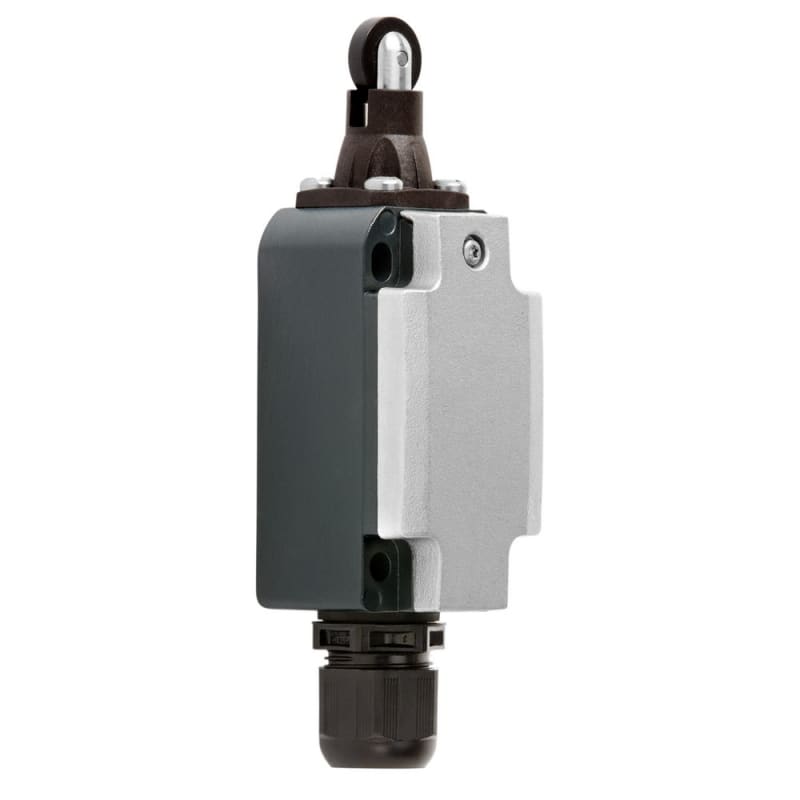

R. Stahl Scandinavia As 257213 Ex position switch, roller plunger, type 8074/2-5-R-40.
Technical Specifications
- Manufacturer part number (MPN)
- 257213
- EAN / GTIN
- 4046827148941
- Sales unit
- pcs
- Switching function
- Slow-action switch with overlapping
- Rated operation current Ie at AC-15, 230 V
- 4 A
- Rated operation current Ie at DC-13, 230 V
- 4 A
- Housing material
- Metal
- Suitable for safety functions
- No
- Type of interface for safety communication
- None
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 2G
- Explosion safety category for dust
- ATEX dust-ex-protection, Cat. 2D
- Degree of protection (IP)
- IP66
- Type of control element
- Roller cam
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at AC-15, 125 V
- 4 A
- Rated operation current Ie at AC-15, 24 V
- 4 A
- Rated operation current Ie at DC-13, 125 V
- 4 A
- Rated operation current Ie at DC-13, 24 V
- 4 A
- Width sensor
- 40 mm
- Height of sensor
- 43 mm
- Length of sensor
- 6.06 mm
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9032.89
Cross References
- EAN 4046827148941
- SAP 1200886712
- Code 84128574
Product Documentation
