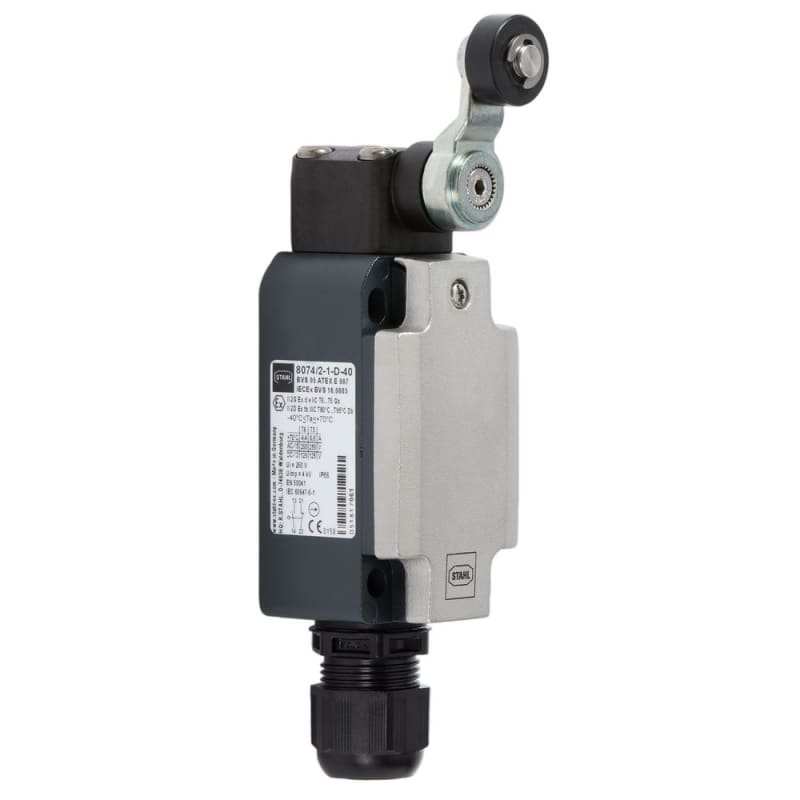

Ex Position Switch 8074/2-3-D-40, rotary lever
Pricing
Request a quote
We reply within 24 hours
Product Description
R. Stahl Scandinavia As 257207 Ex position switch, rotary lever, type 8074/2-3-D-40.
Technical Specifications
- Manufacturer part number (MPN)
- 257207
- EAN / GTIN
- 4046827148996
- Sales unit
- pcs
- Switching function
- Slow-action switch
- Rated operation current Ie at AC-15, 230 V
- 4 A
- Rated operation current Ie at DC-13, 230 V
- 4 A
- Housing material
- Metal
- Suitable for safety functions
- No
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 2G
- Explosion safety category for dust
- ATEX dust-ex-protection, Cat. 2D
- Degree of protection (IP)
- IP66
- Type of control element
- Rotary lever
- Rated operation current Ie at AC-15, 125 V
- 4 A
- Rated operation current Ie at AC-15, 24 V
- 4 A
- Rated operation current Ie at DC-13, 125 V
- 4 A
- Rated operation current Ie at DC-13, 24 V
- 4 A
- Width sensor
- 40 mm
- Height of sensor
- 61.2 mm
- Length of sensor
- 6.61 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9032.89
Cross References
- EAN 4046827148996
- SAP 1200886710
- Code 84128639
Product Documentation
More from R. Stahl Scandinavia As
R. Stahl Scandinavia As
Ex Position Switch 8060/2-4-DS-60, adjustable rotary lever
268419
R. Stahl Scandinavia As
Ex Position Switch 8060/2-5-W-60, plunger
254797
R. Stahl Scandinavia As
Ex Position Switch Actuator Spare, Rod lever 8060/2-0-DD
257059
R. Stahl Scandinavia As
Single-Channel Safety Barrier 9001/00-280-100-101
158356
R. Stahl Scandinavia As

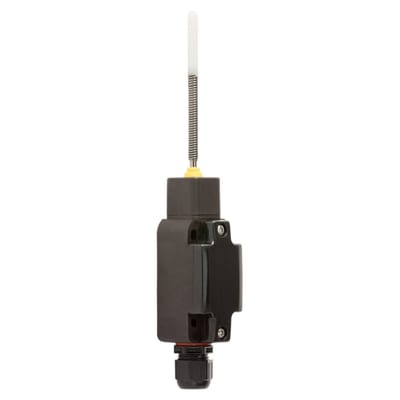

R. Stahl 8070/2-2-TK-U60 Ex Position Switch with Spring-Rod Head
258234
R. Stahl Scandinavia As

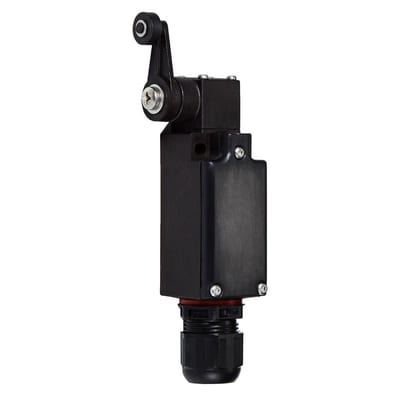

Ex Position Switch 8060/2-2-D-60, rotary lever
254898
R. Stahl Scandinavia As

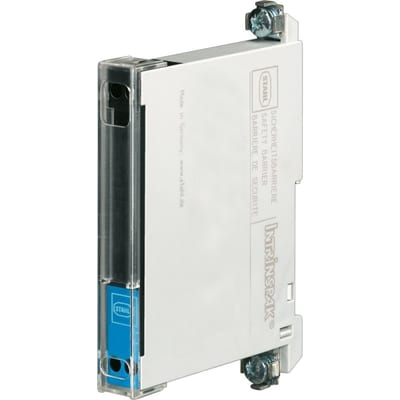

Single-Channel Safety Barrier 9001/02-280-090-101
158317
R. Stahl Scandinavia As

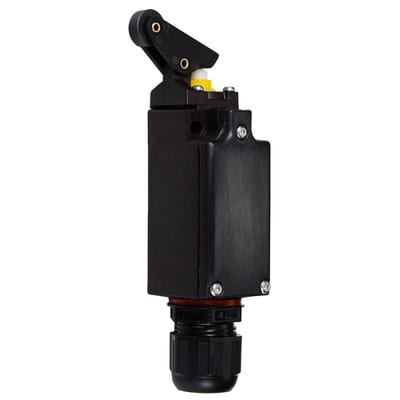

Ex Position Switch 8060/2-2-WPH-60, parallel roller lever
