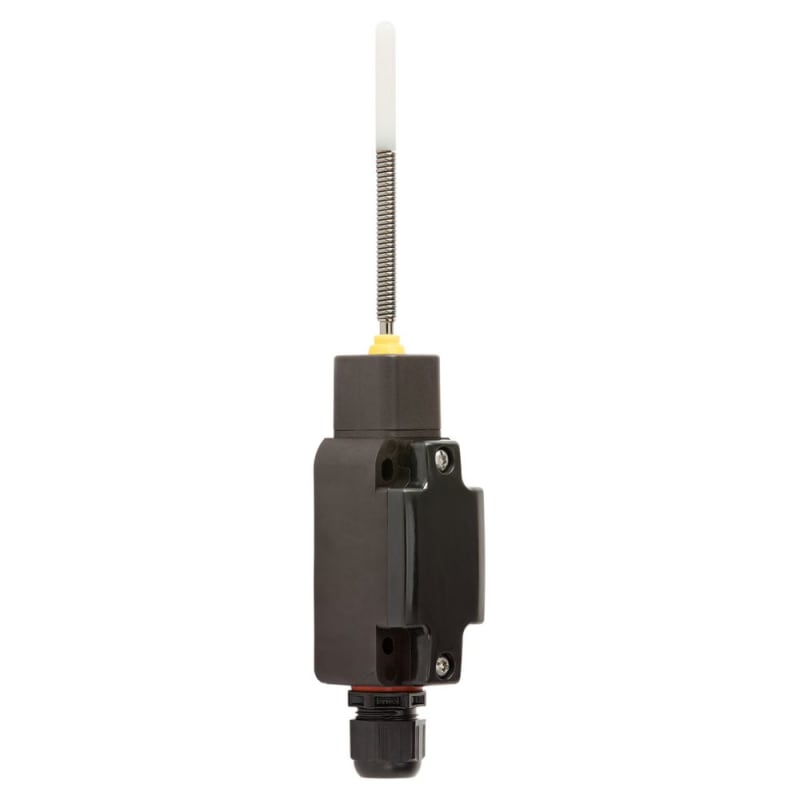

R. Stahl 8070/2-2-TK-U60 Ex Position Switch with Spring-Rod Head

R. Stahl 8070/2-2-TK-U60 is an Ex position switch fitted with a spring-rod actuator head and quick-break switching function. It is rated 2 A at AC-15 230 V and DC-13 230 V across a plastic housing certified ATEX Zone 1 gas (Cat. 2G) and Zone 21 dust (Cat. 2D), IP66, with metric cable entry. Sensor dimensions are 42 x 45.5 x 10.39 mm and the device does not carry latching or status indication. Manufactured in Germany.

Manufacturer part number (MPN)

258234

EAN / GTIN

4046827071256

Sales unit

pcs

Switching function

Quick-break switch

Rated operation current Ie at AC-15, 230 V

2 A

Rated operation current Ie at DC-13, 230 V

2 A

Housing material

Plastic

Suitable for safety functions

No

With status indication

No

Type of interface for safety communication

None

Type of electric connection

Cable entry metrical

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 2G

Explosion safety category for dust

ATEX dust-ex-protection, Cat. 2D

Degree of protection (IP)

IP66

Type of control element

Spring-rod

Type of interface

None

Output electronic

No

Rated operation current Ie at AC-15, 125 V

2 A

Rated operation current Ie at AC-15, 24 V

2 A

Rated operation current Ie at DC-13, 125 V

2 A

Rated operation current Ie at DC-13, 24 V

2 A

Width sensor

42 mm

Height of sensor

45.5 mm

Length of sensor

10.39 mm

Switching function latching

No

Country of origin

Germany

HS Code

9032.89

• EAN 4046827071256
• SAP 1200886632
• Code 84128683
