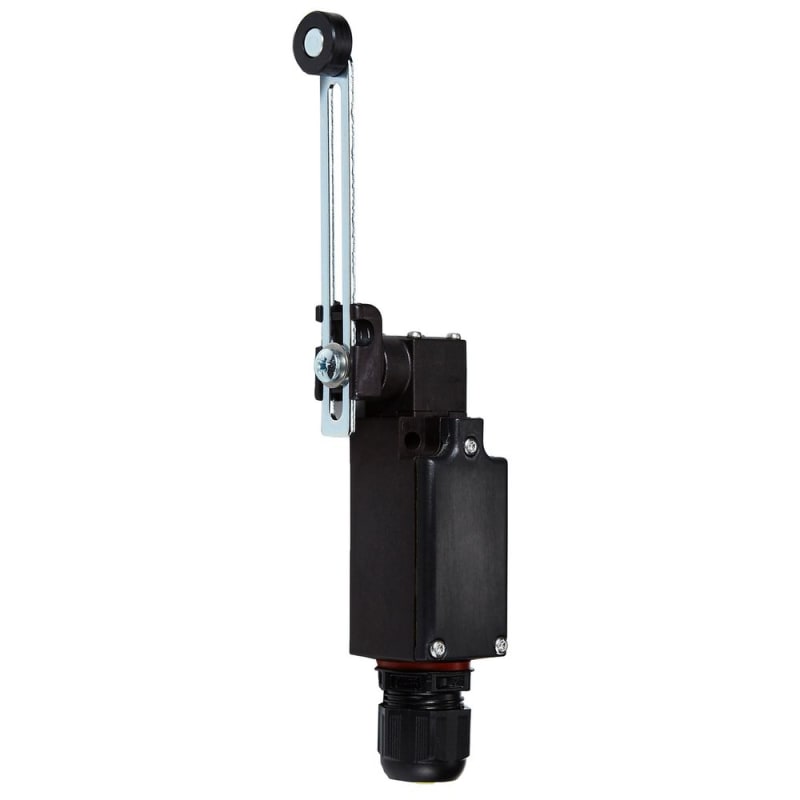

Ex Position Switch 8060/2-4-DS-60, adjustable rotary lever
Pricing
Request a quote
We reply within 24 hours
Product Description
R. Stahl Scandinavia As 268419 Ex position switch, adjustable rotary lever, type 8060/2-4-DS-60.
Technical Specifications
- Manufacturer part number (MPN)
- 268419
- EAN / GTIN
- 4046827158063
- Sales unit
- pcs
- Switching function
- Slow-action switch
- Rated operation current Ie at AC-15, 230 V
- 2 A
- Rated operation current Ie at DC-13, 230 V
- 2 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 2G
- Explosion safety category for dust
- ATEX dust-ex-protection, Cat. 2D
- Degree of protection (IP)
- IP66
- Type of control element
- Adjustable rotary lever
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at AC-15, 125 V
- 2 A
- Rated operation current Ie at AC-15, 24 V
- 2 A
- Rated operation current Ie at DC-13, 125 V
- 2 A
- Rated operation current Ie at DC-13, 24 V
- 2 A
- Width sensor
- 31 mm
- Height of sensor
- 46.4 mm
- Length of sensor
- 8.82 mm
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9032.89
Cross References
- EAN 4046827158063
- SAP 1200886620
- Code 84128646
Product Documentation
