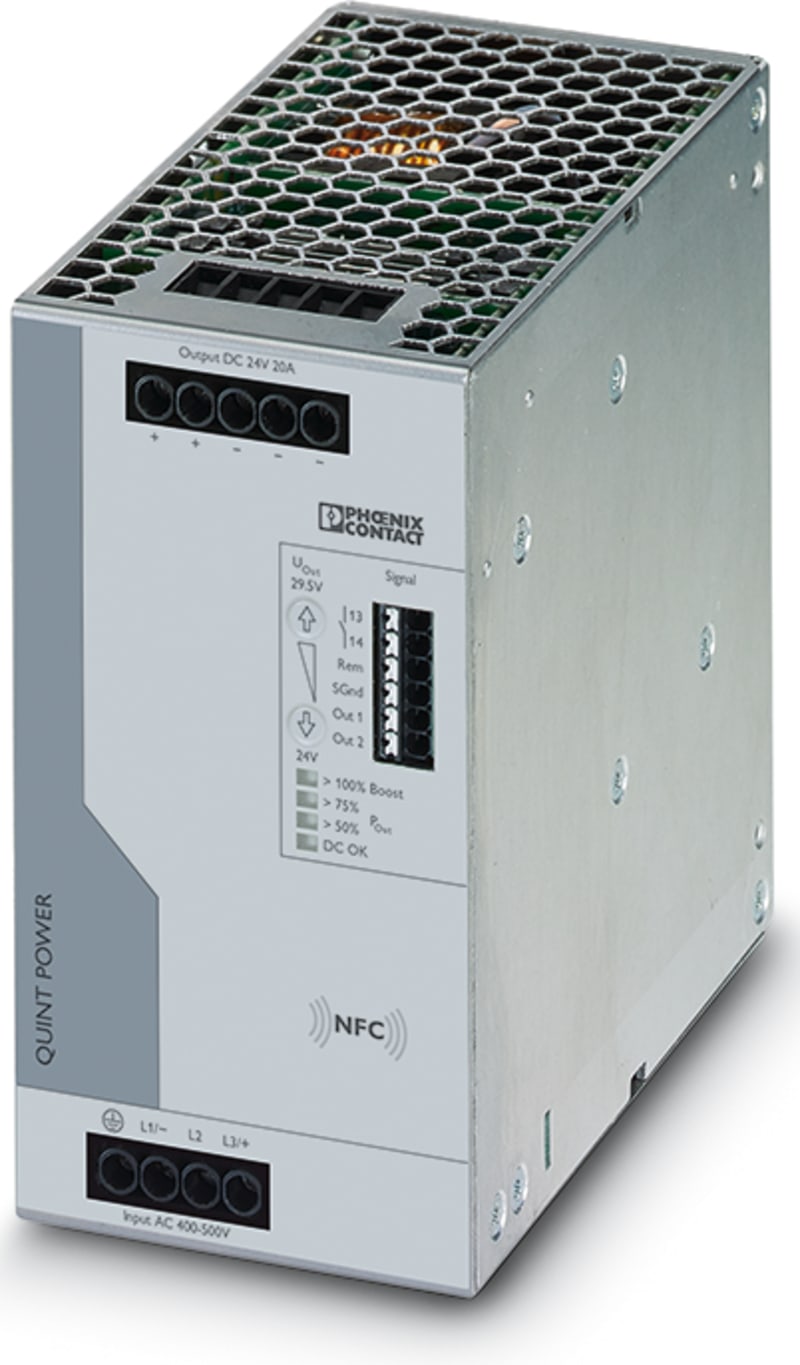

Power supply QUINT4-PS/3AC/24DC/20
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact QUINT4-PS/3AC/24DC/20 QUINT4-PS/3AC/24DC/20, Primary-switched power supply QUINT POWER with utgangskarakteristikk which can velges, SFB Technology.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT4-PS/3AC/24DC/20
- EAN / GTIN
- 4046356986885
- Sales unit
- pcs
- Voltage type (supply voltage)
- AC
- 1st secondary output voltage
- 24–29.5 V
- 2nd secondary output voltage
- 24–29.5 V
- 3rd secondary output voltage
- 24–29.5 V
- Max. output current 1
- 30 A
- Max. output current 2
- 25 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 20 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 400–500 V
- Rated supply voltage AC 60 Hz
- 400–500 V
- Rated supply voltage DC
- 260–780 V
- Output voltage stabilized
- Yes
- Power consumption
- 541 VA
- Power output
- 480 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 1
- Built-in width
- 122 mm
- Built-in height
- 130 mm
- Direct mounting possible
- No
- Width
- 70 mm
- Height
- 130 mm
- Depth
- 125 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4046356986885
- SAP 1000771666
- Code 81370856
Product Documentation
More from Phoenix Contact
Phoenix Contact
Monitoring Relay (EMD-BL-PH-480-PT)
Phoenix Contact
Component Terminal Block (PTTB 2,5-2DIO/O-UL/UR-UL)
Phoenix Contact
Marking Strip ZB6 LGS 151-160
ZB 6,LGS: 151-160
Phoenix Contact
Terminal Marking ZB6 251-260
ZB 6,LGS: 251-260
Phoenix Contact
Phoenix Contact MTK BU Knife-Disconnect Terminal Block, 0.2–2.5 mm², Blue
Phoenix Contact
Feed-Through Terminal Block (UK 35 BU)
Phoenix Contact
Feed-Through Terminal Block (XT 2,5 BU)
Phoenix Contact
TERMINAL PLUG-IN. 0,5-4 (xt 2,5-Twin)
XT 2,5-TWIN
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy QUINT4-PS/3AC/24DC/20?
- QUINT4-PS/3AC/24DC/20 can be ordered from cballast.com as a Phoenix Contact catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Phoenix Contact product?
- The manufacturer part number is QUINT4-PS/3AC/24DC/20.
- What is the HS code for QUINT4-PS/3AC/24DC/20?
- The customs tariff (HS) code for QUINT4-PS/3AC/24DC/20 is 8504.40.
- Who manufactures QUINT4-PS/3AC/24DC/20?
- QUINT4-PS/3AC/24DC/20 is a Phoenix Contact product in the Control & Automation range.
- Is a datasheet available for QUINT4-PS/3AC/24DC/20?
- Yes — the QUINT4-PS/3AC/24DC/20 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for QUINT4-PS/3AC/24DC/20?
- The minimum order quantity is 1.
- Is QUINT4-PS/3AC/24DC/20 available?
- Yes — QUINT4-PS/3AC/24DC/20 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
