Phoenix Contact

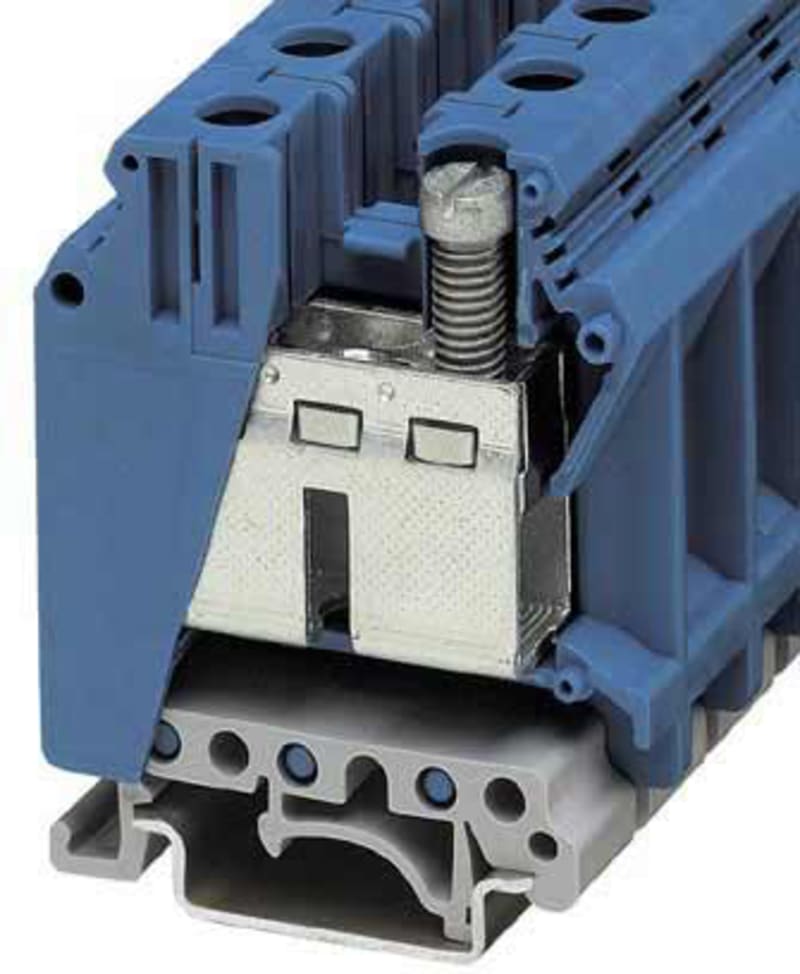

Feed-Through Terminal Block (UK 35 BU)
Part numberUK 35 BUEAN / GTIN4017918091569HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact UK 35 BU DIN-rail terminal Screw 0,75-35 Blue.
Technical Specifications
- Manufacturer part number (MPN)
- UK 35 BU
- EAN / GTIN
- 4017918091569
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Feed-Through Terminal Block
- Manufacturer order number
- 3008025
- Suitable for conductor material
- Aluminium/copper
- Connectable conductor cross section solid-core
- 0.75–50 mm²
- Connectable conductor cross section multi-wired
- 0.75–16 mm²
- Rated current In
- 125 A
- Rated voltage
- 1000 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–105 °C
- Width
- 15.1 mm
- Width/grid dimension
- 15.1 mm
- Height
- 50.3 mm
- Depth
- 60.9 mm
- Length
- 50 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- No
- Colour
- Blue
- Internally connected stages
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918091569
- SAP 1000029590
- Code 8219084
Product Documentation
Document preview: Feed-Through Terminal Block (UK 35 BU) — Specification sheet
More from Phoenix Contact
Phoenix Contact

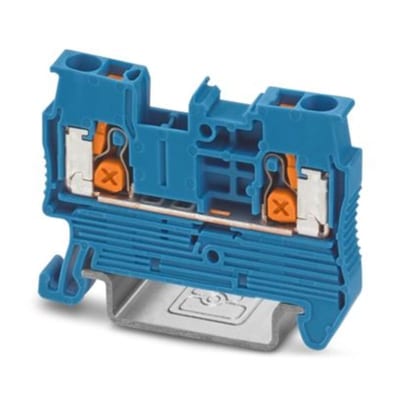

Feed-Through Terminal Block (XT 2,5 BU)
Phoenix Contact
TERMINAL PLUG-IN. 0,5-4 (xt 2,5-Twin)
XT 2,5-TWIN
Phoenix Contact

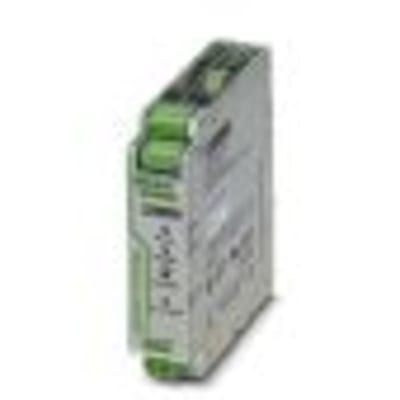

DC/DC Converter (QUINT-PS/48DC/24DC/ 5)
Phoenix Contact
Managed Ethernet-EKSTENDER, 30MBIT/s
TC EXTENDER 6004 ETH-2S
Phoenix Contact

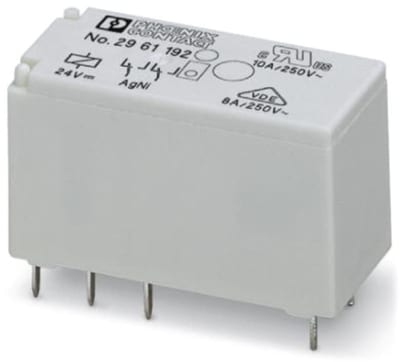

Reserve Relay 14mm (REL-MR-110DC/21-21)
Phoenix Contact

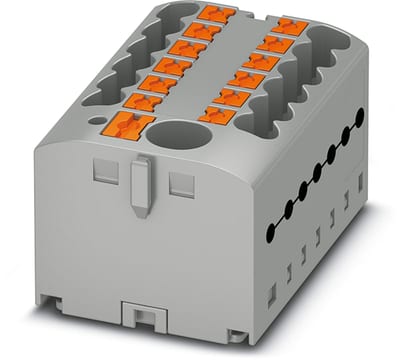

Distribution Block (PTFIX 6/12X2,5 GY)
Phoenix Contact

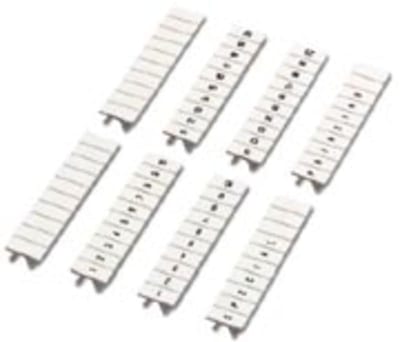

Marking Strip ZB 5 LGS 271-280
ZB 5,LGS: 271-280
Phoenix Contact

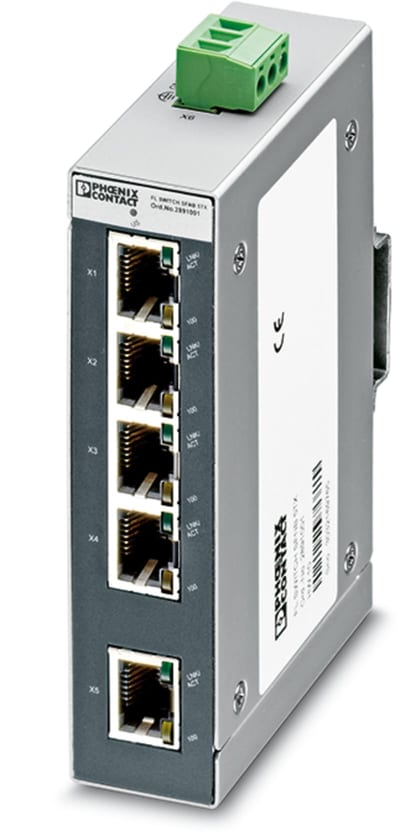

Industrial Ethernet Switch (FL SWITCH SFNB 5TX)
