Phoenix Contact

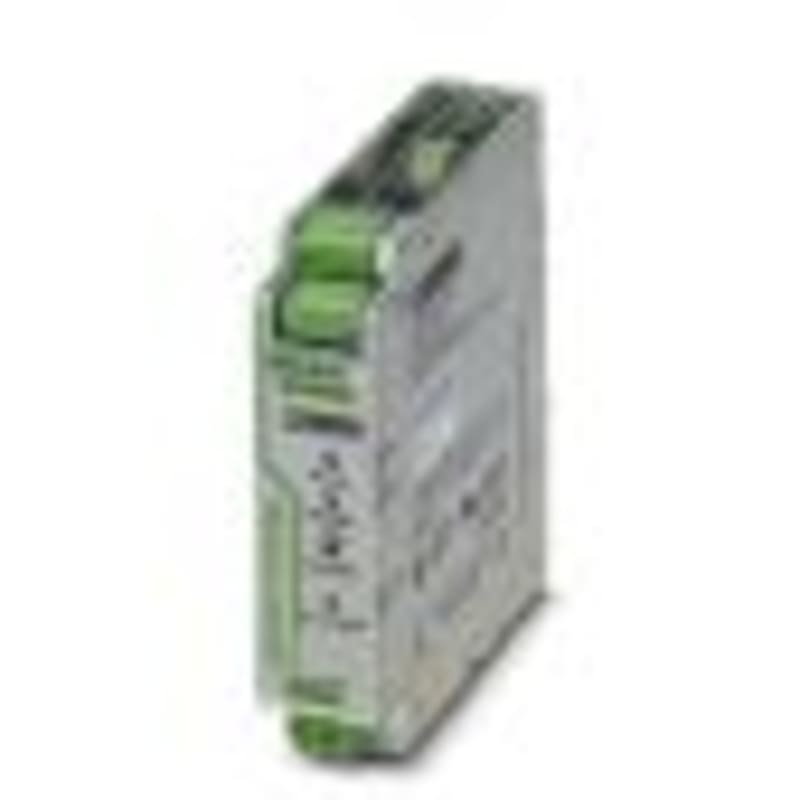

DC/DC Converter (QUINT-PS/48DC/24DC/ 5)
Part numberQUINT-PS/48DC/24DC/ 5EAN / GTIN4046356482257HS code8504.40
Control & Automation
Power Supplies
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact QUINT-PS/48DC/24DC/ 5 QUINT-PS/48DC/24DC/5.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT-PS/48DC/24DC/ 5
- EAN / GTIN
- 4046356482257
- Sales unit
- pcs
- Rated current
- 5 A
- Product type
- DC/DC Converter
- Manufacturer order number
- 2320144
- Voltage type (supply voltage)
- DC
- 1st secondary output voltage
- 18–29.5 V
- Max. output current 1
- 6.25 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 5 A
- Short-circuit-proof
- Yes
- Rated supply voltage DC
- 30–60 V
- Output voltage stabilized
- Yes
- Power output
- 120 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Built-in height
- 130 mm
- Direct mounting possible
- No
- Width
- 32 mm
- Height
- 130 mm
- Depth
- 125 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4046356482257
- SAP 1000656108
- Code 8224010
Product Documentation
Document preview: DC/DC Converter (QUINT-PS/48DC/24DC/ 5) — Specification sheet
