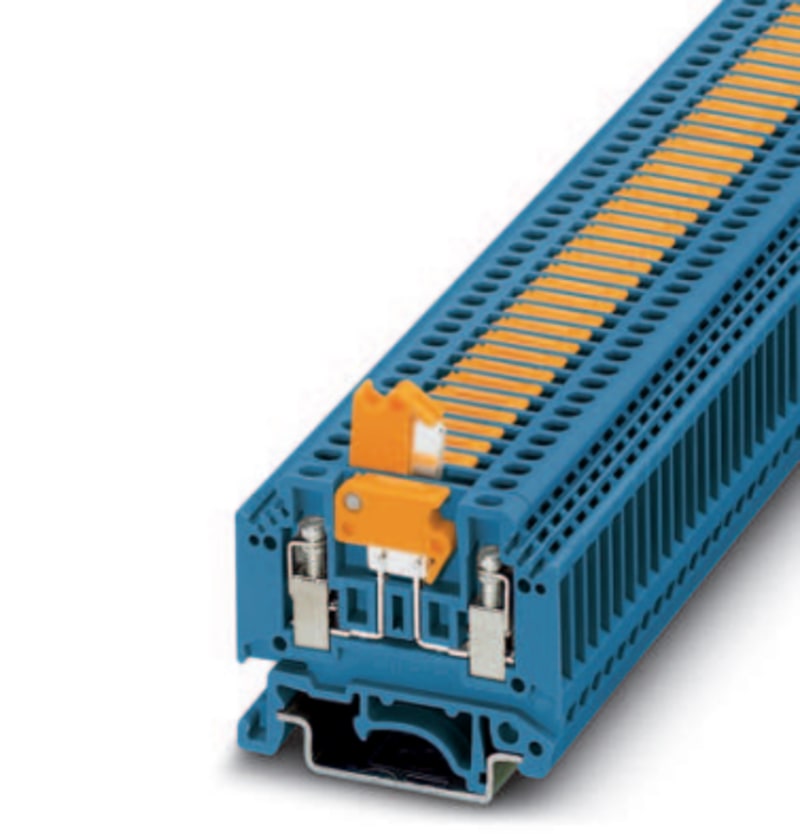

Phoenix Contact MTK BU Knife-Disconnect Terminal Block, 0.2–2.5 mm², Blue

Phoenix Contact MTK BU is a knife-disconnect terminal block with screw connection, accepting 0.2–4 mm² solid or 0.2–1.5 mm² stranded conductors. Rated at 16 A / 400 V with an operating range of -60 to 105 °C, it mounts on 35 mm DIN top-hat rail. The blue housing measures 5.2 x 46 x 51.5 mm on a 5.2 mm grid; supplied in packs of 50 and requires a closing plate. Country of origin: Germany.

Manufacturer part number (MPN)

MTK BU

EAN / GTIN

4017918092641

Sales unit

pcs

Package quantity

50 pcs

Connectable conductor cross section solid-core

0.2–4 mm²

Connectable conductor cross section multi-wired

0.2–1.5 mm²

Rated current In

16 A

Rated voltage

400 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

1

Number of clamp positions per level

2

Internally connected stages

Yes

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–105 °C

Width

5.2 mm

Width/grid dimension

5.2 mm

Height

46 mm

Depth

51.5 mm

Closing plate required

Yes

Colour

Blue

Type of cross disconnection

None

With integrated test socket

No

Length

46 mm

Country of origin

Germany

HS Code

8536.90

• EAN 4017918092641
• SAP 1000081952
• Code 8854202
