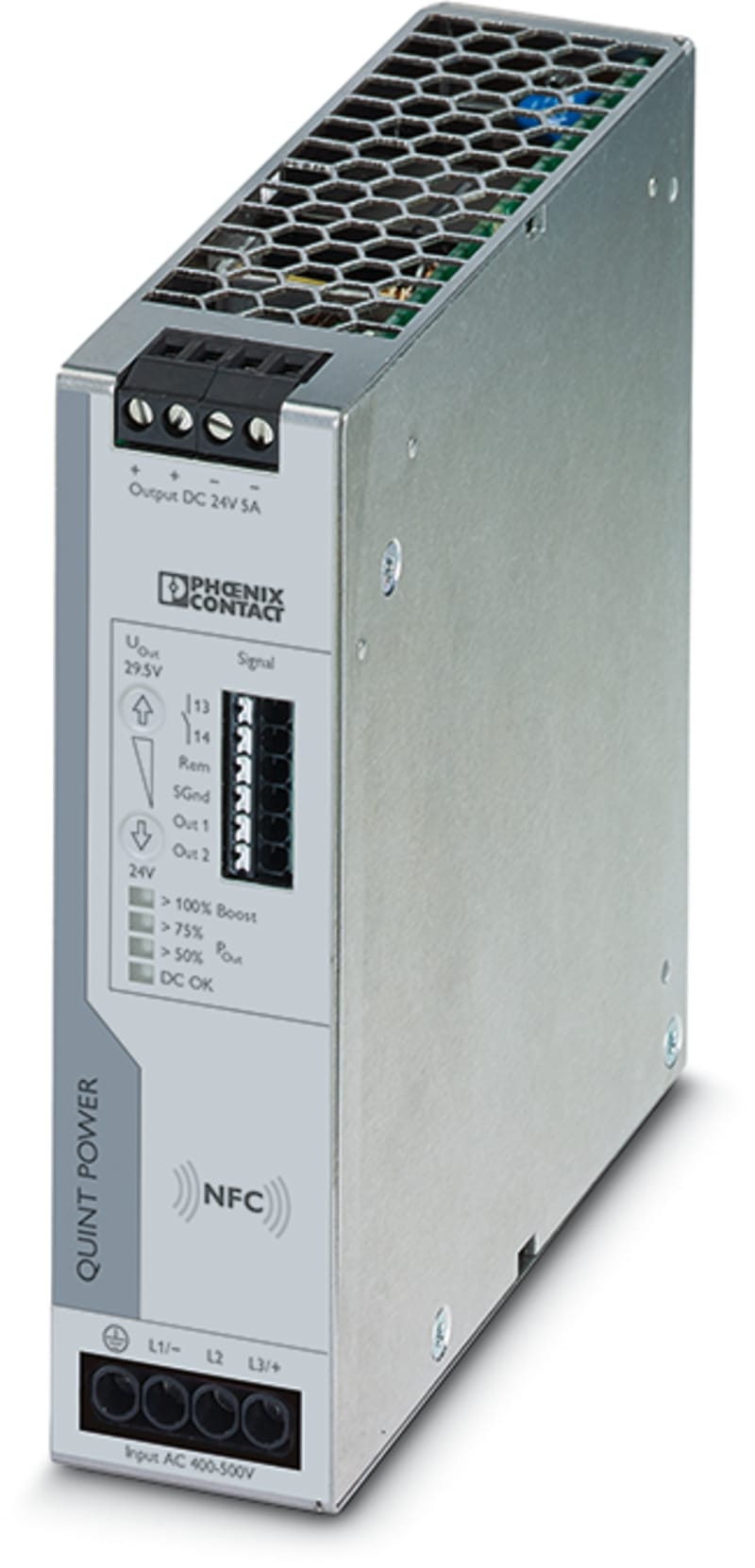

Phoenix Contact QUINT4-PS/3AC/24DC/5 Primary-Switched Power Supply 24 VDC 5 A
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact QUINT4-PS/3AC/24DC/5 is a primary-switched DIN-rail power supply delivering 24 V DC at 5 A nominal from a 3-phase 400-500 V AC input. Adjustable secondary output covers 24-29.5 V, with 120 W rated output power and short-circuit protection. Screw connection terminals; suitable for functional-safety applications; degree of protection IP20.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT4-PS/3AC/24DC/5
- EAN / GTIN
- 4046356985369
- Sales unit
- pcs
- Voltage
- 24 V DC
- Voltage type (supply voltage)
- AC
- 1st secondary output voltage
- 24–29.5 V
- 2nd secondary output voltage
- 24–29.5 V
- 3rd secondary output voltage
- 24–29.5 V
- Max. output current 1
- 10 A
- Max. output current 2
- 6.25 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 5 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 400–500 V
- Rated supply voltage AC 60 Hz
- 400–500 V
- Rated supply voltage DC
- 260–780 V
- Output voltage stabilized
- Yes
- Power consumption
- 283 VA
- Power output
- 120 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 1
- Built-in width
- 122 mm
- Built-in height
- 130 mm
- Direct mounting possible
- No
- Width
- 36 mm
- Height
- 130 mm
- Depth
- 125 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4046356985369
- SAP 1000771664
- Code 81370086
Product Documentation
More from Phoenix Contact
Phoenix Contact

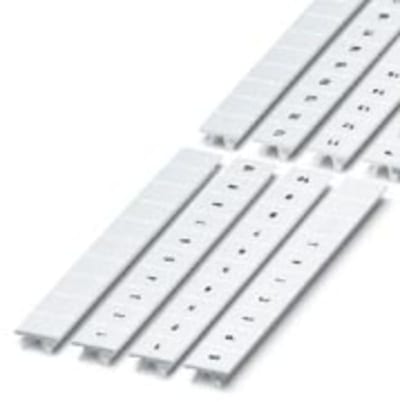

Marking Strip ZB10 LGS 11-20
ZB10,LGS: 11-20
Phoenix Contact

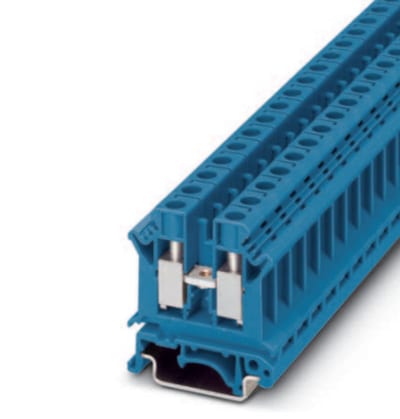

Feed-Through Terminal Block (UK 10 N BU)
