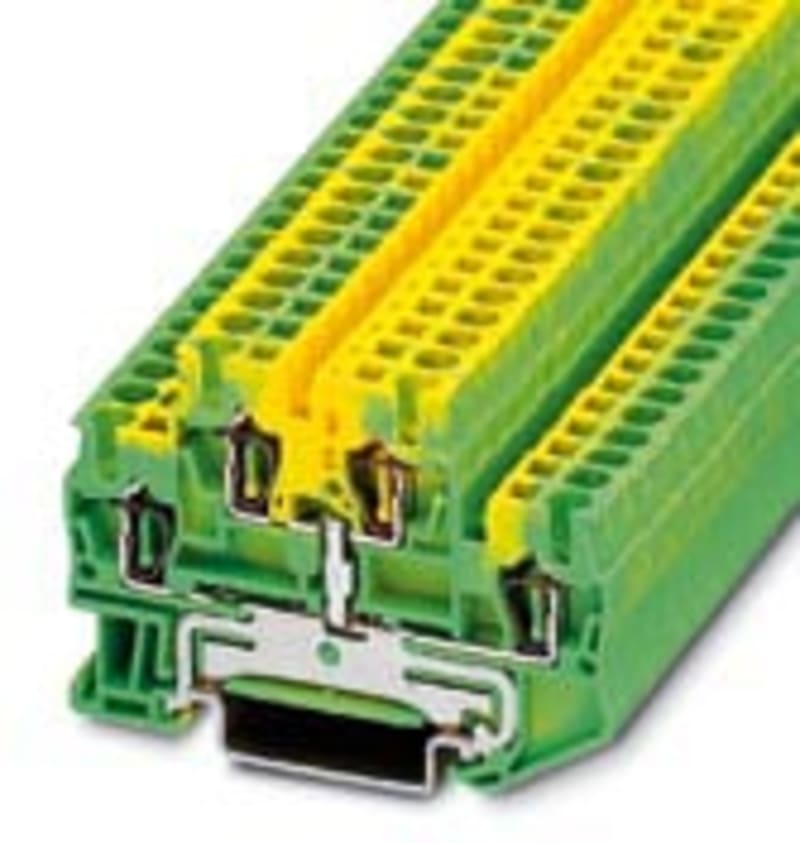

Phoenix Contact STTB 2,5-PE Two-Level Protective-Conductor Terminal Block
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact STTB 2,5-PE is a two-level protective-conductor (PE) terminal block with spring-cage connection on both levels for the top-mounted position. Conductor range 0.08-4 mm2 solid / 0.08-2.5 mm2 stranded; mounts on 35 mm DIN top-hat rail; width 5.2 mm; operating temperature -60 to 105 degrees C; green/yellow. Order number 3036026; requires a closing plate.
Technical Specifications
- Manufacturer part number (MPN)
- STTB 2,5-PE
- EAN / GTIN
- 4017918817282
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Protective-Conductor Double-Level Terminal Block
- Manufacturer order number
- 3036026
- PEN function possible
- No
- Connectable conductor cross section solid-core
- 0.08–4 mm²
- Connectable conductor cross section multi-wired
- 0.08–2.5 mm²
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Clip connection
- Connection position
- Atop
- Number of levels
- 2
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–105 °C
- Width
- 5.2 mm
- Width/grid dimension
- 5.2 mm
- Height
- 67.5 mm
- Depth
- 47.5 mm
- Length
- 67.5 mm
- Closing plate required
- Yes
- Colour
- Green/yellow
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918817282
- SAP 1000235312
- Code 81013489
Product Documentation
