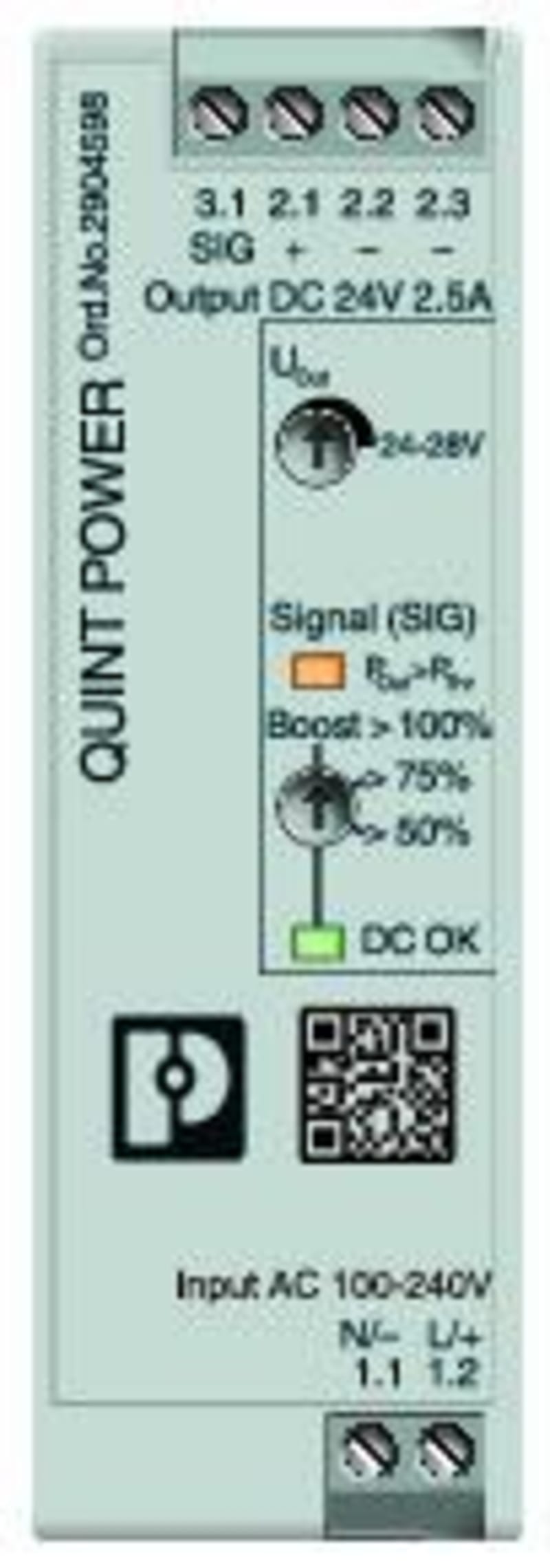

Phoenix Contact QUINT4-PS/1AC/24DC/2.5/SC Primary-Switched Power Supply 24 VDC 2.5 A
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact QUINT4-PS/1AC/24DC/2.5/SC is a primary-switched DIN-rail power supply providing a stabilised, adjustable 24 V DC output at 2.5 A nominal (60 W) from a single-phase AC input. It is short-circuit-proof with SC output characteristic and screw connection, occupying 32 mm width for compact control-panel installations. Applications include machine and industrial control, safety-relevant circuits, and process automation with IP20 protection.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT4-PS/1AC/24DC/2.5/SC
- EAN / GTIN
- 4055626156040
- Sales unit
- pcs
- Voltage
- 24 V DC
- Voltage type (supply voltage)
- AC/DC
- 2nd secondary output voltage
- 24–28 V
- Max. output current 1
- 5 A
- Max. output current 2
- 3 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output voltage 2
- 24 V
- Nominal value output current 1
- 2.5 A
- Short-circuit-proof
- Yes
- Output voltage stabilized
- Yes
- Power consumption
- 71 VA
- Power output
- 60 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 1
- Built-in width
- 32 mm
- Built-in height
- 99 mm
- Direct mounting possible
- No
- Width
- 32 mm
- Height
- 99 mm
- Depth
- 90 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Vietnam
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4055626156040
- SAP 1200489101
- Code 82577822
Product Documentation
