Phoenix Contact

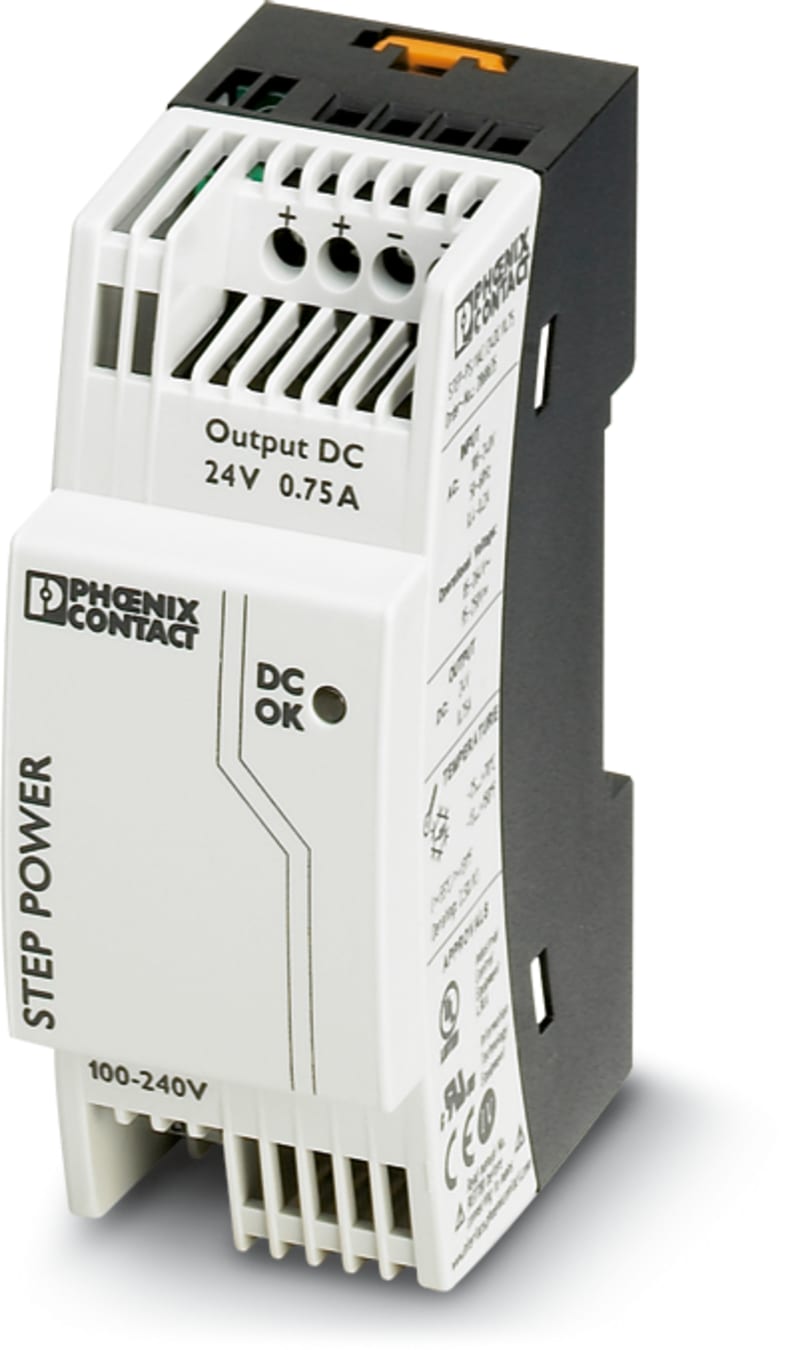

Power Supply 24VDC 0.75A
Part numberSTEP-PS/ 1AC/24DC/0.75EAN / GTIN4046356165297HS code8504.40
Control & Automation
Power Supplies
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact STEP-PS/ 1AC/24DC/0.75 STEP-PS/1AC/24DC/0.75.
Technical Specifications
- Manufacturer part number (MPN)
- STEP-PS/ 1AC/24DC/0.75
- EAN / GTIN
- 4046356165297
- Sales unit
- pcs
- Voltage
- 24 V DC
- Voltage type (supply voltage)
- AC
- 1st secondary output voltage
- 24 V
- 2nd secondary output voltage
- 24 V
- Max. output current 1
- 0.75 A
- Max. output current 2
- 0.83 A
- Max. output current 3
- 1.4 A
- Secondary voltage adjustable
- No
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 0.75 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 100–240 V
- Rated supply voltage AC 60 Hz
- 100–264 V
- Rated supply voltage DC
- 95–250 V
- Output voltage stabilized
- Yes
- Power consumption
- 36.9 VA
- Power output
- 18 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- Yes
- Suitable for distribution board
- Yes
- Width in number of modular spacings
- 2
- Built-in width
- 36 mm
- Built-in height
- 90 mm
- Direct mounting possible
- Yes
- Width
- 36 mm
- Height
- 90 mm
- Depth
- 61 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- Yes
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4046356165297
- SAP 1000507358
- Code 8915325
Product Documentation
Document preview: Power Supply 24VDC 0.75A (step-PS/ 1AC/24DC/0.75) — Specification sheet
