Phoenix Contact
GRENSEVERDIKOBL. In/U - Relay
Part numberMINI MCR-SL-UI-RELEAN / GTIN4017918974879HS code8536.90
Control & Automation
Relays & Timers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

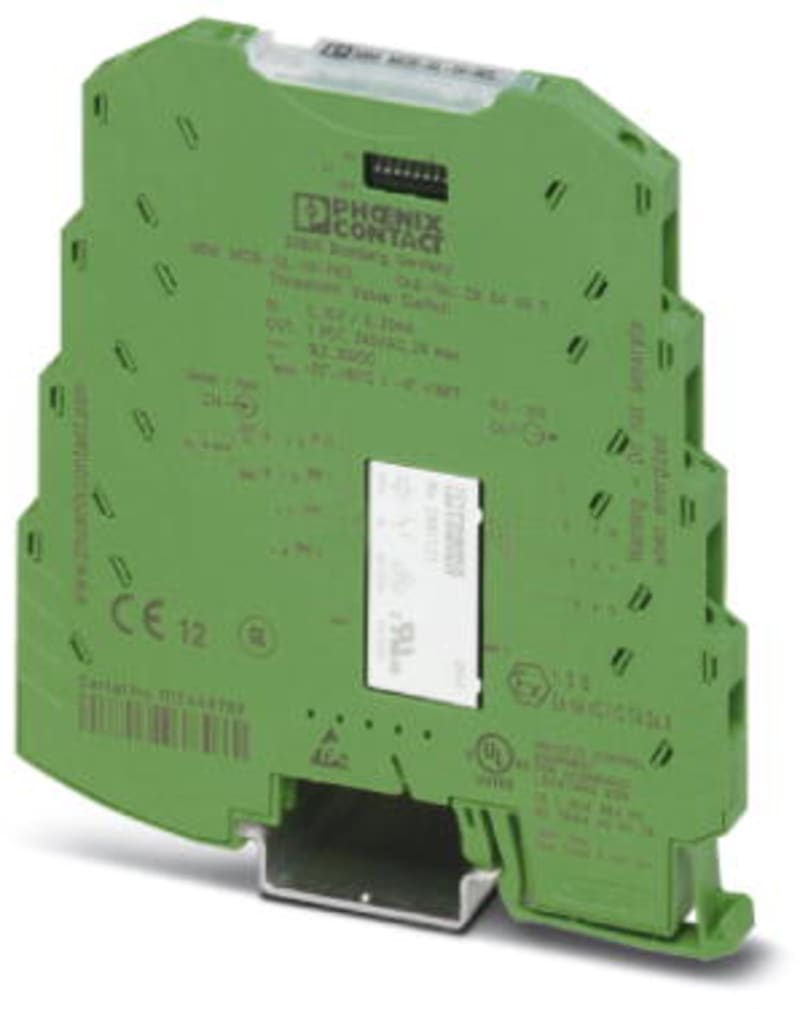

Phoenix Contact MINI MCR-SL-UI-REL.
Technical Specifications
- Manufacturer part number (MPN)
- MINI MCR-SL-UI-REL
- EAN / GTIN
- 4017918974879
- HS code
- 8536.90
- Sales unit
- pcs
- Product type
- Limit Value Switches
- Manufacturer order number
- 2864480
- Rated supply voltage AC
- 19.2 V
- Rated supply voltage DC
- 19.2–30 V
- Number of input ranges 0 V ... 10 V
- 1
- Number of input ranges 0 mA ... 20 mA
- 1
- Switching voltage
- 250 V
- Switching power
- 0.33 VA
- Number of channels
- 1
- Malfunction message output
- No
- Inherently safe according to EN 60947-5-6 NAMUR
- No
- Galvanic separation between inputs
- No
- Galvanic separation between input and output
- No
- Galvanic separation between output to output
- No
- SIL according to IEC 61508
- None
- Height
- 93.1 mm
- Width
- 6.2 mm
- Depth
- 101.2 mm
- Power consumption
- 0.33 W
- Operating temperature
- -20–65 °C
- Temperature drift
- 0.02 %/K
- Construction type of device
- Built-in device
- Type of electric connection
- Screw connection
- Mounting method
- Snap mounting support rail
- Degree of protection (IP)
- IP20
- Device construction
- Built-in device
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918974879
- SAP 1000360068
- Code 873000
Product Documentation
Document preview: GRENSEVERDIKOBL. In/U - Relay (mini MCR-SL-UI-Rel) — Specification sheet
