Power supply - UNO-PS/1AC/24DC/30W
Pricing
Request a quote
We reply within 24 hours
Product Description

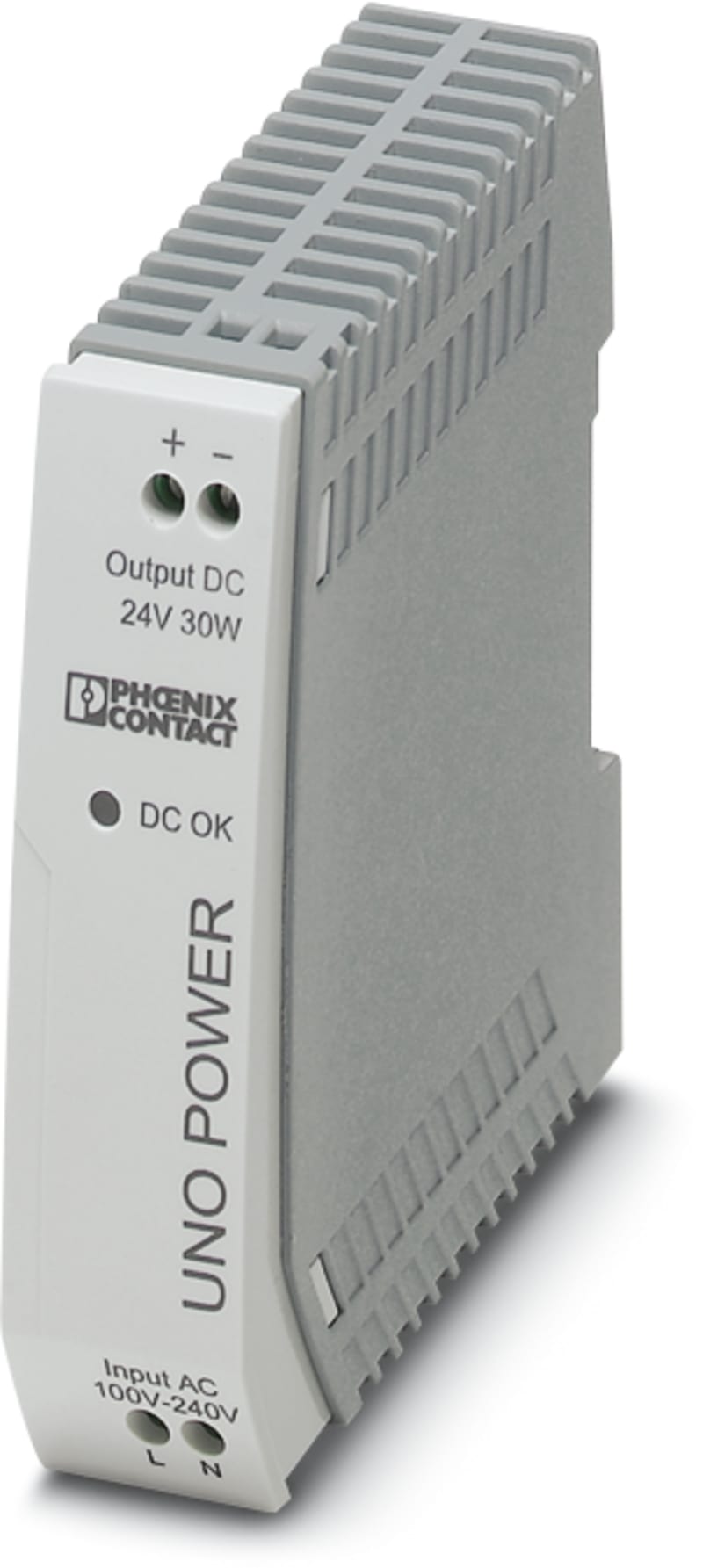

Phoenix Contact UNO-PS/1AC/24DC/ 30W Primary-switched power supply UNO POWER for rail mounting, input 1-phase, output 24 V DC / 30 W.
Technical Specifications
- Manufacturer part number (MPN)
- UNO-PS/1AC/24DC/ 30W
- EAN / GTIN
- 4046356729192
- Sales unit
- pcs
- Power
- 30 W
- Product type
- Power Supply Unit
- Manufacturer order number
- 2902991
- Voltage type (supply voltage)
- AC
- 1st secondary output voltage
- 24 V
- 2nd secondary output voltage
- 24 V
- Max. output current 1
- 1.25 A
- Secondary voltage adjustable
- No
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 1.25 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 85–240 V
- Rated supply voltage AC 60 Hz
- 100–264 V
- Output voltage stabilized
- Yes
- Power consumption
- 72.1 VA
- Power output
- 30 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 1.3
- Built-in width
- 22.5 mm
- Built-in height
- 90 mm
- Direct mounting possible
- No
- Width
- 22.5 mm
- Height
- 90 mm
- Depth
- 84 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4046356729192
- SAP 1000350462
- Code 81126838
