Phoenix Contact MPT 1,5/S-PE Mini PE Feed-Through Terminal Block 1.5 mm-squared
Pricing
Request a quote
We reply within 24 hours
Product Description
The Phoenix Contact MPT 1,5/S-PE is a mini protective-earth feed-through terminal block with two clamp positions on a single level and screw connection on both sides. It accepts solid and stranded conductors from 0.14 to 1.5 mm-squared, mounts on NS 15 DIN rail, and is coloured green-yellow to identify the PE function. The 3.5 mm width supports high-density earthing rows in signal and instrumentation cabinets across an operating range of -60 to 110 degrees C.
Technical Specifications
- Manufacturer part number (MPN)
- MPT 1,5/S-PE
- EAN / GTIN
- 4046356768672
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Mini Ground Terminal Block
- Manufacturer order number
- 3248110
- PEN function possible
- No
- Connectable conductor cross section solid-core
- 0.14–1.5 mm²
- Connectable conductor cross section multi-wired
- 0.14–1.5 mm²
- Connection position
- Sideways
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 15 mm
- Operating temperature
- -60–110 °C
- Width
- 3.5 mm
- Width/grid dimension
- 3.5 mm
- Height
- 33.55 mm
- Depth
- 27.35 mm
- Length
- 33.55 mm
- Closing plate required
- Yes
- Colour
- Green/yellow
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4046356768672
- SAP 1000667092
- Code 8520474
Product Documentation
More from Phoenix Contact
Phoenix Contact
Power supply - QUINT-PS/1AC/24DC/3.5
QUINT-PS/1AC/24DC/ 3.5
Phoenix Contact
Cable Marker WRAP 14mm White (wml 14 (25X19)r)
WML 14 (25X19)R
Phoenix Contact
Phoenix Contact TRIO-UPS-2G/3AC/24DC/20
Phoenix Contact
Phoenix Contact UKH 50 Screw-Connect Feed-Through Terminal Block 150 A 1000 V
UKH 50
Phoenix Contact
Marker for Terminal Blocks (UC-TMF 5)
UC-TMF 5
Phoenix Contact
EV-T2CCS-MF-M4X45 (1081734)
Phoenix Contact

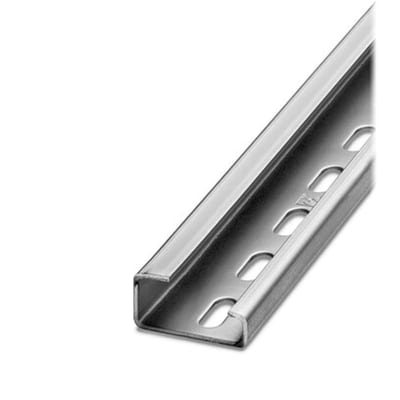

DIN Rail, Perforated (NS 32 PERF 2000MM-VPE 10)
Phoenix Contact

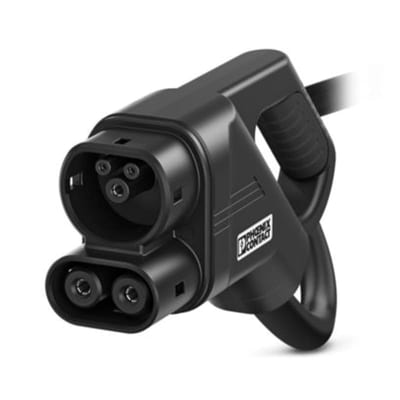

EV-T2M4CC-DC200A-8,0M50ESBK11 (1106959)
