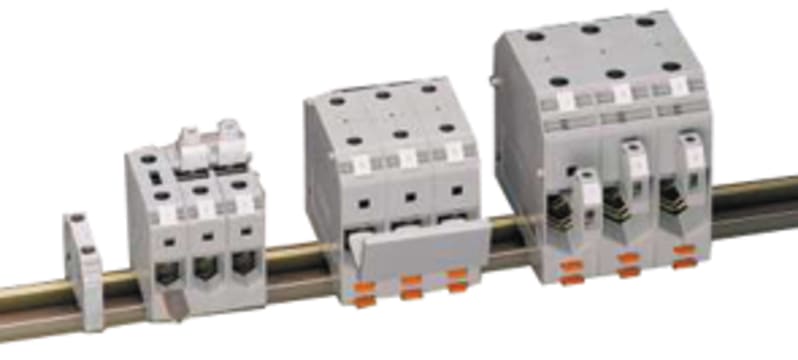

Phoenix Contact UKH 50 Screw-Connect Feed-Through Terminal Block 150 A 1000 V

Phoenix Contact UKH 50 is a heavy-current feed-through terminal block with screw connections on both sides, rated 150 A at 1000 V for aluminium or copper conductors of 16-70 mm-squared solid or 10-16 mm-squared stranded. The 20 mm-wide block mounts on 35 mm DIN rail, is 70.5 mm high, is Ex-e certified and operates from -60 to +110 degrees C. Typical use is main-current distribution in switchgear, control cabinets and hazardous-area enclosures.

Manufacturer part number (MPN)

UKH 50

EAN / GTIN

4017918091644

Sales unit

pcs

Package quantity

10 pcs

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

16–70 mm²

Connectable conductor cross section multi-wired

10–16 mm²

Rated current In

150 A

Rated voltage

1000 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Operating temperature

-60–110 °C

Width

20 mm

Width/grid dimension

20 mm

Height

70.5 mm

Depth

76 mm

Length

70.5 mm

Explosion-tested version 'Ex e'

Yes

Closing plate required

No

Colour

Grey

Internally connected stages

Yes

Country of origin

China

HS Code

8536.90

• EAN 4017918091644
• SAP 1000044982
• Code 8826373
