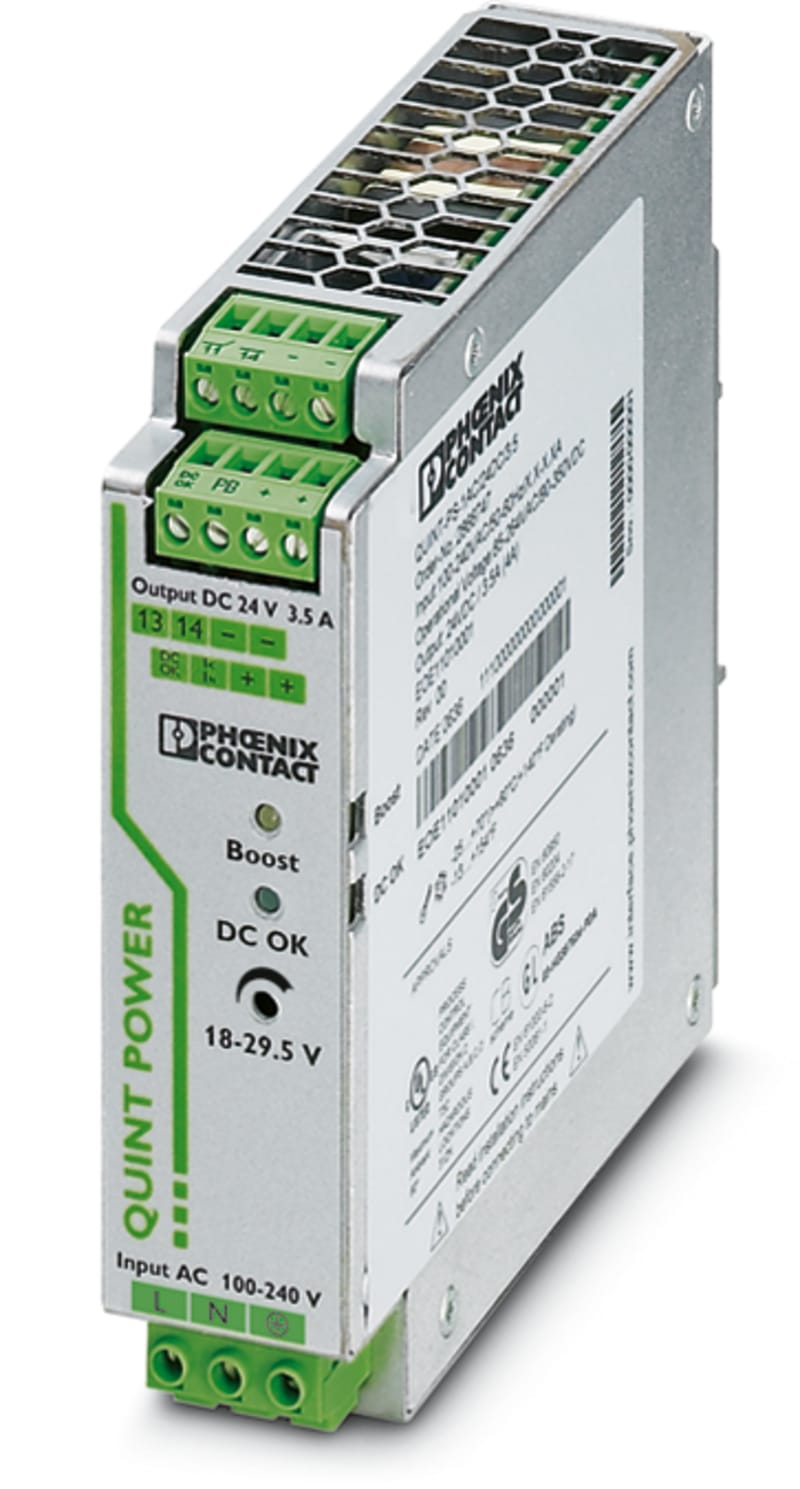

Power supply - QUINT-PS/1AC/24DC/3.5
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact QUINT-PS/1AC/24DC/ 3.5 Primary-switched power supply, QUINT POWER, Screw connection, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V D.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT-PS/1AC/24DC/ 3.5
- EAN / GTIN
- 4046356113779
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage type (supply voltage)
- AC/DC
- 1st secondary output voltage
- 18–29.5 V
- 2nd secondary output voltage
- 18 V
- Max. output current 1
- 4 A
- Max. output current 2
- 4 A
- Max. output current 3
- 15 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 3.5 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 85–240 V
- Rated supply voltage AC 60 Hz
- 100–264 V
- Rated supply voltage DC
- 90–350 V
- Output voltage stabilized
- Yes
- Power consumption
- 180 VA
- Power output
- 84 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 1.8
- Built-in width
- 32 mm
- Built-in height
- 130 mm
- Direct mounting possible
- No
- Width
- 32 mm
- Height
- 130 mm
- Depth
- 125 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4046356113779
- SAP 1000235792
- Code 81290785
Product Documentation
More from Phoenix Contact
Phoenix Contact
Cable Marker WRAP 14mm White (wml 14 (25X19)r)
WML 14 (25X19)R
Phoenix Contact
Phoenix Contact TRIO-UPS-2G/3AC/24DC/20
Phoenix Contact
Phoenix Contact UKH 50 Screw-Connect Feed-Through Terminal Block 150 A 1000 V
UKH 50
Phoenix Contact
Marker for Terminal Blocks (UC-TMF 5)
UC-TMF 5
Phoenix Contact
EV-T2CCS-MF-M4X45 (1081734)
Phoenix Contact
DIN Rail, Perforated (NS 32 PERF 2000MM-VPE 10)
Phoenix Contact
EV-T2M4CC-DC200A-8,0M50ESBK11 (1106959)
Phoenix Contact
Coupling Relay (PSR-SCF- 24UC/URM/2X21)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy QUINT-PS/1AC/24DC/ 3.5?
- QUINT-PS/1AC/24DC/ 3.5 can be ordered from cballast.com as a Phoenix Contact catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Phoenix Contact product?
- The manufacturer part number is QUINT-PS/1AC/24DC/ 3.5.
- What is the HS code for QUINT-PS/1AC/24DC/ 3.5?
- The customs tariff (HS) code for QUINT-PS/1AC/24DC/ 3.5 is 8536.90.
- Who manufactures QUINT-PS/1AC/24DC/ 3.5?
- QUINT-PS/1AC/24DC/ 3.5 is a Phoenix Contact product in the Control & Automation range.
- Is a datasheet available for QUINT-PS/1AC/24DC/ 3.5?
- Yes — the QUINT-PS/1AC/24DC/ 3.5 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for QUINT-PS/1AC/24DC/ 3.5?
- The minimum order quantity is 1.
- Is QUINT-PS/1AC/24DC/ 3.5 available?
- Yes — QUINT-PS/1AC/24DC/ 3.5 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
