Power supply TRIO-PS-2G/3AC/24DC/10
Pricing
Request a quote
We reply within 24 hours
Product Description

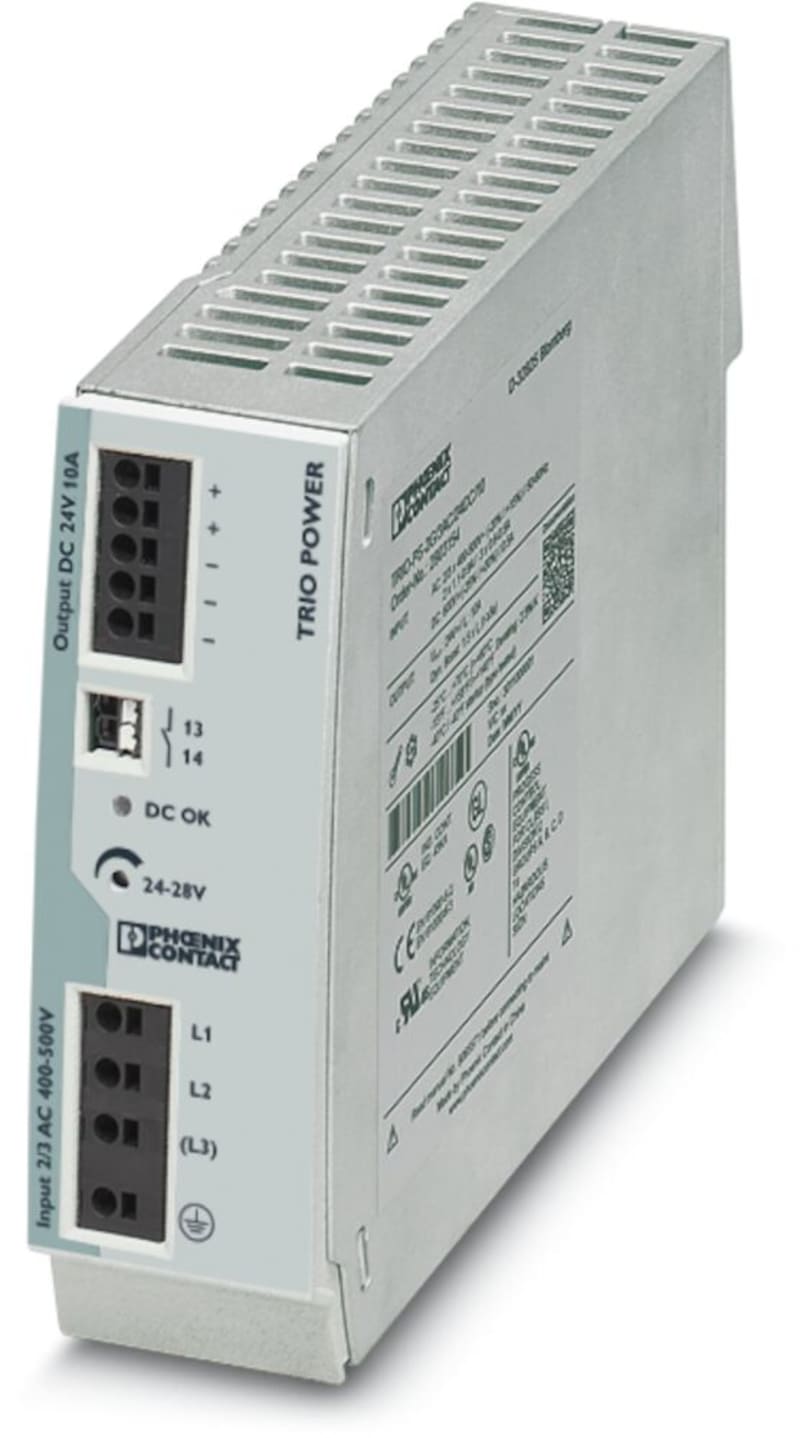

Phoenix Contact TRIO-PS-2G/3AC/24DC/10 Primary-switched power supply TRIO POWER with push-in-connection for rail mounting, input three-phase, output 24 V DC / 10 A.
Technical Specifications
- Manufacturer part number (MPN)
- TRIO-PS-2G/3AC/24DC/10 EAN / GTIN: 4046356960953 Sales unit: pcs Product type: Power Supply Unit Manufacturer order number: 2903154 Voltage type (supply voltage): AC 1st secondary output voltage: 24–28 V 2nd secondary output voltage: 24 V Max. output current 1: 15 A Max. output current 2: 15 A Secondary voltage adjustable: Yes Nominal value output voltage 1: 24 V Nominal value output current 1: 10 A Short-circuit-proof: Yes Rated supply voltage AC 50 Hz: 320–575 V Rated supply voltage AC 60 Hz: 320–500 V Output voltage stabilized: Yes Power consumption: 451.7 VA Power output: 240 W Stabilized: Yes Suitable for rail mounting: Yes Wall mounting possible: No Suitable for distribution board: No Width in number of modular spacings: 2.3 Built-in width: 42 mm Built-in height: 130 mm Direct mounting possible: No Width: 42 mm Height: 130 mm Depth: 160 mm Suitable for safety functions: Yes SIL according to IEC 61508: None Performance level according to EN ISO 13849-1: None Degree of protection (IP): IP20 Suitable for wall mounting: No Country of origin: China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4046356960953
- SAP 1000698355
- Code 8311805
