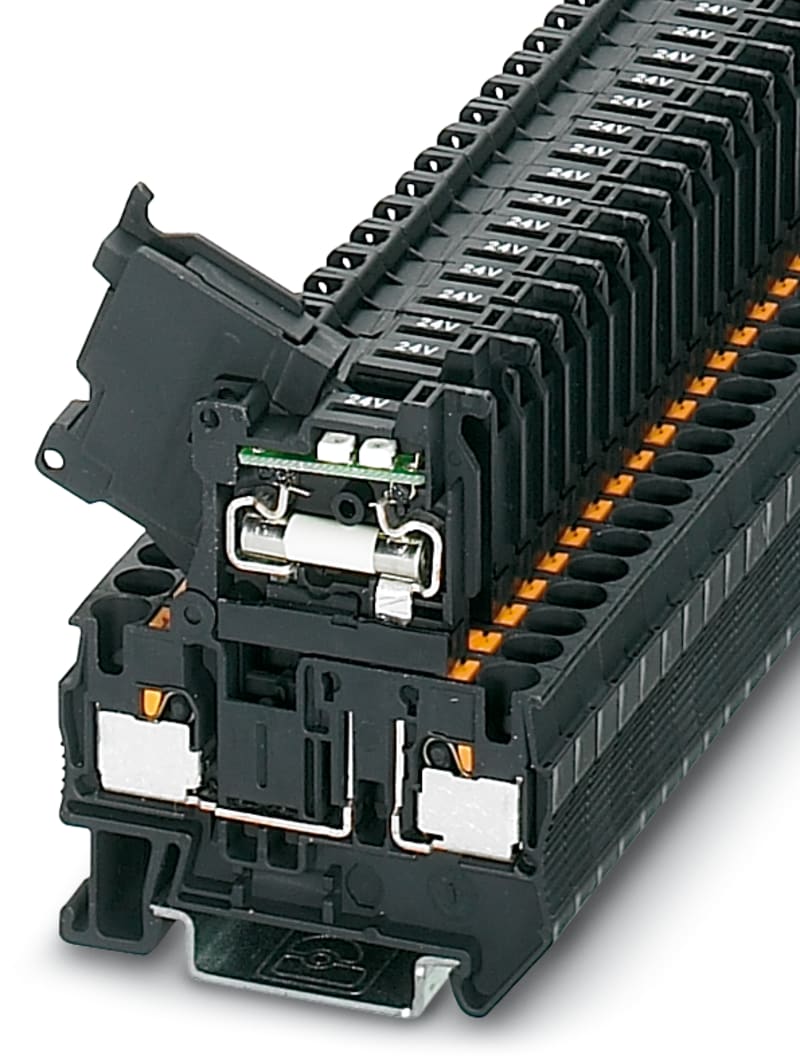

Fuse Modular Terminal Block (PT 4-Hesiled 24 (5X20))
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact PT 4-HESILED 24 (5X20) PT 4-HESILED 24 (5X20).
Technical Specifications
- Manufacturer part number (MPN)
- PT 4-HESILED 24 (5X20)
- EAN / GTIN
- 4046356482530
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Fuse Modular Terminal Block
- Manufacturer order number
- 3211903
- Type of indication element for defect indication
- LED
- Supply voltage for defect-indication
- 12–30 V
- Voltage type for defect indication
- AC/DC
- Connectable conductor cross section solid-core
- 0.2–6 mm²
- Connectable conductor cross section multi-wired
- 0.2–4 mm²
- Rated current In
- 6.3 A
- Rated voltage
- 24 V
- Number of levels
- 1
- Mounting method
- DIN rail (top hat rail) 35 mm
- Connection position
- Atop
- Operating temperature
- 105 °C
- Width
- 6.15 mm
- Width/grid dimension
- 6.2 mm
- Height
- 55.9 mm
- Depth
- 63.38 mm
- Closing plate required
- Yes
- Length
- 56 mm
- Colour
- Black
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4046356482530
- SAP 1000235824
- Code 81266765
Product Documentation
More from Phoenix Contact
Phoenix Contact

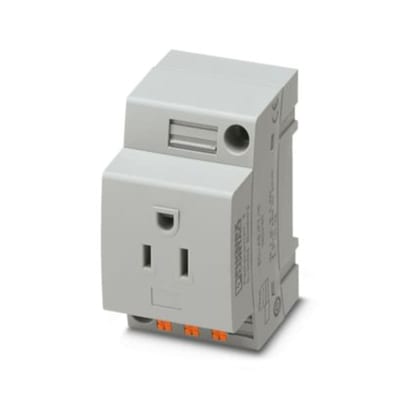

Socket OUTLET, TYPE AB, Spring
EO-AB/PT/15
Phoenix Contact

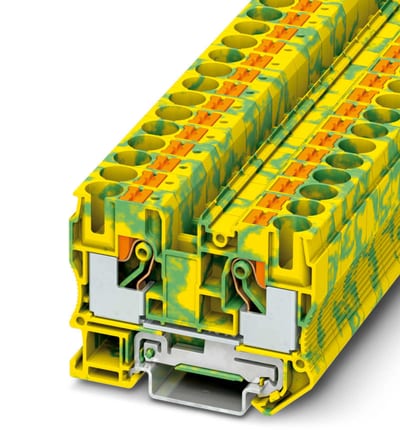

Earthing Terminal block PT 10-Pe
PT 10-PE
Phoenix Contact
M8 Cable - 3PIN,1.0M,PUR
SAC-3P-M 8MS/ 1,0-PUR/M 8FS
Phoenix Contact

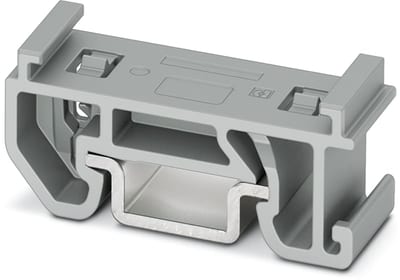

DIN Rail Adapter (PTFIX-NS15A)
Phoenix Contact
Motstandstermometer-measuring converter (MINI MCR-SL-PT100-UI-NC)
Phoenix Contact

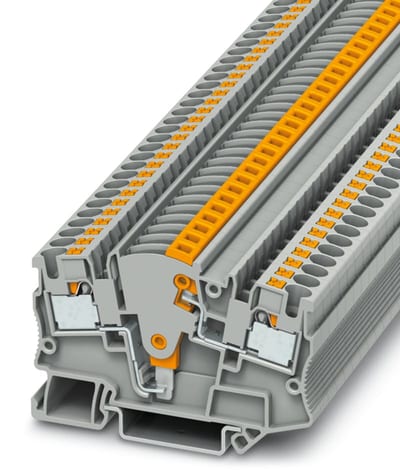

Phoenix Contact PTME 4 Spring-Cage Test-Disconnect Terminal 4 mm²
Phoenix Contact

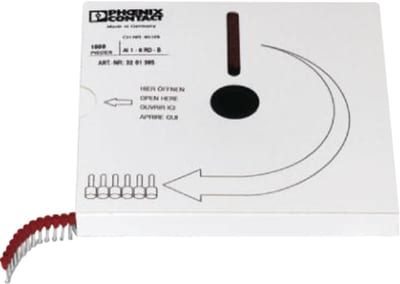

END Ferrule ON Strap 2,5 mm²
AI 2,5 - 8 BU-B
Phoenix Contact

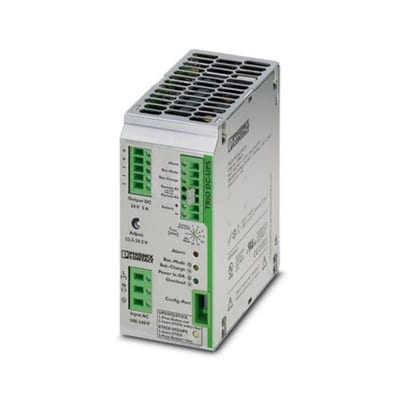

Uninterruptible Power Supply (TRIO-UPS/1AC/24DC/ 5)
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy PT 4-HESILED 24 (5X20)?
- PT 4-HESILED 24 (5X20) can be ordered from cballast.com as a Phoenix Contact catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Phoenix Contact product?
- The manufacturer part number is PT 4-HESILED 24 (5X20).
- What is the HS code for PT 4-HESILED 24 (5X20)?
- The customs tariff (HS) code for PT 4-HESILED 24 (5X20) is 8536.90.
- Who manufactures PT 4-HESILED 24 (5X20)?
- PT 4-HESILED 24 (5X20) is a Phoenix Contact product in the Electrical Components range.
- Is a datasheet available for PT 4-HESILED 24 (5X20)?
- Yes — the PT 4-HESILED 24 (5X20) datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for PT 4-HESILED 24 (5X20)?
- The minimum order quantity is 1.
- Is PT 4-HESILED 24 (5X20) available?
- Yes — PT 4-HESILED 24 (5X20) is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
