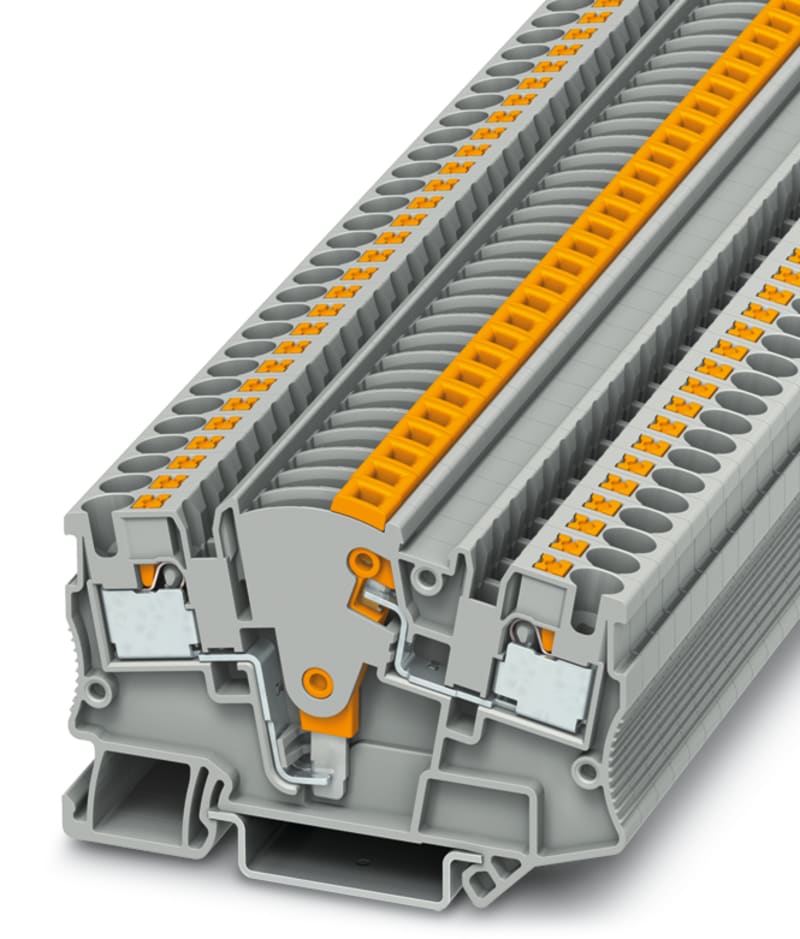

Phoenix Contact PTME 4 Spring-Cage Test-Disconnect Terminal 4 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Push-in spring-cage test-disconnect terminal block for DIN rail (35 mm top-hat) with a rated cross section of 4 mm², rated current 24 A and rated voltage 500 V. Two clamp positions per level are internally connected across a single level, and the two poles are lever-actuated for isolation and testing. Width is 6.2 mm; closing plate required.
Technical Specifications
- Manufacturer part number (MPN)
- PTME 4
- EAN / GTIN
- 4046356512725
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Connectable conductor cross section solid-core
- 0.2–6 mm²
- Connectable conductor cross section multi-wired
- 0.2–4 mm²
- Rated current In
- 24 A
- Rated voltage
- 500 V
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Internally connected stages
- Yes
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–105 °C
- Width
- 6.2 mm
- Width/grid dimension
- 6.2 mm
- Height
- 70.5 mm
- Depth
- 48.8 mm
- Closing plate required
- Yes
- Colour
- Grey
- With integrated test socket
- No
- Length
- 70.5 mm
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4046356512725
- SAP 1000657236
- Code 8477629
Product Documentation
More from Phoenix Contact
Phoenix Contact
END Ferrule ON Strap 2,5 mm²
AI 2,5 - 8 BU-B
Phoenix Contact
Uninterruptible Power Supply (TRIO-UPS/1AC/24DC/ 5)
Phoenix Contact

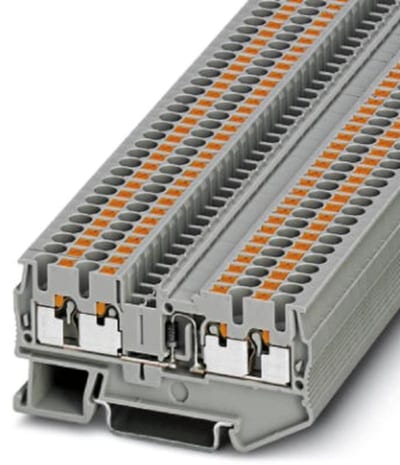

Component Terminal Block (PT 2,5-QUATTRO-DIO/R-L)
