Power supply TRIO-PS-2G/1AC/24DC/20
Pricing
Request a quote
We reply within 24 hours
Product Description

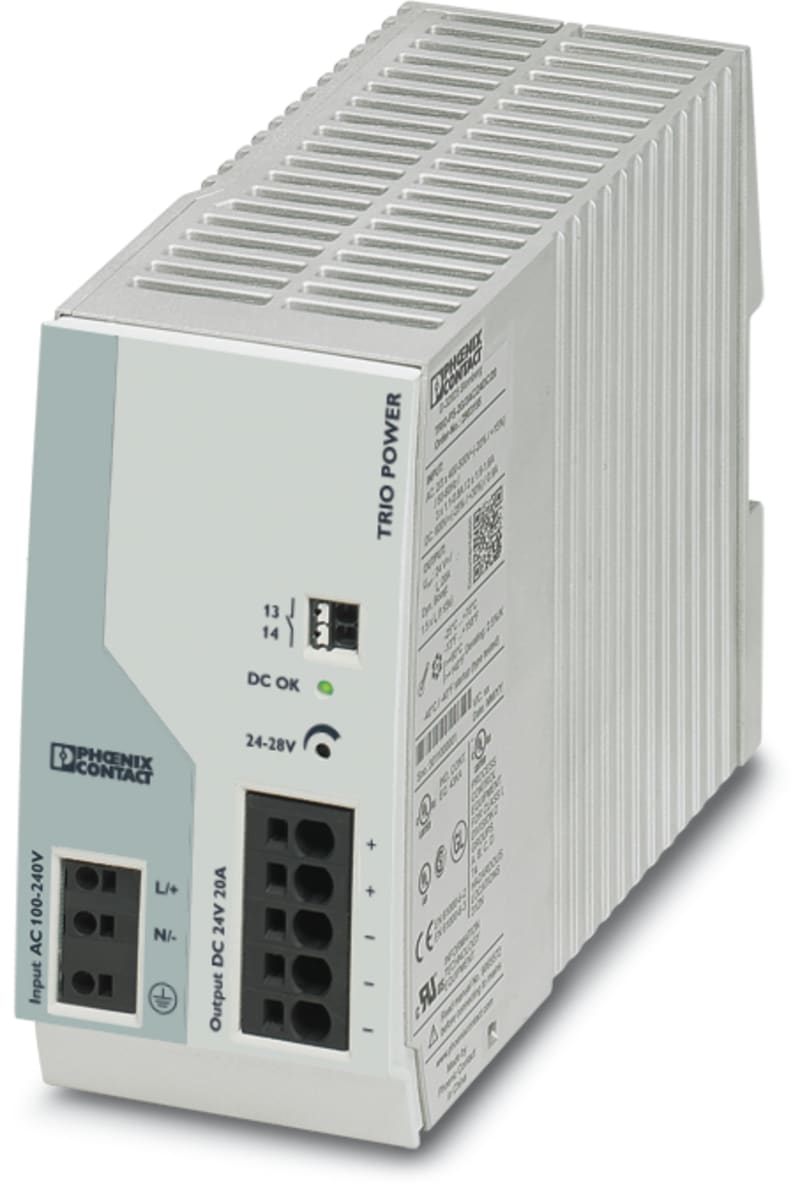

Phoenix Contact TRIO-PS-2G/1AC/24DC/20 Primary-switched power supply TRIO POWER with push-in-connection for rail mounting, input single-phase, output 24 V DC / 20 A.
Technical Specifications
- Manufacturer part number (MPN)
- TRIO-PS-2G/1AC/24DC/20 EAN / GTIN: 4046356960939 Sales unit: pcs Product type: Power Supply Unit Manufacturer order number: 2903151 Voltage type (supply voltage): AC/DC 1st secondary output voltage: 24–28 V 2nd secondary output voltage: 24 V Max. output current 1: 30 A Max. output current 2: 30 A Secondary voltage adjustable: Yes Nominal value output voltage 1: 24 V Nominal value output current 1: 20 A Short-circuit-proof: Yes Rated supply voltage AC 50 Hz: 100–240 V Rated supply voltage AC 60 Hz: 100–240 V Rated supply voltage DC: 110–275 V Output voltage stabilized: Yes Power consumption: 534.7 VA Power output: 480 W Stabilized: Yes Suitable for rail mounting: Yes Wall mounting possible: No Suitable for distribution board: No Width in number of modular spacings: 1 Built-in width: 68 mm Built-in height: 130 mm Direct mounting possible: No Width: 68 mm Height: 130 mm Depth: 160 mm Suitable for safety functions: Yes SIL according to IEC 61508: None Performance level according to EN ISO 13849-1: None Degree of protection (IP): IP20 Suitable for wall mounting: No Country of origin: China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4046356960939
- SAP 1000724311
- Code 8286251
Product Documentation
