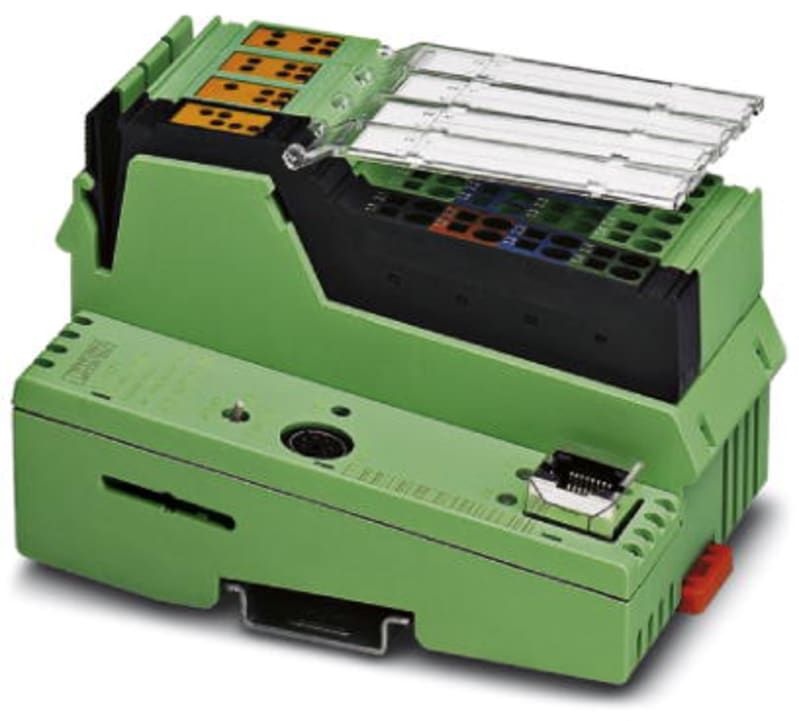

Phoenix Contact ILC 131 ETH Inline Controller with PROFINET and Modbus/TCP
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact ILC 131 ETH is a modular Inline controller (order number 2700973) that opens for communication over PROFINET and Modbus/TCP as well as INTERBUS. The controller carries eight digital inputs and four digital outputs on board, addresses up to 63 additional analogue and 63 digital I/O points on the local bus, and stores its program in 192 kByte non-volatile RAM. The housing measures 80 x 120.4 x 70.23 mm for DIN-rail mounting in machine control cabinets.
Technical Specifications
- Manufacturer part number (MPN)
- ILC 131 ETH
- EAN / GTIN
- 4046356665490
- Sales unit
- pcs
- Product type
- Controller
- Manufacturer order number
- 2700973
- Width
- 80 mm
- Model
- Modular
- Height
- 120.4 mm
- Depth
- 70.23 mm
- With display
- No
- Suitable for safety functions
- No
- Number of digital inputs
- 8
- Number of digital outputs
- 4
- Voltage type (supply voltage)
- DC
- Type of memory
- NVRAM
- Memory size
- 192 kByte
- Processing time (1K, binary operation)
- 0.002 ms
- Max. number of addressable analogue I/O-ports
- 63
- Max. number of addressable digital I/O-ports
- 63
- Supporting protocol for LON
- No
- Number of HW-interfaces industrial Ethernet
- 1
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Additional program memory possible
- Yes
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- Yes
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- Redundancy
- No
- Suitable for rail mounting
- Yes
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- System accessory
- Yes
- Appendant operation agent (Ex ia)
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Front built-in possible
- No
- Rack-assembly possible
- No
- Wall mounting/direct mounting
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- IO link master
- No
- Performance level according to EN ISO 13849-1
- None
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supply voltage AC 50 Hz
- 19.2–30 V
- Supply voltage AC 60 Hz
- 19.2–30 V
- Supply voltage DC
- 19.2–30 V
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- SIL according to IEC 61508
- None
- Supporting protocol for EtherCAT
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4046356665490
- SAP 1000329081
- Code 8858646
Product Documentation
More from Phoenix Contact
Phoenix Contact
Cable TRUNKING, BLUE, B 40 MM, H 80 MM
1216393
Phoenix Contact
Marking Strip ZB10 LGS 1-10
ZB10,LGS: 1-10
Phoenix Contact
Phoenix Contact UK 5-MTK Screw Terminal Block 0.2-6 mm²
UK 5-MTK
Phoenix Contact
End ferrule - AI 0,75- 6 GY
AI 0,75- 6 GY
Phoenix Contact
Connection Terminal EX 0,5-4 BLUE
0421061
Phoenix Contact
Double-Level Terminal Block (PTTB 2,5 BU)
Phoenix Contact
Knife-Disconnect Terminal Block (UDMTK 5-P/P)
Phoenix Contact
Redundancy Module (QUINT-DIODE/48DC/2X20/1X40)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
