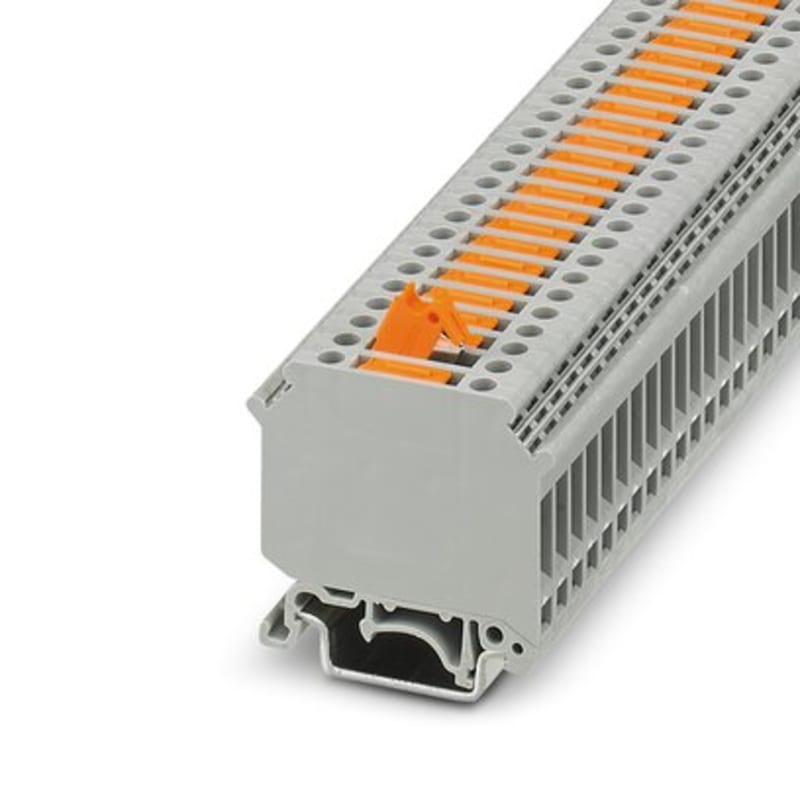

Phoenix Contact UK 5-MTK Screw Terminal Block 0.2-6 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact UK 5-MTK screw-connection terminal block for conductors 0.2-6 mm² solid or 0.2-1.5 mm² multi-wired. Rated 16 A / 500 V, one level with two clamp positions, DIN top-hat 35 mm mounting, grey. Operating temperature -60 to +105 °C; delivered in packs of 50.
Technical Specifications
- Manufacturer part number (MPN)
- UK 5-MTK
- EAN / GTIN
- 4017918090791
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Connectable conductor cross section solid-core
- 0.2–6 mm²
- Connectable conductor cross section multi-wired
- 0.2–1.5 mm²
- Rated current In
- 16 A
- Rated voltage
- 500 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Internally connected stages
- Yes
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–105 °C
- Width
- 6.2 mm
- Width/grid dimension
- 6.2 mm
- Height
- 51 mm
- Depth
- 58.5 mm
- Closing plate required
- No
- Colour
- Grey
- Type of cross disconnection
- None
- With integrated test socket
- No
- Length
- 51 mm
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017918090791
- SAP 1000235364
- Code 81290633
Product Documentation
More from Phoenix Contact
Phoenix Contact

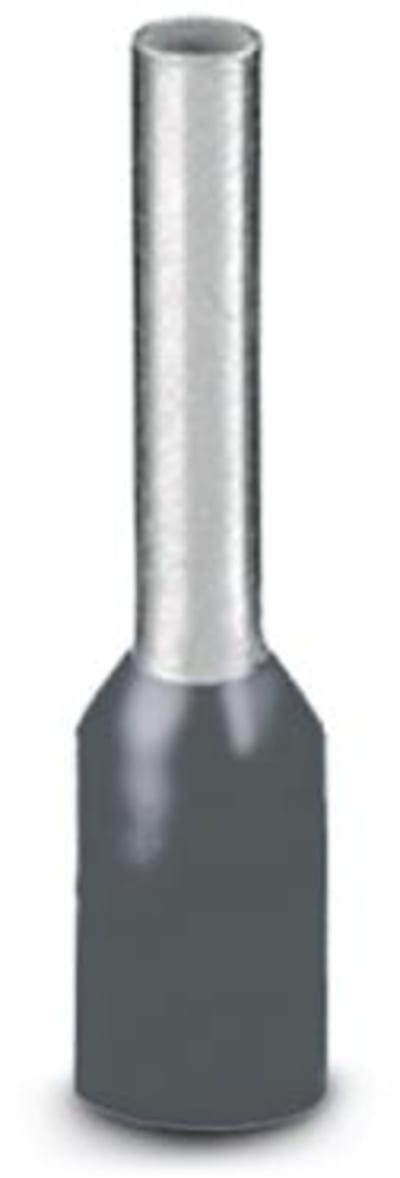

End ferrule - AI 0,75- 6 GY
AI 0,75- 6 GY
Phoenix Contact

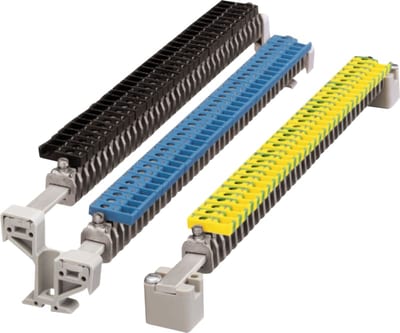

Connection Terminal EX 0,5-4 BLUE
0421061
Phoenix Contact

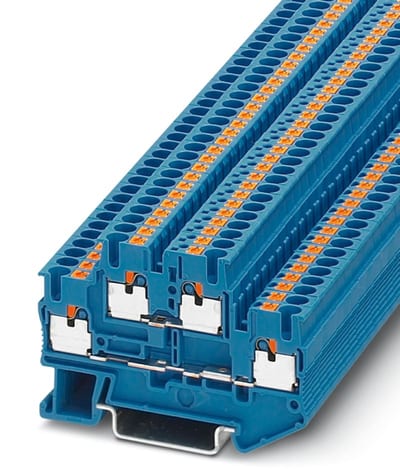

Double-Level Terminal Block (PTTB 2,5 BU)
Phoenix Contact

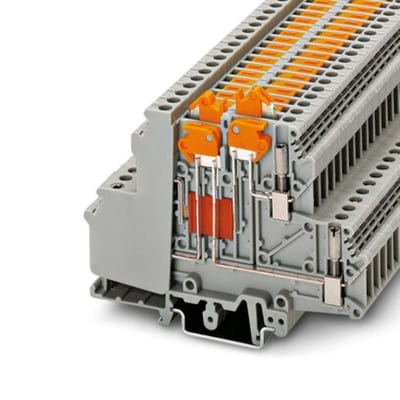

Knife-Disconnect Terminal Block (UDMTK 5-P/P)
Phoenix Contact

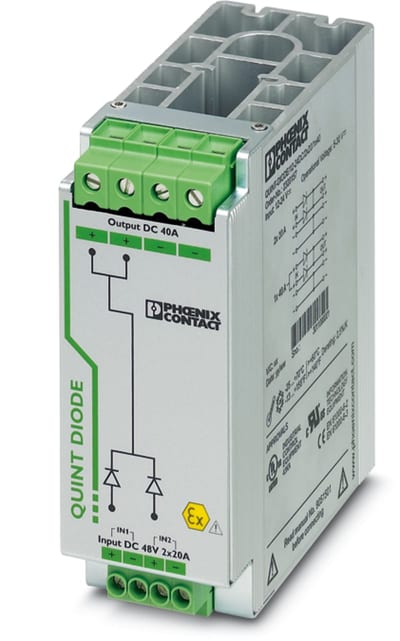

Redundancy Module (QUINT-DIODE/48DC/2X20/1X40)
Phoenix Contact

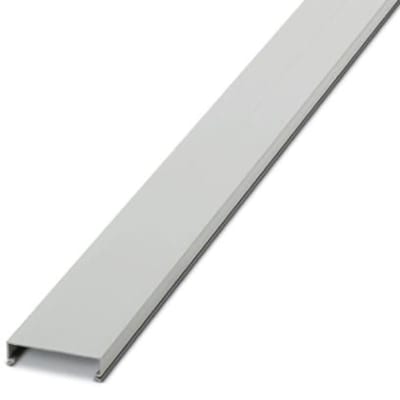

Cover FOR CABLE TRUNKING, LYS GREY, B 60 MM
1216386
Phoenix Contact

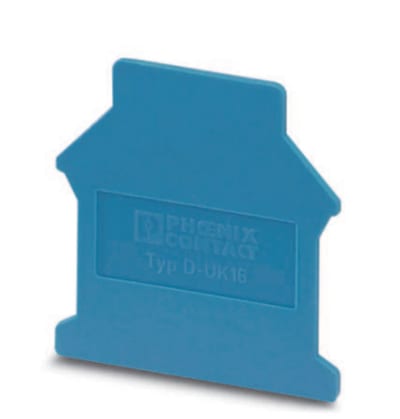

End Cover (D-UK 16 BU)
Phoenix Contact

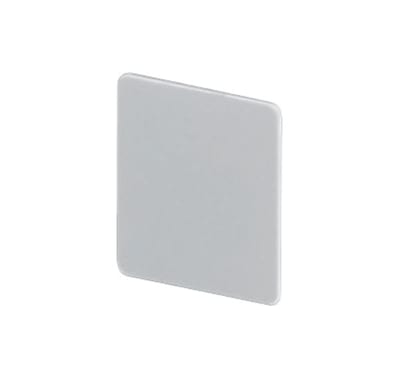

Separating Plate (TS-KK 3)
