Phoenix Contact

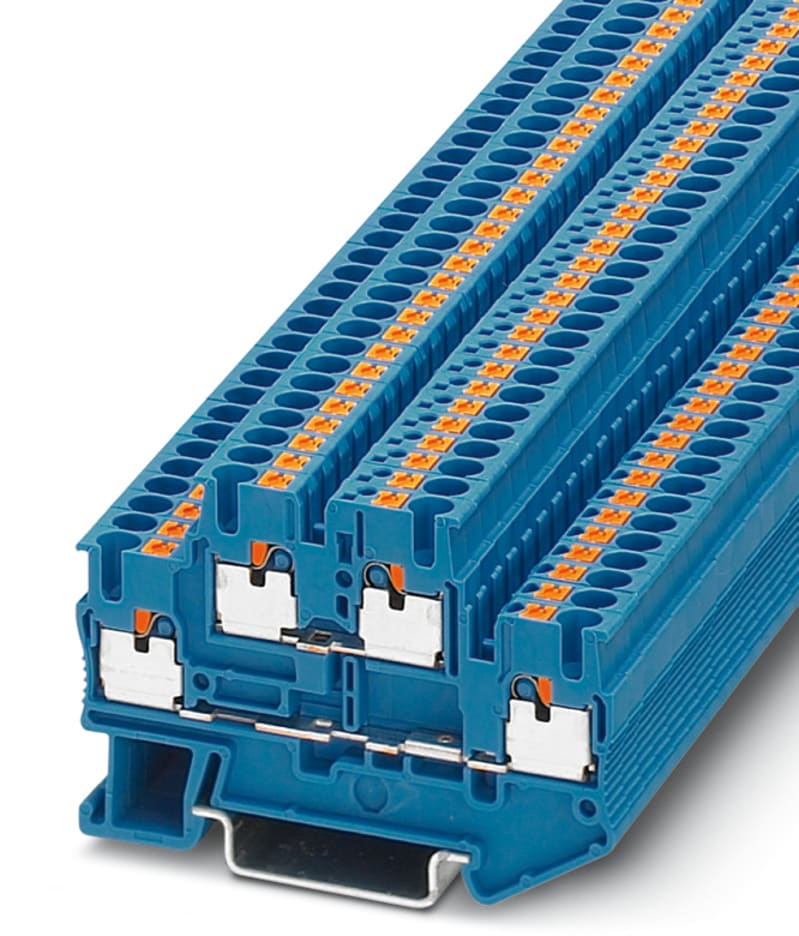

Double-Level Terminal Block (PTTB 2,5 BU)
Part numberPTTB 2,5 BUEAN / GTIN4046356418997HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact PTTB 2,5 BU.
Technical Specifications
- Manufacturer part number (MPN)
- PTTB 2,5 BU
- EAN / GTIN
- 4046356418997
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Product type
- Double-Level Terminal Block
- Manufacturer order number
- 3210570
- Suitable for conductor material
- Aluminium/copper
- Connectable conductor cross section solid-core
- 0.14–4 mm²
- Connectable conductor cross section multi-wired
- 0.14–2.5 mm²
- Rated current In
- 22 A
- Rated voltage
- 500 V
- Connection position
- Atop
- Number of levels
- 2
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Operating temperature
- -60–105 °C
- Width
- 5.2 mm
- Width/grid dimension
- 5.2 mm
- Height
- 68 mm
- Depth
- 45.8 mm
- Length
- 68 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Blue
- Internally connected stages
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4046356418997
- SAP 1000257753
- Code 8142118
Product Documentation
Document preview: Double-Level Terminal Block (PTTB 2,5 BU) — Specification sheet
