Signal Conditioner (MINI MCR-SL-UI-UI-NC)
Pricing
Request a quote
We reply within 24 hours
Product Description

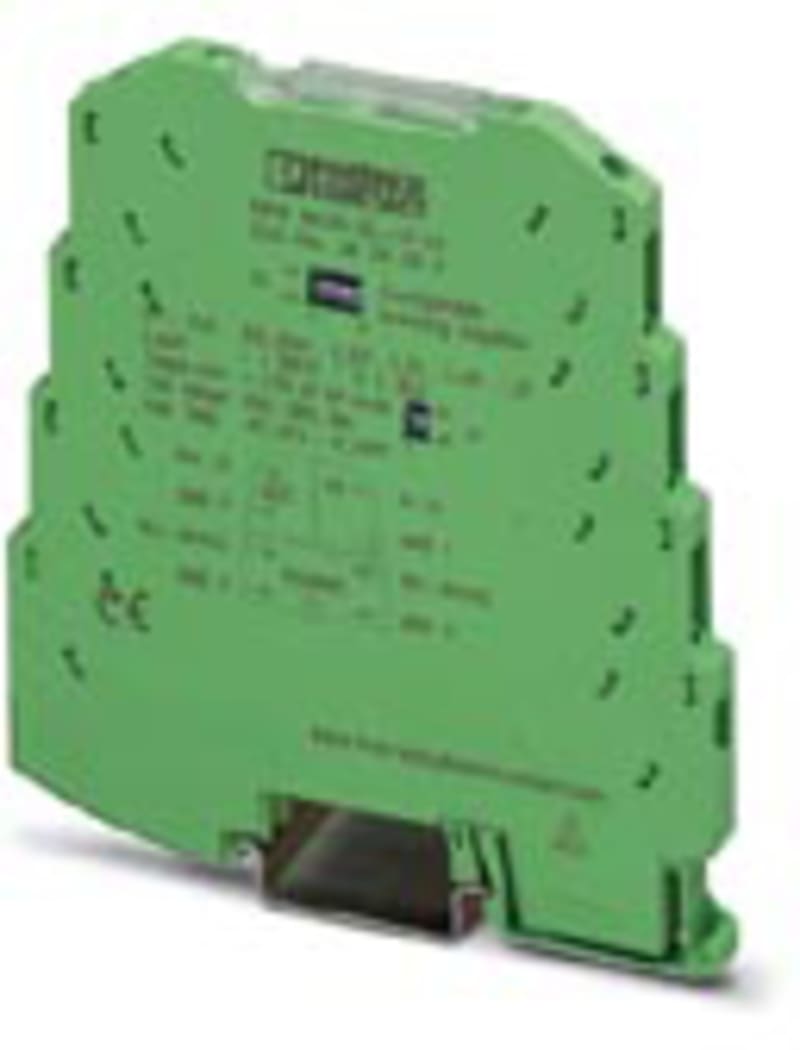

PHOENIX CONTACT ISOLATING AMPLIFIER Type: MINI MCR-SL-UI-UI-NC.
Technical Specifications
- Manufacturer part number (MPN)
- MINI MCR-SL-UI-UI-NC
- EAN / GTIN
- 4017918956615
- Sales unit
- pcs
- Product type
- Signal Conditioner
- Manufacturer order number
- 2864150
- Rated supply voltage DC
- 19.2–30 V
- Number of input ranges 0 V ... 5 V
- 1
- Number of input ranges 0 V ... 10 V
- 1
- Number of input ranges 1 V ... 5 V
- 1
- Number of input ranges 2 V ... 10 V
- 1
- Number of input ranges 0 mA ... 20 mA
- 1
- Number of input ranges 4 mA ... 20 mA
- 1
- Number of output ranges 0 V ... 5 V
- 1
- Number of output ranges 0 V ... 10 V
- 1
- Number of output ranges 1 V ... 5 V
- 1
- Number of output ranges 2 V ... 10 V
- 1
- Number of output ranges 0 mA ... 20 mA
- 1
- Number of output ranges 4 mA ... 20 mA
- 1
- Switching power
- 0.45 VA
- Number of channels
- 1
- Malfunction message output
- No
- Inherently safe according to EN 60947-5-6 NAMUR
- No
- Galvanic separation between inputs
- No
- Galvanic separation between input and output
- Yes
- Galvanic separation between output to output
- No
- SIL according to IEC 61508
- None
- Height
- 93.1 mm
- Width
- 6.2 mm
- Depth
- 101.2 mm
- Power consumption
- 0.45 W
- Load
- 500–10000 Ohm
- Operating temperature
- -20–65 °C
- Temperature drift
- 0.01 %/K
- Construction type of device
- Built-in device
- Type of electric connection
- Screw connection
- Mounting method
- Snap mounting support rail
- Degree of protection (IP)
- IP20
- Device construction
- Built-in device
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 4017918956615
- SAP 1000329171
- Code 8359335
Product Documentation
