Phoenix Contact

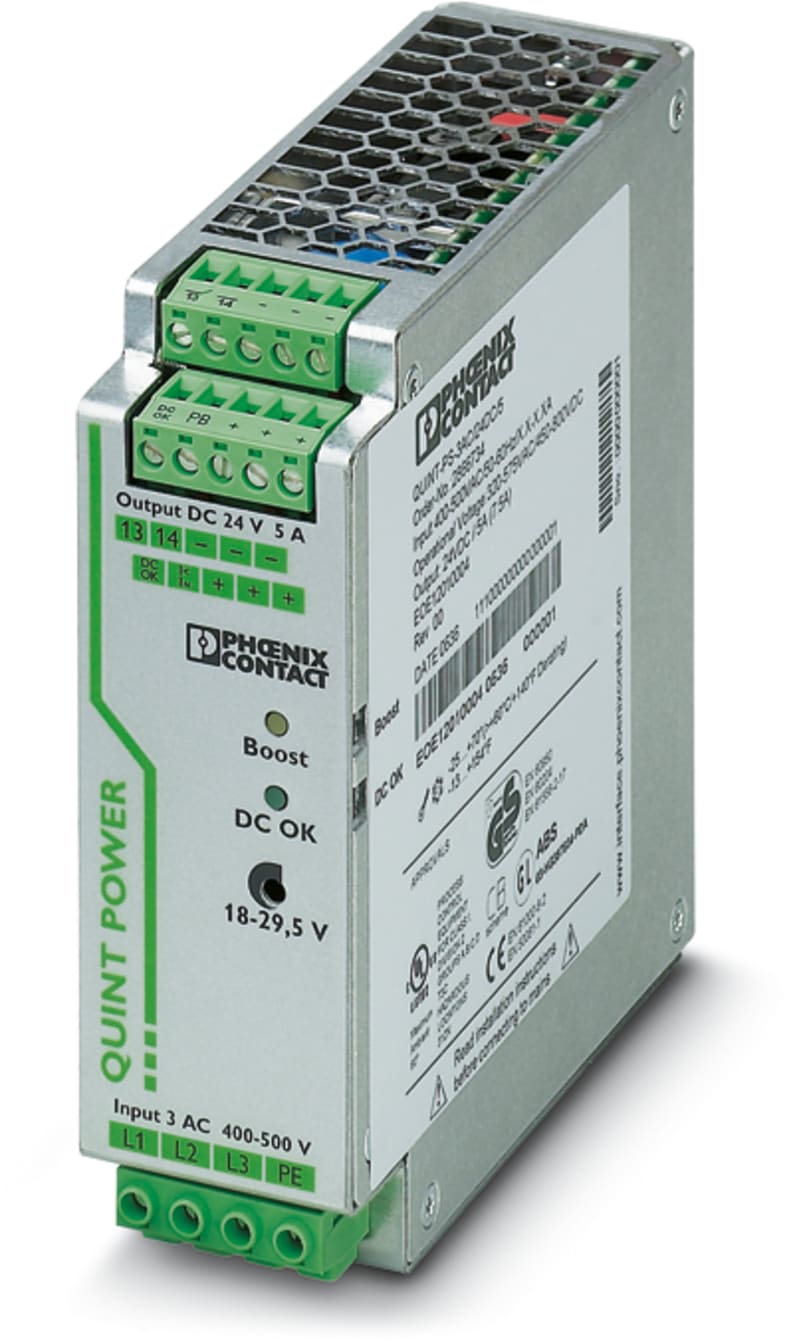

3-Phase power supply 24VDC/5A
Part numberQUINT-PS/3AC/24DC/ 5EAN / GTIN4046356155441HS code8504.40
Control & Automation
Power Supplies
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact QUINT-PS/3AC/24DC/ 5 QUINT-PS/3AC/24DC/5.
Technical Specifications
- Manufacturer part number (MPN)
- QUINT-PS/3AC/24DC/ 5
- EAN / GTIN
- 4046356155441
- Sales unit
- pcs
- Voltage
- 24 V DC
- Product type
- Power Supply Unit
- Manufacturer order number
- 2866734
- Voltage type (supply voltage)
- AC/DC
- 1st secondary output voltage
- 18–29.5 V
- 2nd secondary output voltage
- 18 V
- Max. output current 1
- 7.5 A
- Max. output current 2
- 7.5 A
- Max. output current 3
- 30 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 5 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 400–500 V
- Rated supply voltage AC 60 Hz
- 400–575 V
- Rated supply voltage DC
- 450–800 V
- Output voltage stabilized
- Yes
- Power consumption
- 268 VA
- Power output
- 120 W
- Stabilized
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- No
- Width in number of modular spacings
- 2.2
- Built-in width
- 40 mm
- Built-in height
- 130 mm
- Direct mounting possible
- No
- Width
- 40 mm
- Height
- 130 mm
- Depth
- 125 mm
- Suitable for safety functions
- Yes
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4046356155441
- SAP 1000235790
- Code 81290782
Product Documentation
Document preview: 3-Phase power supply 24VDC/5A (QUINT-PS/3AC/24DC/ 5) — Specification sheet
More from Phoenix Contact

Phoenix Contact
CURRENTFORS. STEP3-PS/1AC/5DC/3/PT/USB-C (1335698)

Phoenix Contact
N-Disconnect Terminal Block
UIKN 16 BU

Phoenix Contact
CABLE TRUNKING, LIGHT GREY, B 40 MM, H 60 MM
CD-HF 40X60

Phoenix Contact
Marking Strip ZB 5 Lgs: PE
1050091:PE

Phoenix Contact
Socket outlet EO-CF/UT/LED/GN

Phoenix Contact
Relay Module (RIF-1-RPT-LDP-24DC/2X21)

Phoenix Contact
Signal Conditioner (MINI MCR-2-UI-UI)

Phoenix Contact
Miniature-Solid-State-relay (OPT-24DC/ 24DC/ 2)
OPT-24DC/ 24DC/ 2
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy QUINT-PS/3AC/24DC/ 5?
- QUINT-PS/3AC/24DC/ 5 can be ordered from cballast.com as a Phoenix Contact catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Phoenix Contact product?
- The manufacturer part number is QUINT-PS/3AC/24DC/ 5.
- What is the HS code for QUINT-PS/3AC/24DC/ 5?
- The customs tariff (HS) code for QUINT-PS/3AC/24DC/ 5 is 8504.40.
- Who manufactures QUINT-PS/3AC/24DC/ 5?
- QUINT-PS/3AC/24DC/ 5 is a Phoenix Contact product in the Control & Automation range.
- Is a datasheet available for QUINT-PS/3AC/24DC/ 5?
- Yes — the QUINT-PS/3AC/24DC/ 5 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for QUINT-PS/3AC/24DC/ 5?
- The minimum order quantity is 1.
- Is QUINT-PS/3AC/24DC/ 5 available?
- Yes — QUINT-PS/3AC/24DC/ 5 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
