Phoenix Contact SACC-M12FS-5PL M Straight M12 Socket, 5-Pole, A-Coded
Pricing
Request a quote
We reply within 24 hours
Product Description

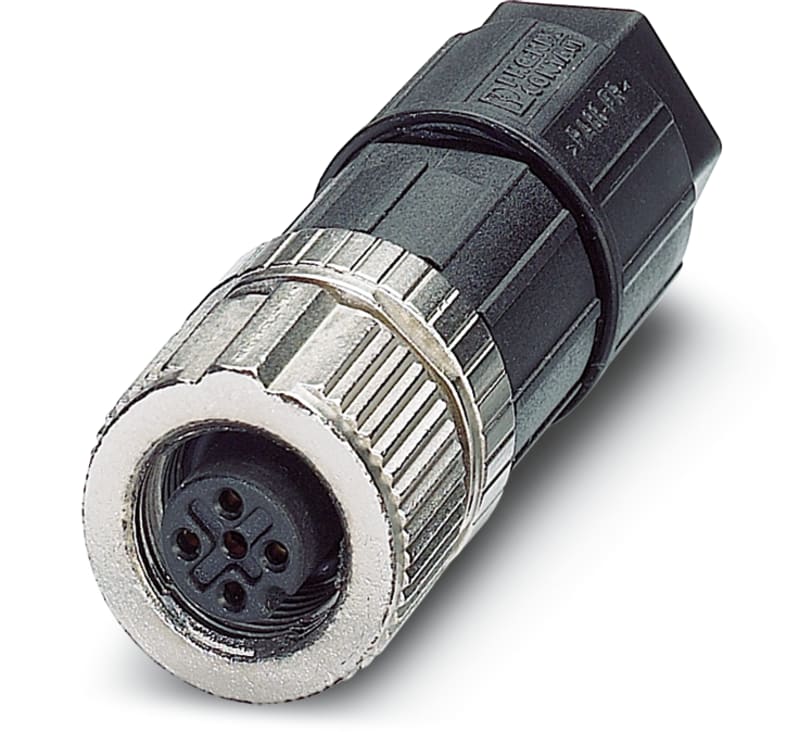

The Phoenix Contact SACC-M12FS-5PL M is a universal 5-pole M12 straight socket connector with A-coding and nickel-plated contacts. It accepts cable outer diameters from 4 to 8 mm, is rated 4 A at 48 V and is IP65 when mated. Typical uses include sensor and actuator wiring on industrial machinery and automation systems.
Technical Specifications
- Manufacturer part number (MPN)
- SACC-M12FS-5PL M
- EAN / GTIN
- 4055626374994
- Sales unit
- pcs
- Product type
- Connector
- Manufacturer order number
- 1424652
- Diameter connector
- 19 mm
- Thread size M
- 12
- Number of control contacts
- 5
- For cable outer diameter
- 4–8 mm
- Type of housing
- Straight
- Rated current In
- 4 A
- Rated voltage
- 48 V
- Overvoltage category
- II
- Pollution degree
- 3
- Material of contact surface
- Nickel
- With interlocking device
- Yes
- Housing material
- Plastic
- With protective conductor
- No
- Degree of protection (IP), mounted
- IP65
- Min. number of insertion cycles
- 100
- Screened
- No
- With status indication
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4055626374994
- SAP 1200069827
- Code 81911909
Product Documentation
