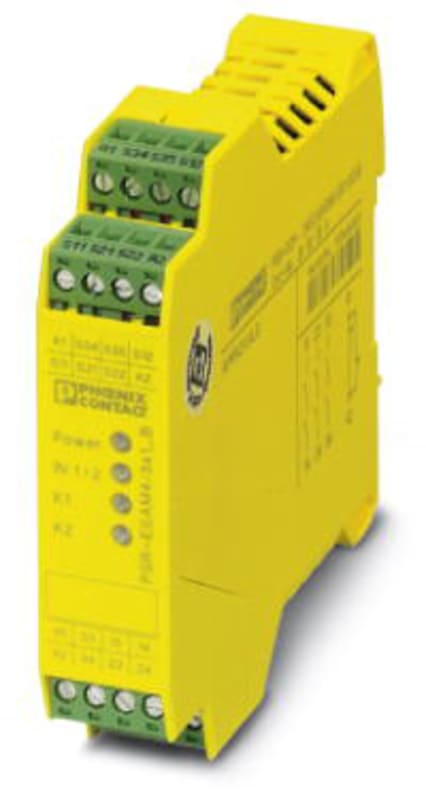

Safety Relay (PSR-SCP- 24UC/ESAM4/3X1/1X2/B)
Pricing
Request a quote
We reply within 24 hours
Product Description
Safety relay for emergency-stop and safety-door monitoring, up to SIL3 or Cat. 4.
Technical Specifications
- Manufacturer part number (MPN)
- PSR-SCP- 24UC/ESAM4/3X1/1X2/B
- EAN / GTIN
- 4046356513579
- Sales unit
- pcs
- Product type
- Safety Relay
- Manufacturer order number
- 2900509
- Model
- Basic device
- Suitable for monitoring of position switches
- Yes
- Suitable for monitoring of emergency-stop circuits
- Yes
- Suitable for monitoring of valves
- No
- Suitable for monitoring of tactile sensors
- No
- Suitable for monitoring of magnetic switches
- Yes
- Suitable for monitoring of proximity switches
- No
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Rated control supply voltage AC 50 Hz
- 24 V
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- AC/DC
- With detachable clamps
- Yes
- With start input
- No
- With muting function
- No
- With feedback circuit
- Yes
- Release-delay
- 0.15–0.25 s
- Performance level according to EN ISO 13849-1
- Level e
- SIL according to IEC 61508
- 3
- With approval for BG BIA
- No
- With approval according to UL
- No
- Width
- 22.5 mm
- Height
- 99 mm
- Depth
- 114.5 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4046356513579
- SAP 1000656753
- Code 8226093
