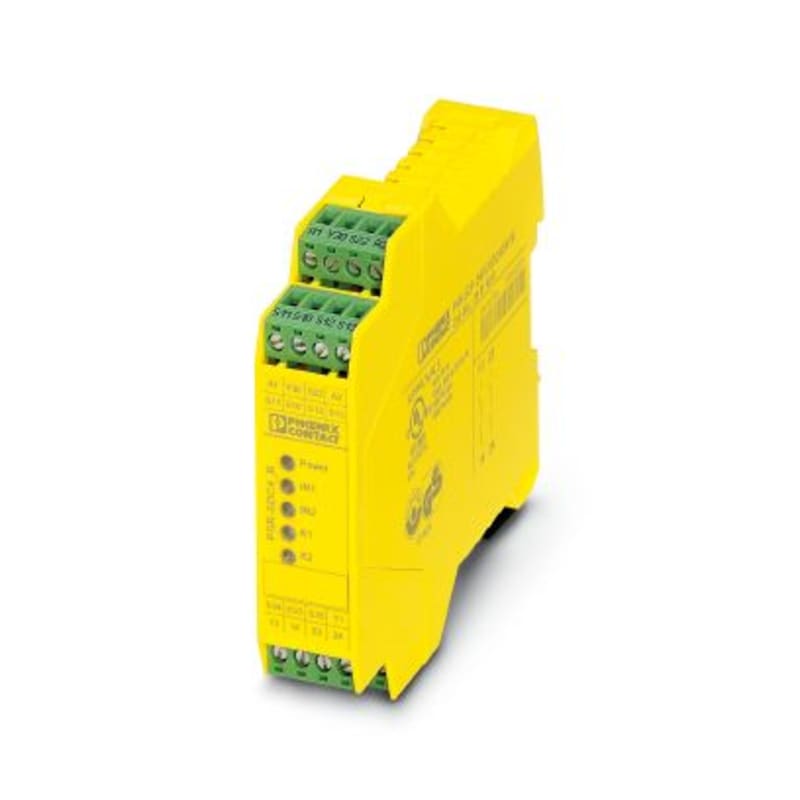

Safety Relay (PSR-SCP- 24DC/SDC4/2X1/B)
Pricing
Request a quote
We reply within 24 hours
Product Description
Phoenix Contact PSR-SCP- 24DC/SDC4/2X1/B PSR-SCP- 24DC/SDC4/2X1/B.
Technical Specifications
- Manufacturer part number (MPN)
- PSR-SCP- 24DC/SDC4/2X1/B
- EAN / GTIN
- 4046356051682
- Sales unit
- pcs
- Product type
- Safety Relay
- Manufacturer order number
- 2981486
- Model
- Basic device
- Suitable for monitoring of position switches
- Yes
- Suitable for monitoring of emergency-stop circuits
- Yes
- Suitable for monitoring of valves
- No
- Suitable for monitoring of tactile sensors
- No
- Suitable for monitoring of magnetic switches
- Yes
- Suitable for monitoring of proximity switches
- No
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- Rated control supply voltage AC 50 Hz
- 24 V
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- DC
- With detachable clamps
- Yes
- With start input
- No
- With muting function
- No
- With feedback circuit
- Yes
- Release-delay
- 0.02 s
- Performance level according to EN ISO 13849-1
- Level e
- SIL according to IEC 61508
- 3
- With approval for BG BIA
- No
- With approval according to UL
- No
- Width
- 22.5 mm
- Height
- 99 mm
- Depth
- 114.5 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4046356051682
- SAP 1000657260
- Code 8477682
Product Documentation
More from Phoenix Contact
Phoenix Contact
Knife-Disconnect Terminal Block (PT 2,5-Mt BU)
PT 2,5-MT BU
Phoenix Contact
Ground Modular Terminal Block (USLKG 10 N)
Phoenix Contact
Phoenix Contact SUBCON 9/M-SH 9-Pole D-Sub Bus Connector Male
SUBCON 9/M-SH
Phoenix Contact
Feed-Through Terminal PT 6 BU
Phoenix Contact
Ground Modular Terminal Block (PTV 6-Pe)
PTV 6-PE
Phoenix Contact
End ferrule - AI-TWIN 2X 6 -14 YE
AI-TWIN 2X 6 -14 YE
Phoenix Contact
Phoenix Contact PLC-TR-1T-MUL-300M-PT Multifunction Timer Relay 6.2 mm
Phoenix Contact
Fuse Modular Terminal Block (ST 4-Hesila 250 (5X20))
ST 4-HESILA 250 (5X20)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy PSR-SCP- 24DC/SDC4/2X1/B?
- PSR-SCP- 24DC/SDC4/2X1/B can be ordered from cballast.com as a Phoenix Contact catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Phoenix Contact product?
- The manufacturer part number is PSR-SCP- 24DC/SDC4/2X1/B.
- What is the HS code for PSR-SCP- 24DC/SDC4/2X1/B?
- The customs tariff (HS) code for PSR-SCP- 24DC/SDC4/2X1/B is 8537.10.
- Who manufactures PSR-SCP- 24DC/SDC4/2X1/B?
- PSR-SCP- 24DC/SDC4/2X1/B is a Phoenix Contact product in the Safety & Detection range.
- Is a datasheet available for PSR-SCP- 24DC/SDC4/2X1/B?
- Yes — the PSR-SCP- 24DC/SDC4/2X1/B datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for PSR-SCP- 24DC/SDC4/2X1/B?
- The minimum order quantity is 1.
- Is PSR-SCP- 24DC/SDC4/2X1/B available?
- Yes — PSR-SCP- 24DC/SDC4/2X1/B is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
